14 Chapter 1
Introduction to Programming X-Series Applications
Communicating SCPI Using Telnet

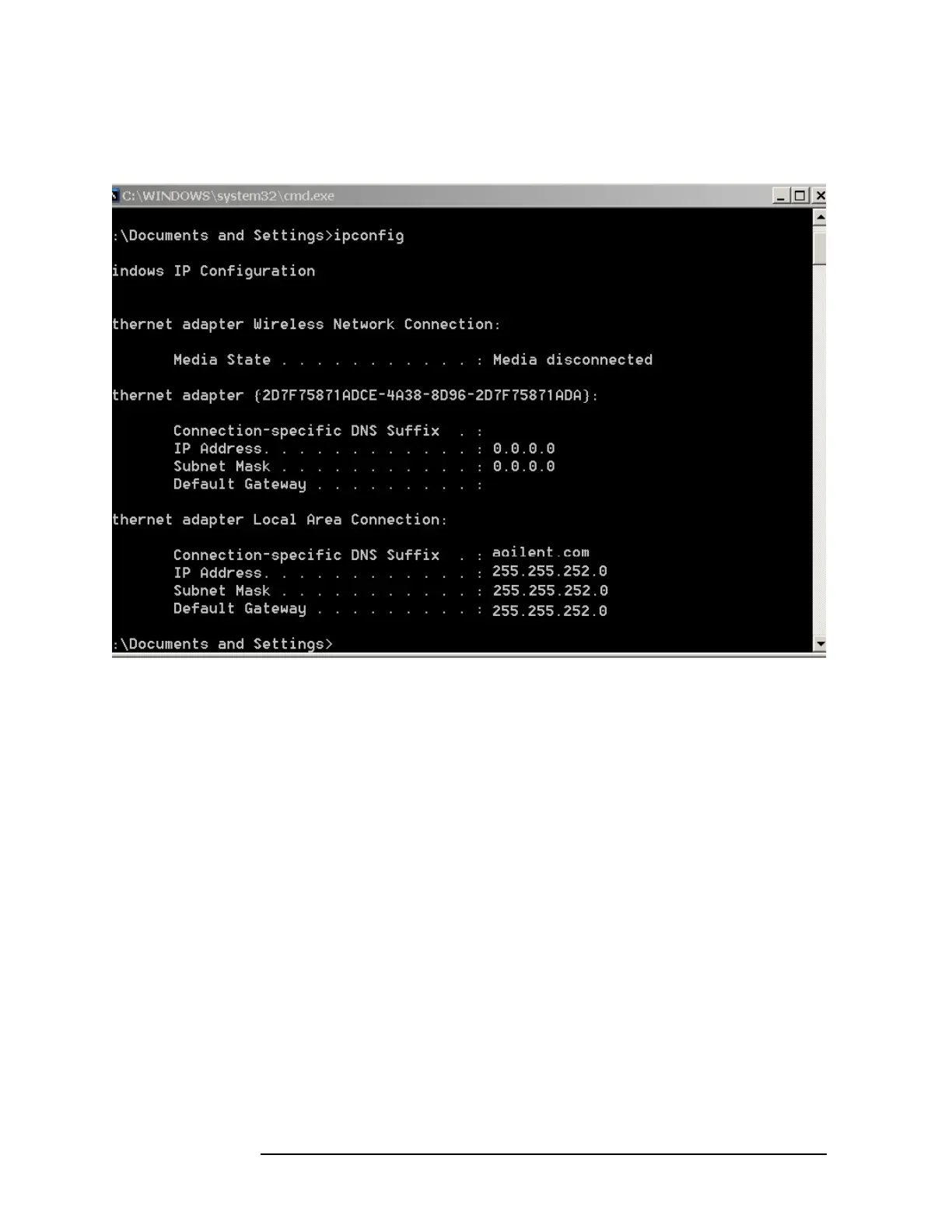

• Enter the DOS command “ipconfig”, and press Enter, and the results should resemble
the window shown below. The IP Address is given under Ethernet adapter Local Area
Connection.
Step 2. Make sure the analyzer Telnet socket is On
•Press
System, I/O Config, SCPI LAN, and make sure SCPI Telnet (Port 5023) is toggled to
On.
Step 3. Test your connection over the LAN
• On your PC using Microsoft Windows, in the Taskbar select
Start, Run, and enter “cmd”
to open a DOS session.
• Enter the DOS command “ping”, a single space and the IP address of the analyzer, and
press Enter, and the results should resemble the window shown below. If the LAN
connection is working, you will get statistics for Packets Sent and Packets Received.
