Agilent Technologies U1253B Quick Start Guide

U1253B Quick Start Guide

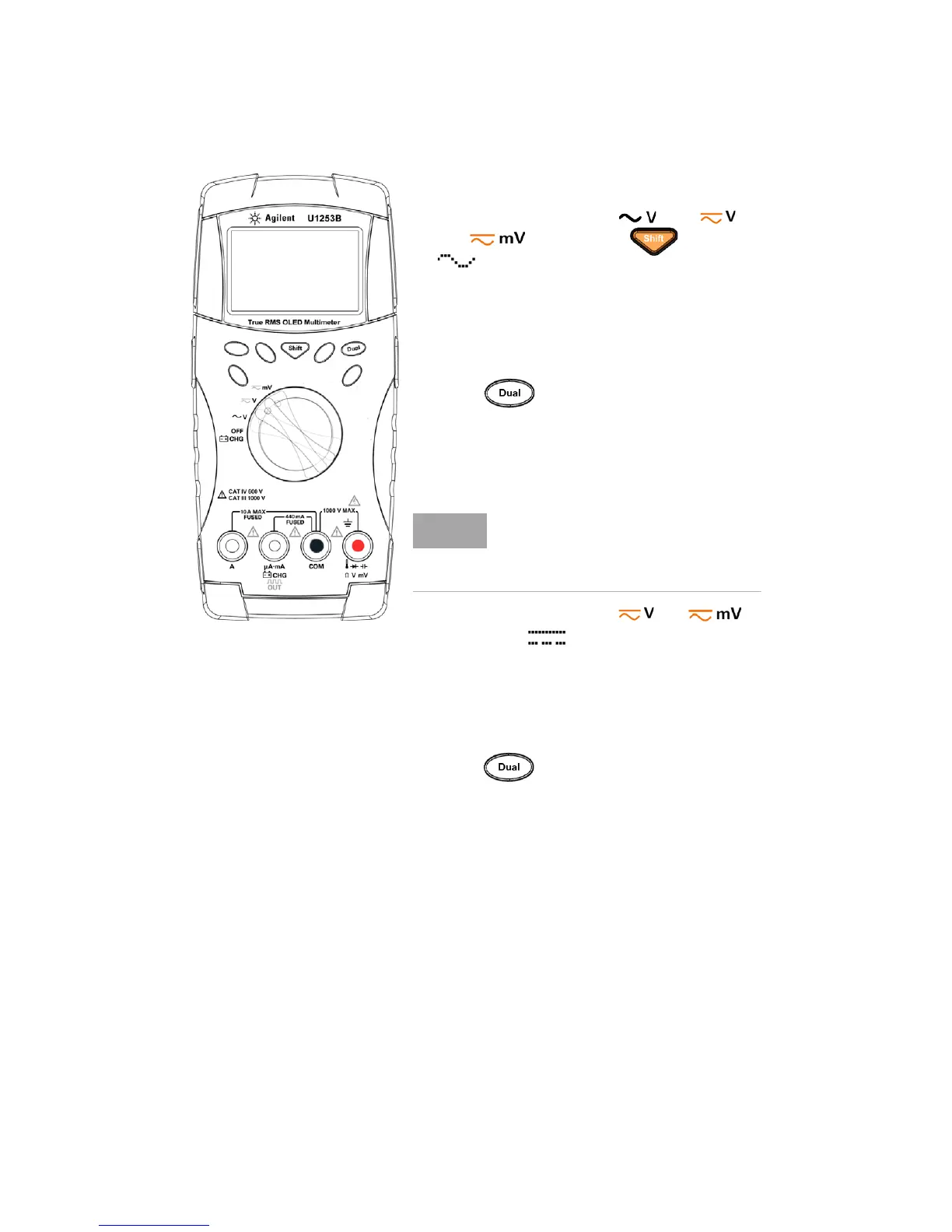

Performing Voltage Measurements
Measuring AC voltage
1 Set the rotary switch to . For
and mode, press to ensure
is shown on the display.
2 Connect the red and black test leads to
input terminals V. mV (red) and COM
(black) respectively.
3 Probe the test points and read the display.
4 Press to display dual
measurements. Parameter can be switched
consecutively.
Measuring DC voltage
1 Set the rotary switch to or .
Ensure that is shown on the display.
2 Connect the red and black test leads to
input terminals V. mV (red) and COM
(black) respectively.
3 Probe the test points and read the display.
4 Press to display dual
measurements. Parameter can be switched
consecutively.
NOTE
For measuring DC voltage from a
mixed signal in DC measurement
mode, ensure that the Filter is
enabled
