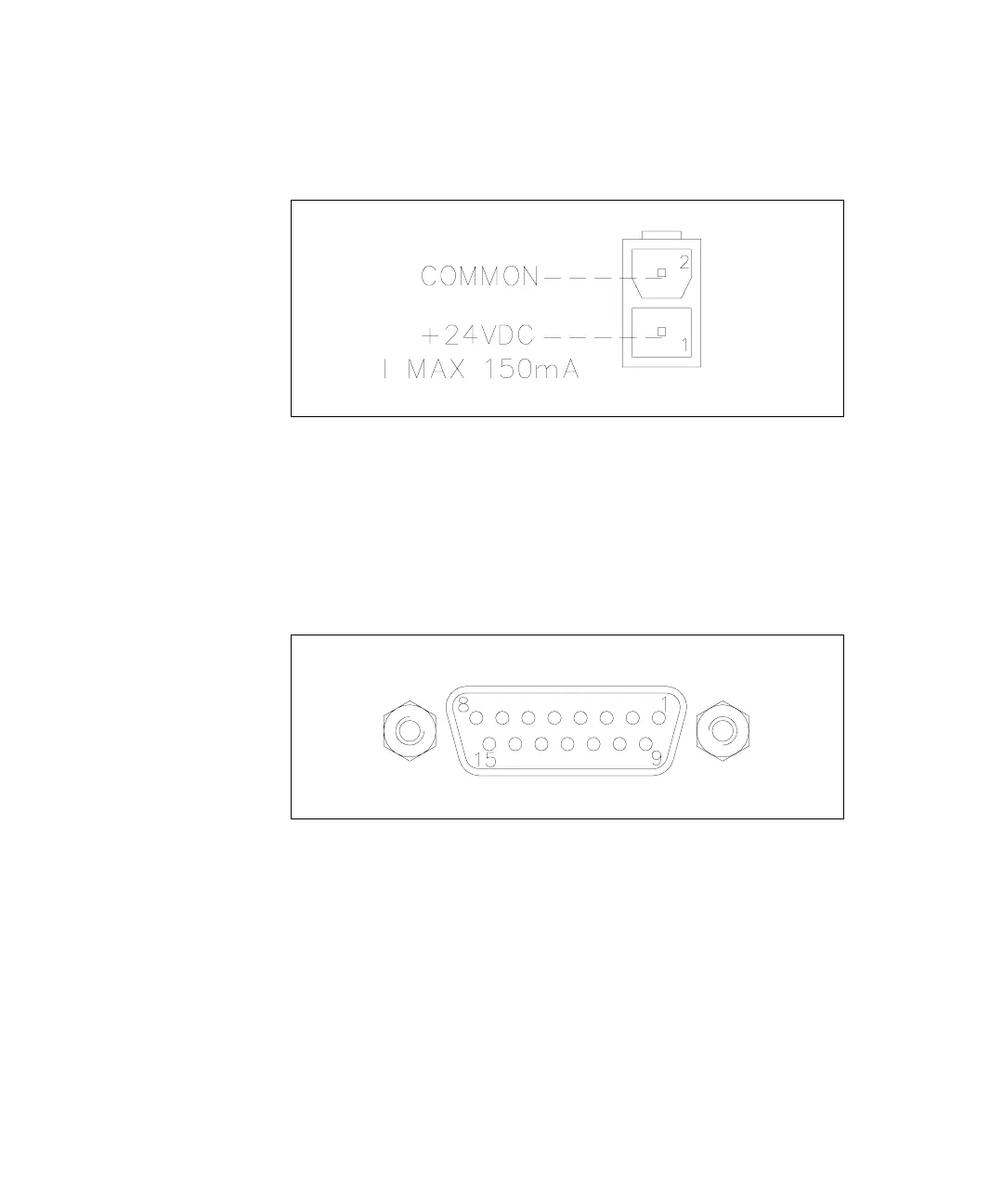

Figure 5 External fan
This is a dedicated 24 Vdc connector to supply the optional external fan.
J5 – In-Out
Figure 6 In-Out
This connector carries all the input and output signals to remote
control the TwisTorr 304 FS on board.
It is a 15-pins D type connector; the available signals are detailed in
the table, the following paragraphs describe the signal characteristics
and use.
Technical Information
Interconnections
17
TwisTorr 304 FS on board Controller User Manual / 87-901-028-01 (C) 149/178
P5 – External Fan
