Air Cooling Kit Installation
170/178 TwisTorr 304 FS on board Controller User Manual / 87-901-028-01 (C)
Air Cooling Kit Installation
TwissTorr 304 FS on board Controller
An air cooling kit (mod. X3500-68010) is available to improve the
TV 301 cooling during heavy operational conditions (optional).

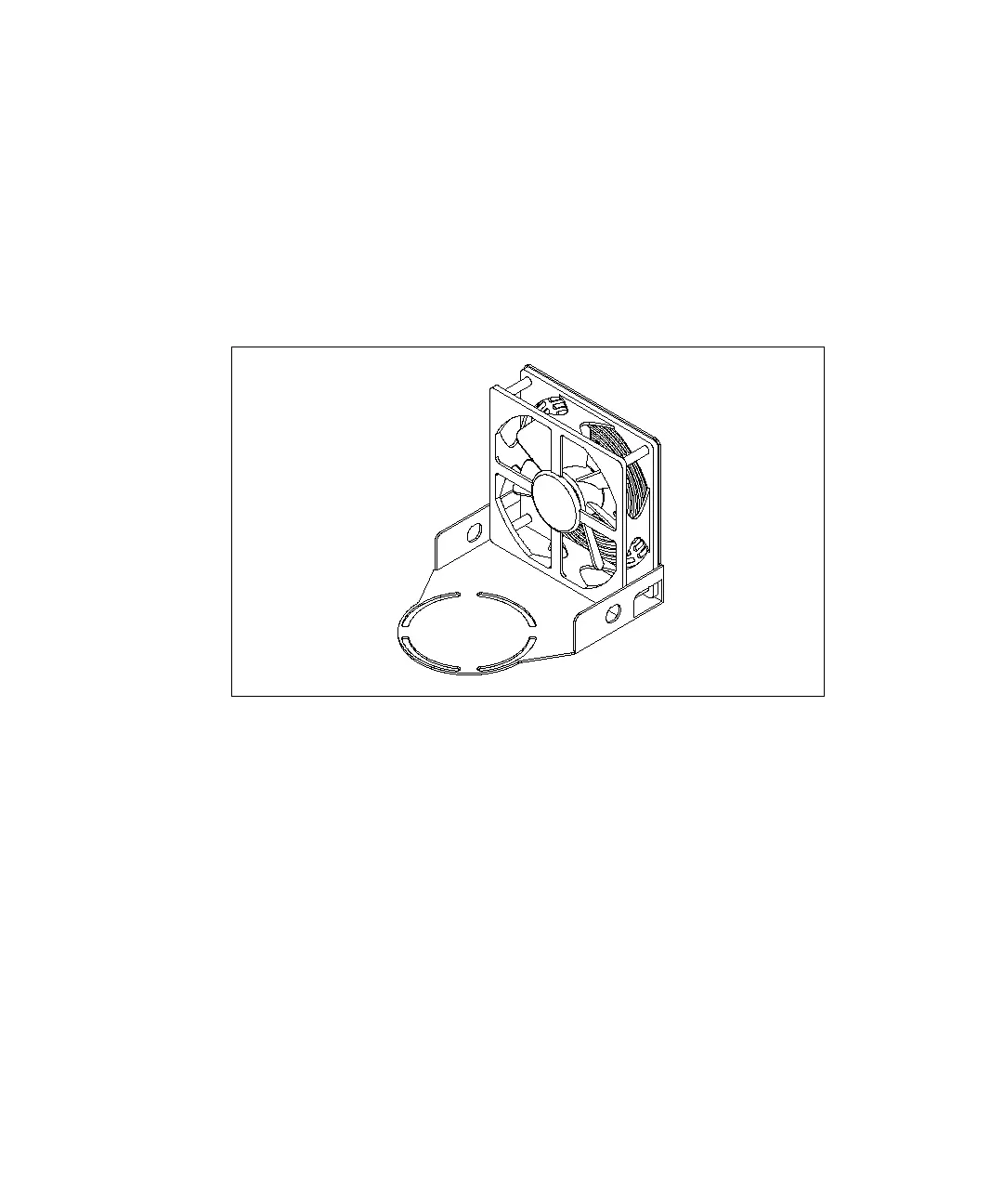

Figure 18
Fan specifications:
 air flow: 147 m
3
/h
 input voltage: 24 Vdc
 dimensions: 119 x 119 x 32 mm
 power: 2.6 W
The fan bracket is shaped so that it can be mounted close to the
pump. When the pump is supplied by the rack C.U. please utilize
the special fan extension cable 9699949.
To fix the fan to the TwissTorr 304 FS on board case execute the
following procedure (see the following figure):
