Technical Information
Input power connection on the model X3507-64002
160/178 TwisTorr 304 FS on board Controller User Manual / 87-901-028-01 (C)
Input power connection on the model X3507-64002

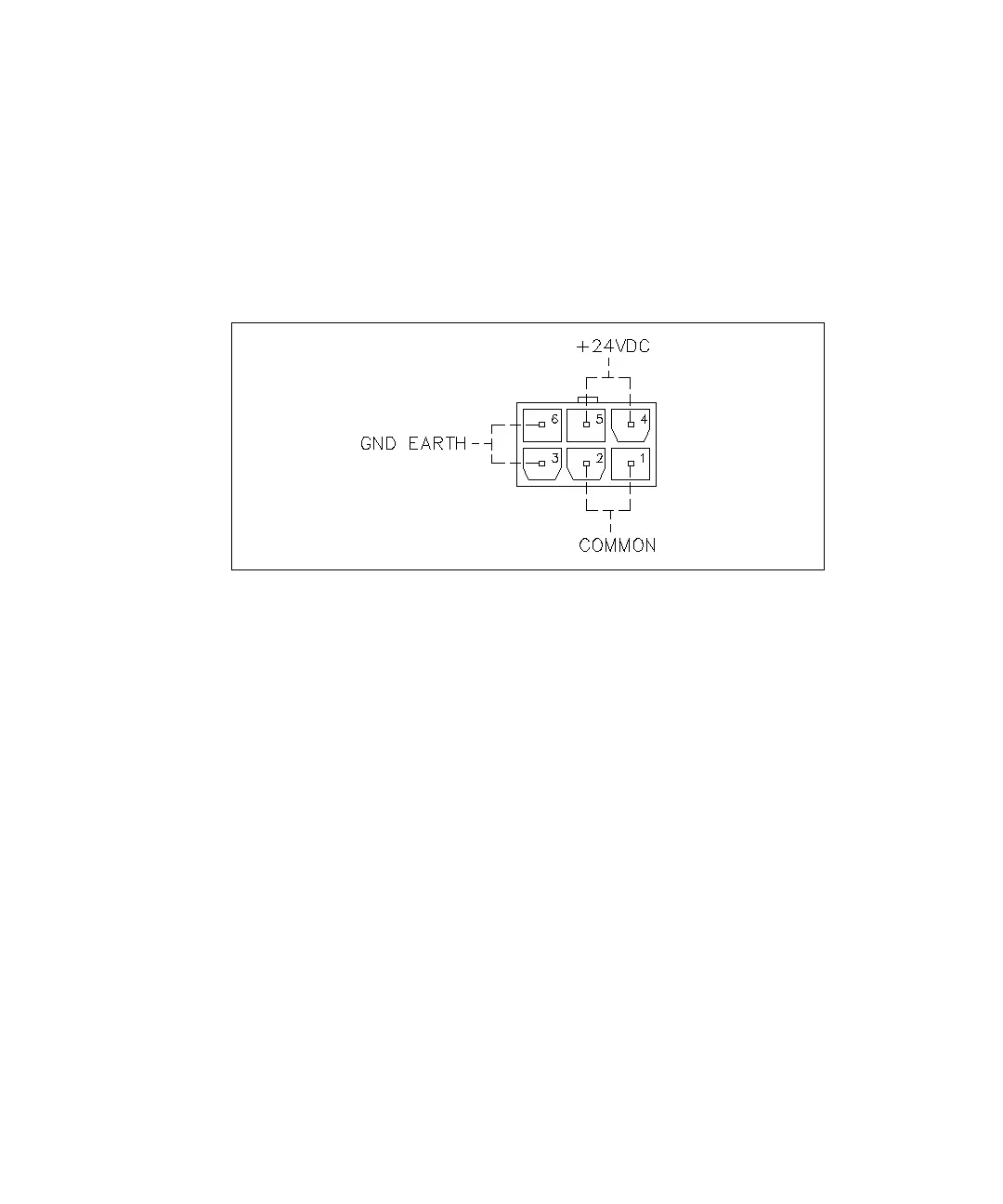

The following figure shows the input power connection relevant to
the model n. X3507-64002.
Figure 16
RS 232/RS 485 communication description
Both the RS 232 and the RS 485 interfaces are available on the
connector J6.
The communication protocol is the same (see the structure below),
but only the RS 485 manages the address field. Therefore to enable
the RS 485 is necessary to select the type of communication as well
as the device address by means of the TwisTorr software.
Communication Format
 8 data bit
 no parity
 1 stop bit
 baud rate: 600/1200/2400/4800/9600 pro-grammable
