Agilent Technologies X3507-64002 User Manual

17
Technical Information
Interconnections

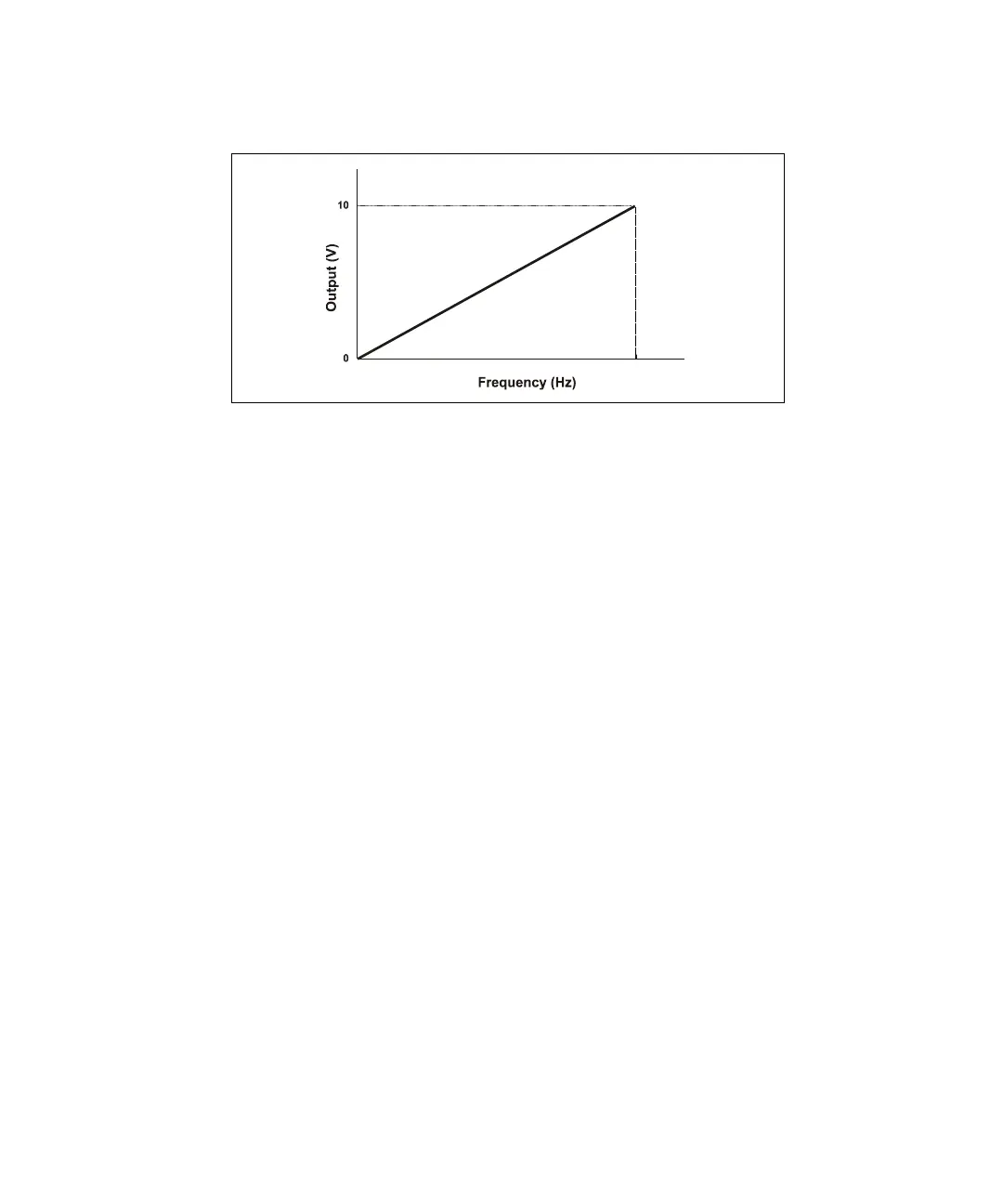

Figure 8
Fault: this open collector output signal is ON when a system fault
condition is detected.
Programmable set point: this open collector output signal is enabled
when the reference quantity chosen (frequency, current or time) is
higher than the set threshold. The signal can be "high level active" (that
is the output is normally at 0 Vdc and becomes 24 Vdc when activated),
or "low level active" (that is the output is normally at 24 Vdc and
becomes 0 Vdc when activated). Moreover, if the reference quantity is
the frequency or the current drawn, it is possible to set the hysteresis
(in % of the threshold value) to avoid bouncing.
For example:
 reference quantity: frequency
 threshold: 500 Hz
 hysteresis: 1%
 activation type: "high level"
1010
152/178 TwisTorr 304 FS on board Controller User Manual / 87-901-028-01 (C)
