3. Devices and Operating Elements
3
3
Running Bases on Cutter Bar
The cutter bar is equipped with rigid
skids that are mounted under the cutter
bar. It is possible to attach two height-
adjustable running bases to obtain a
higher stubble.
(Optional equipment
agria item no. 713 22 = 1 pair)

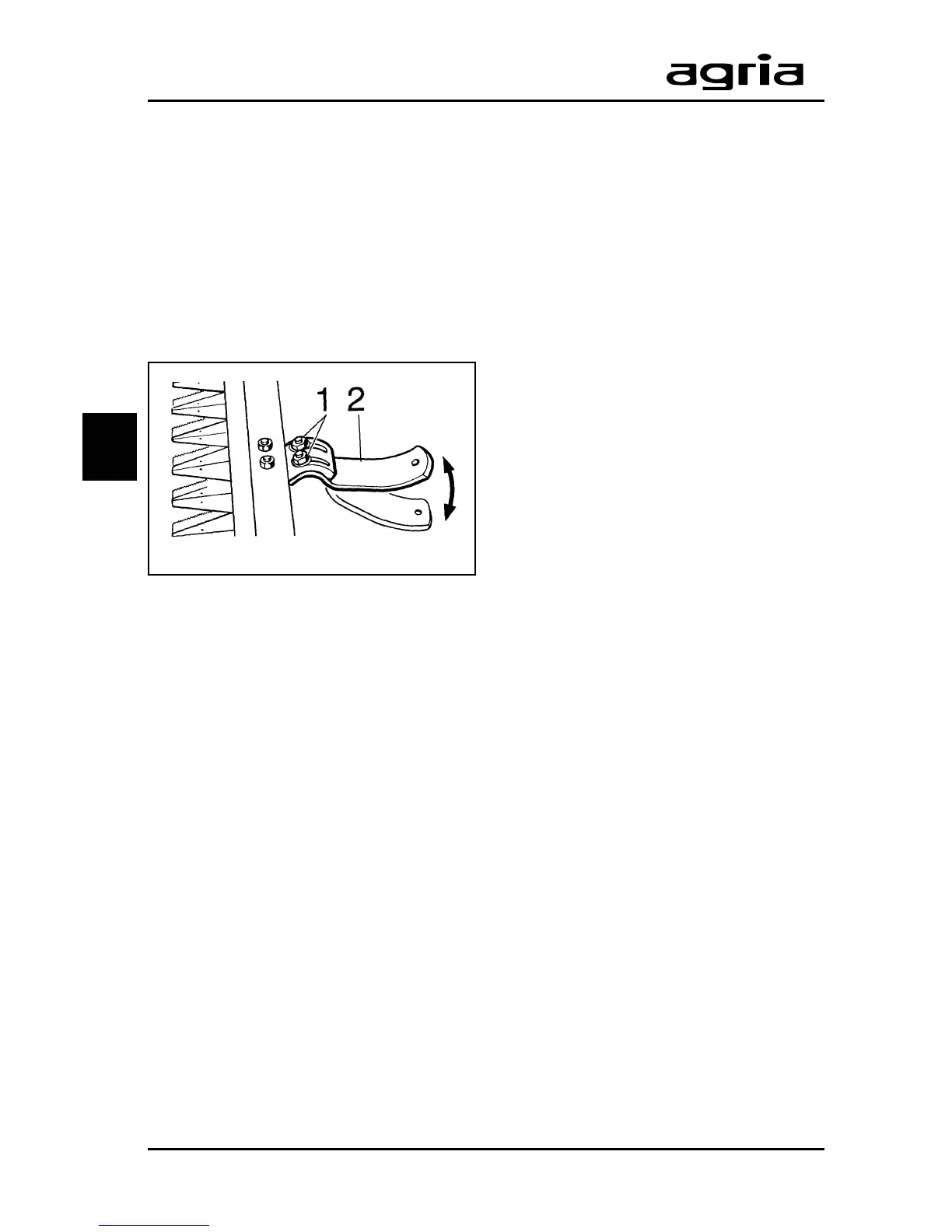

On cutter bar version S re-fit the exist-
ing skid so that it curves upwards (see
fig.).
For height adjustment, loosen the hex
nuts (1) and adjust the running bases
as required. Then re-tighten the hex
nuts.
For a clean cut, ensure that the running
bases are adjusted to same height.
