agria Grassland Mower 5100 7

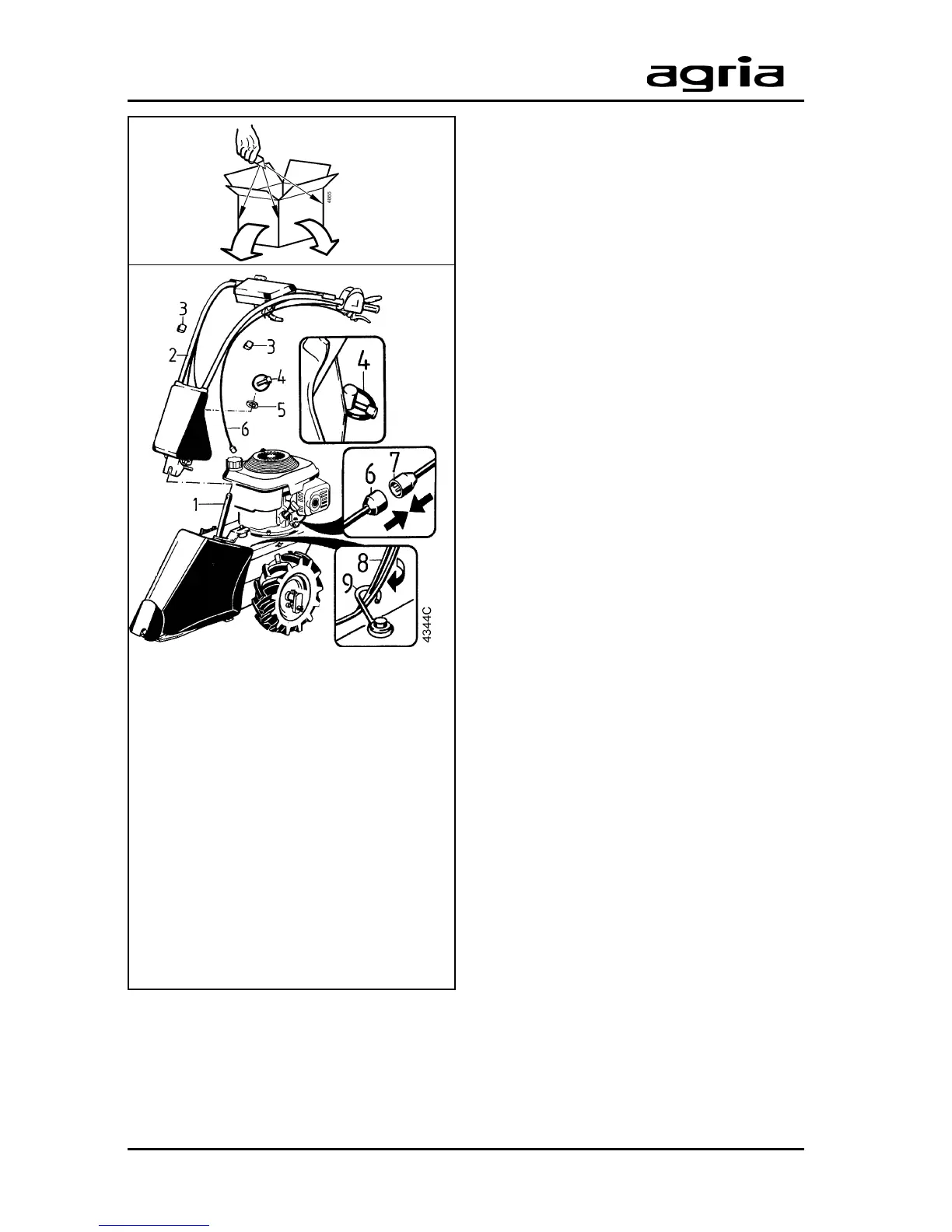

Unpacking and Assembly
1 Steering column pin
2 Steering handle
3 Clips
4 Linch pin
5 Washer
6 Electric cable with connector
(on steering handle)
7 Electric connector on engine
8 Bowden cables
9 Guide hook for Bowden cables
Unpacking
l
Open the top of the cardboard box.
l
Cut the box open on all four corners
and fold down the sides.
Assembly of steering handle
l
Push the steering handle location
holes (2) onto the steering column pin
(1).
l
Fit the washer (5) onto the steering
column pin (1).
l
Lock the steering handle by fitting the
linch pin (4) through the horizontal hole
in the steering column.
l
Notch the steering handle into the
middle position of the side adjustment
mechanism (see page 18).
l
Adjust the steering handle to the de-
sired working height (see page 18).
l
Connect the electric cable (7) to
socket (6) (engine safety circuit system).
l
Fit the Bowden cables (8) into the
guide hook (9).
l
Inspect again all cable guides to en-
sure the cables are not twisted or
jammed and to avoid clutch problems.
l
Attach Bowden and electric cables
with clips (3) to the steering handle.
Attaching the cutter bar
See instructions on page 20
Starting up
See instructions on page 23
