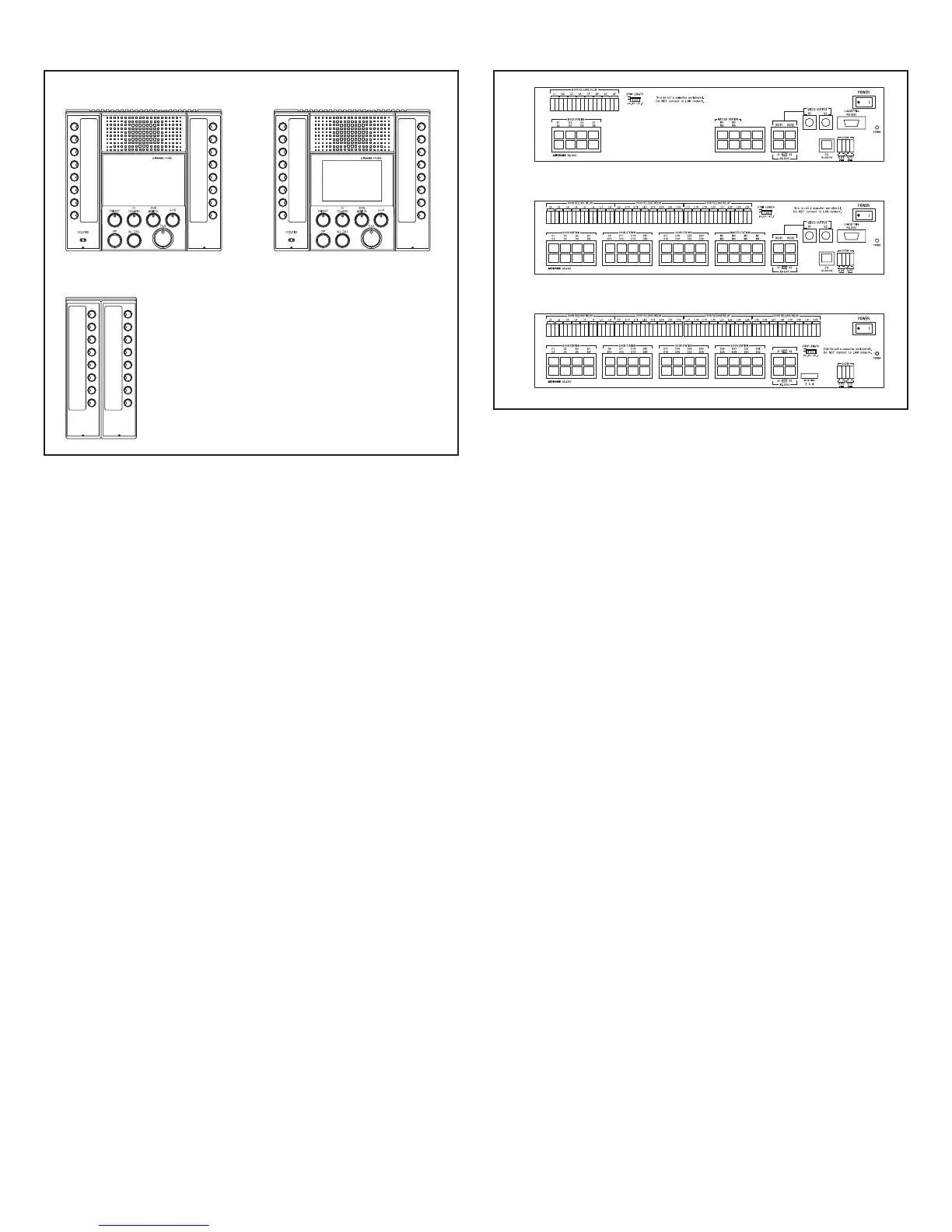

Central exchange unit
[1] AX-084C Standard central exchange unit
• A maximum of 4 master stations and 8 door stations can be
connected.
[2] AX-248C Expanded central exchange unit
• A maximum of 8 master stations and 24 door stations can be
connected.
[3] AX-320C Add-on exchange unit
• A maximum of 32 door stations can be connected.
• A maximum of 3 add-on exchange units can be connected in a
system.
1-5
Master station
[1] AX-8M audio master station
•Maximum 4 stations (with AX-084C), or 8 stations (with AX-
248C).
[2] AX-8MV color video maser station
•Maximum 4 stations (with AX-084C), or 8 stations (with AX-
248C).
[3] AX-16SW 16 call add-on selector
•A maximum of seven AX-16SW can be connected to each AX-
8M or AX-8MV.
NOTES: 1. A headset can also be used with the AX-8M and AX-
8MV (computer-style).
2. A multi-pin connector is supplied with the AX-8M
and AX-8MV, providing the following features:
footswitch activation the TALK function (footswitch
supplied locally); external signaling of call tones
(through IER-2), and composite video output (1V p-
p).
[1] [2]
[3]
[1]
[2]
[3]
