Annex

15 Annex

15.1 Tools

15.1.1 Tools list

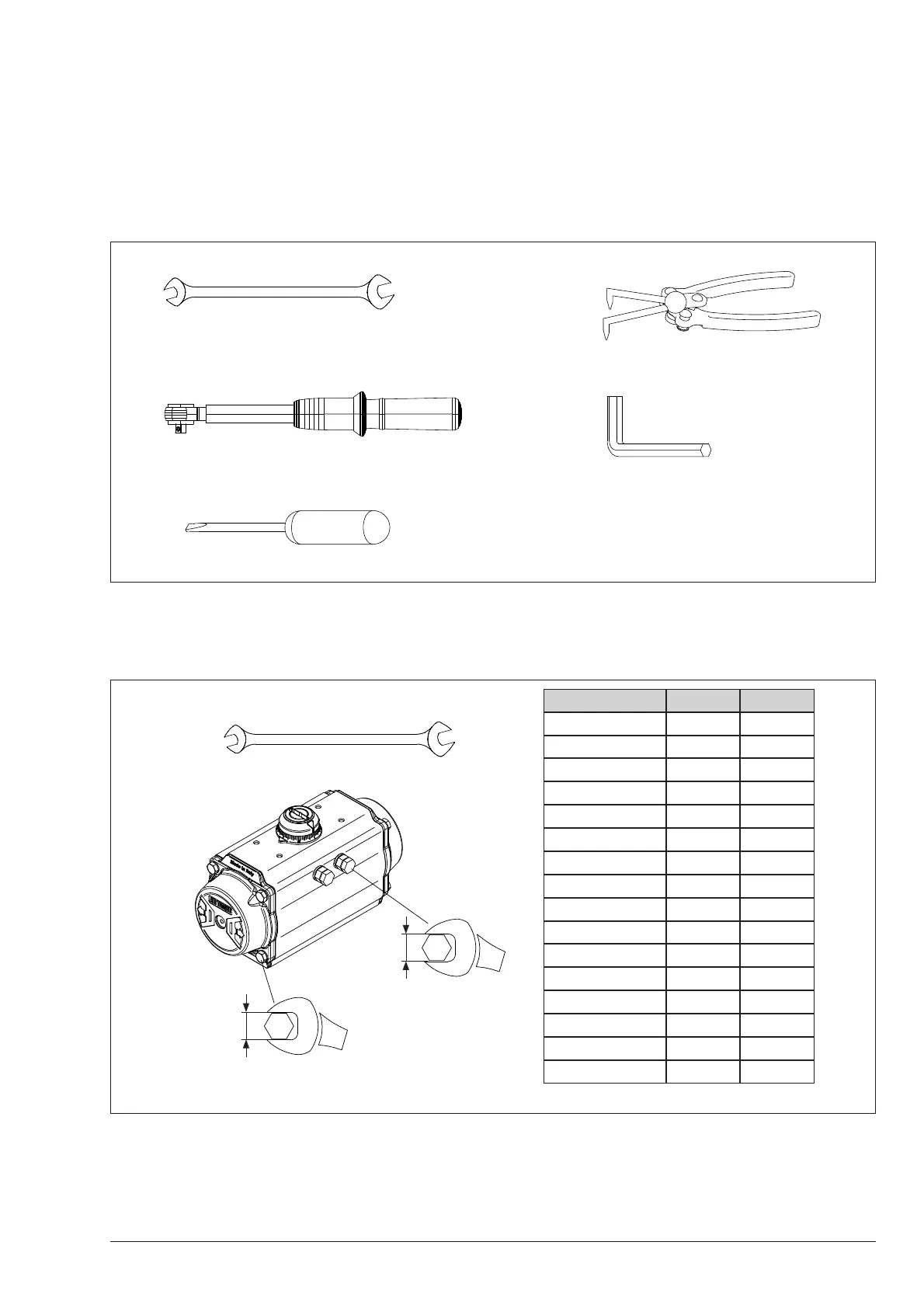

Fig. 15-1

− WRENCH − CIRCLIP PLIER

− TORQUE WRENCH − ALLEN KEY

− SCREWDRIVER

15.1.2 Tools dimensions

− Stop screws (02) and nuts (04); end cap screws (13).

Ch 1

Ch 2

Fig. 15-2

ACTUATOR MODEL Ch 1 (mm) Ch 2 (mm)

AT045U / 8

AT051U 10 8

AT101U 10 10

AT201U 13 10

AT251U 13 10

AT301U 17 13

AT351U 19 13

AT401U 19 17

AT451U 22 17

AT501U 22 19

AT551U 24 19

AT601U 30 22

AT651U 30 24

AT701U 36 22

AT751U 46 24

AT801U 46 24
