Aircel AHLD E-Series - Flow Diagram

AHLD Series | Heatless Regenerative Desiccant Air Dryer
12
A
D
B
C
D
Pre-Filter
Tower 1 Tower 2
After Filter

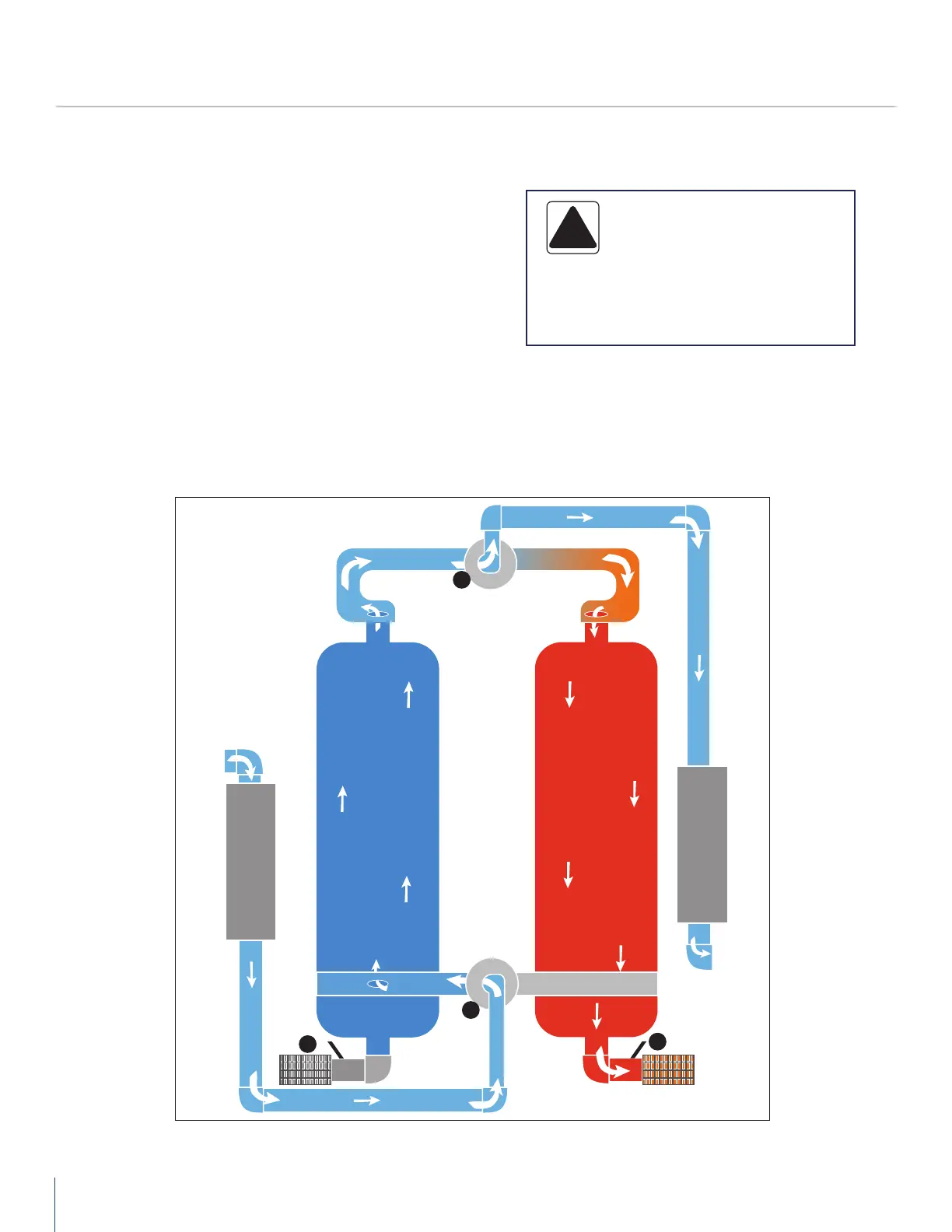

TYPICAL SCHEMATIC FLOW DIAGRAM
8. The Aircel AHLD E-Series Heatless Dryer incorporates a
unique energy saving control system to reduce purge
air loss with its integrated Energy Management Purge
Reduction System. This system utilizes a moisture
sensor sampling the air from mid-bed of the on-stream
drying tower, after the xed purge time is complete,
the regenerating/purging tower will repressurize. If the
moisture sensor senses a low moisture condition or low
load in the drying tower, the drying tower will remain
in the drying mode after the xed drying time cycle for
an extended period of time. The end result is an overall
purge reduction and signicant energy savings.
CAUTION!
• Do not misuse or modify under any
conditions. Misuse or modication of this
equipment may result in personal injury.
!
