Aircel AHLD E-Series - Time Control Main Navigation; Time Control Menu Operation

AHLD Series | Heatless Regenerative Desiccant Air Dryer
26
AIRCEL PROGRAMMABLE CONTROLLER (APC)

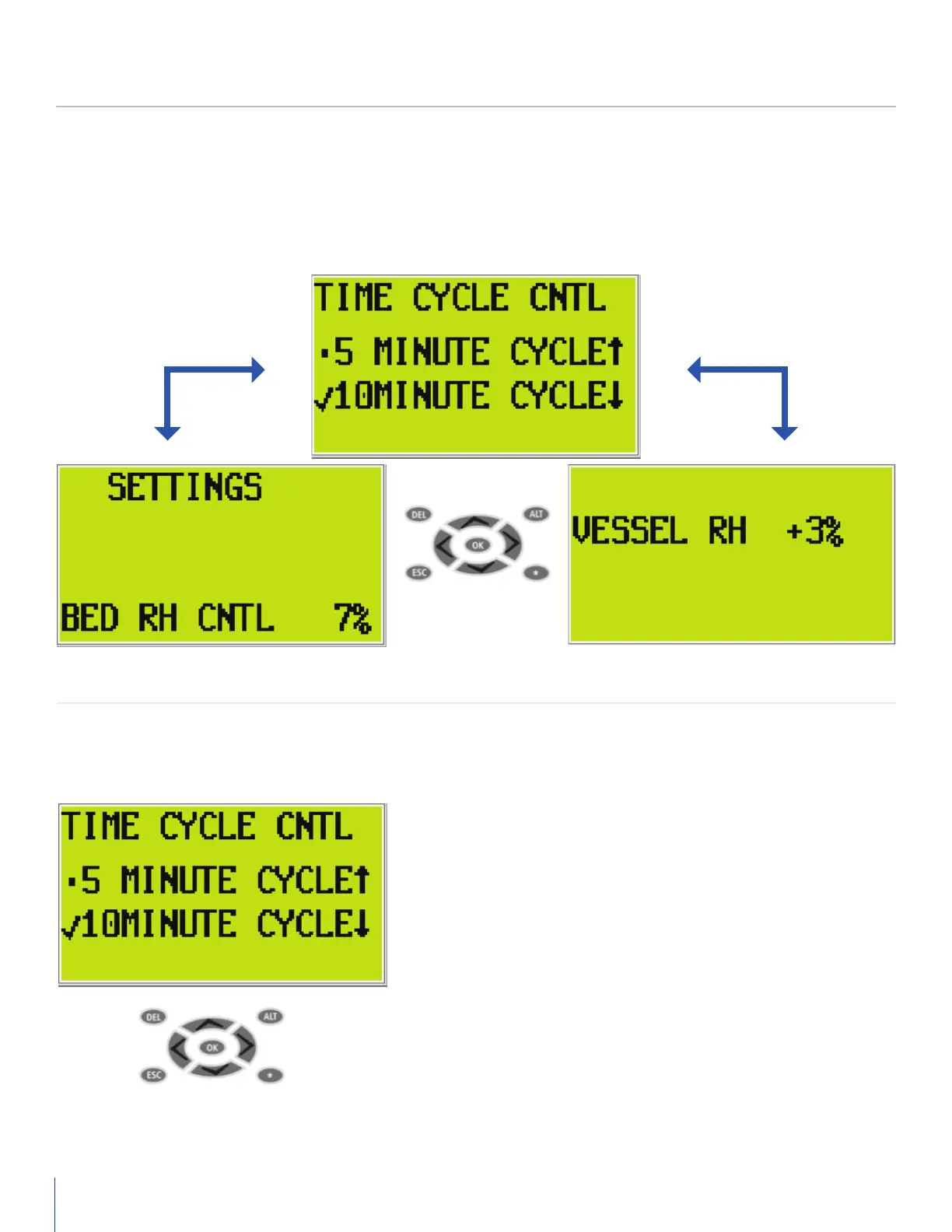

Time Control Main Navigation
This time cycle control menu allows the user to choose between a 10 minute standard time cycle and a shorter 5 minute cycle
for lower dew point option.
LEFT/RIGHT
SETTINGS
MENU
ANALOG
SCREEN
LEFT/RIGHT
Time Control Menu Operation
• To change the time cycle, push OK then scroll to the time cycle to
be selected. Push OK then push ESC.
• When changes are complete, push ESC to exit changes. Push ESC
again to return to the main screen.
