Unit Lifting - Condenser
General
• Employ lifting specialists
• Local codes and regulations relating to the lifting of this type of equipment should be observed
• Each chain/sling must be capable of lifting the whole unit
• Lift the unit slowly and evenly
IMPORTANT
Only use lifting points provided. Do not lift from the pipework connections as this may damage the unit.
• Do not use 1 chain between 2 lifting points to avoid load shift.
• Ensure that chains/slings DO NOT crush the casework, coil or fan assemblies.
• If the unit is dropped it should immediately be checked for damage and reported to Airedale.
• Airedale will accept no responsibility for mishandling during the positioning of the equipment.
Installation Data
Horizontal Air Discharge
Use lifting eyes attached to individual slings/chains (supplied by
others) and attach 2 to every top leg using the holes provided as
illustrated. Maximum of 8 slings/chains.
Check the unit is as ordered, discrepancies or transit damage should be reported to Airedale
immediately.
Care should be taken to ensure the unit does not sustain damage before it is lifted into nal
position.
LIFT

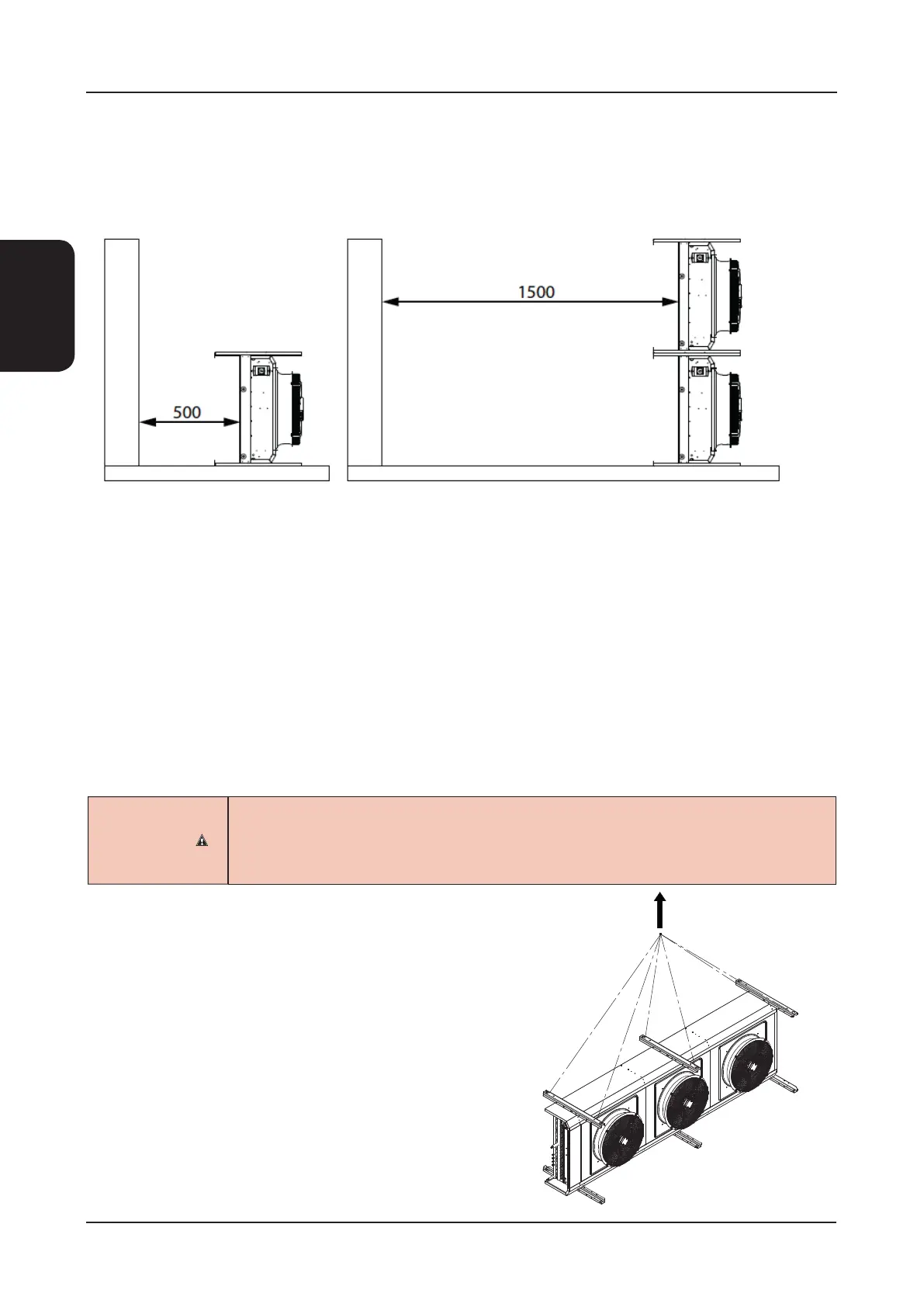

Stacking Units
Positioning condensers stacked on top of each other can cause the bottom unit to be starved of air. It is therefore
required that additional clearance is allowed.
Single unit clearance is 500mm, stacked units clearance is 1500mm.
