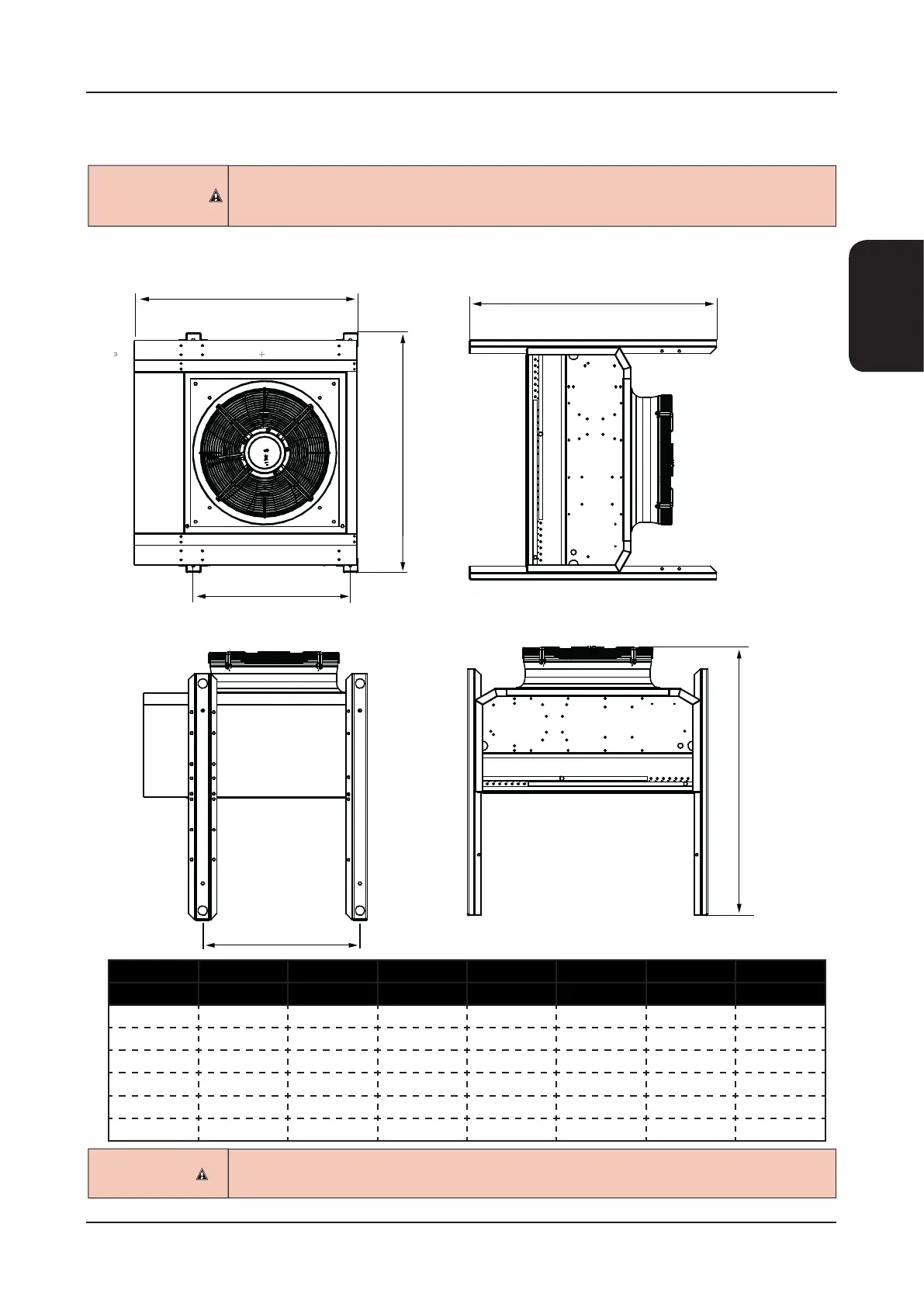

AIREDALE CR12 - Installation Data; Dimensions

Standard Condenser 1 Fan
Installation Data
Dimensions
Unit diagrams can be supplied on request.
The legs attached to the top of the horizontal unit are for lifting and stacking and may be removed
and stored safely if not required. Only 2 units may be stacked together.
IMPORTANT
A vertical air discharge unit is recommended for installation in windy locations or wherever a
horizontal airow would be obstructed.
CAUTION
B
A
E
C
D
F
Horizontal
Vertical
A B C D E F
UNIT FAN TYPE mm mm mm mm mm mm
CR12 AC 902 972 1000 635 635 1165
CR16 AC 902 972 1000 635 635 1165
CR22 AC 1095 1167 1000 820 820 1126
CR26 EC 1095 1167 1000 820 820 1217
CR30 AC 1095 1167 1000 820 820 1126
CR35 EC 1095 1167 1000 820 820 1217
