AIREDALE CR12 - Page 8

B
A
E
C
F
D
Unit diagrams can be supplied on request.
The legs attached to the top of the horizontal unit are for lifting and stacking and may be removed
and stored safely if not required. Only 2 units may be stacked together.
IMPORTANT
Installation Data
Dimensions

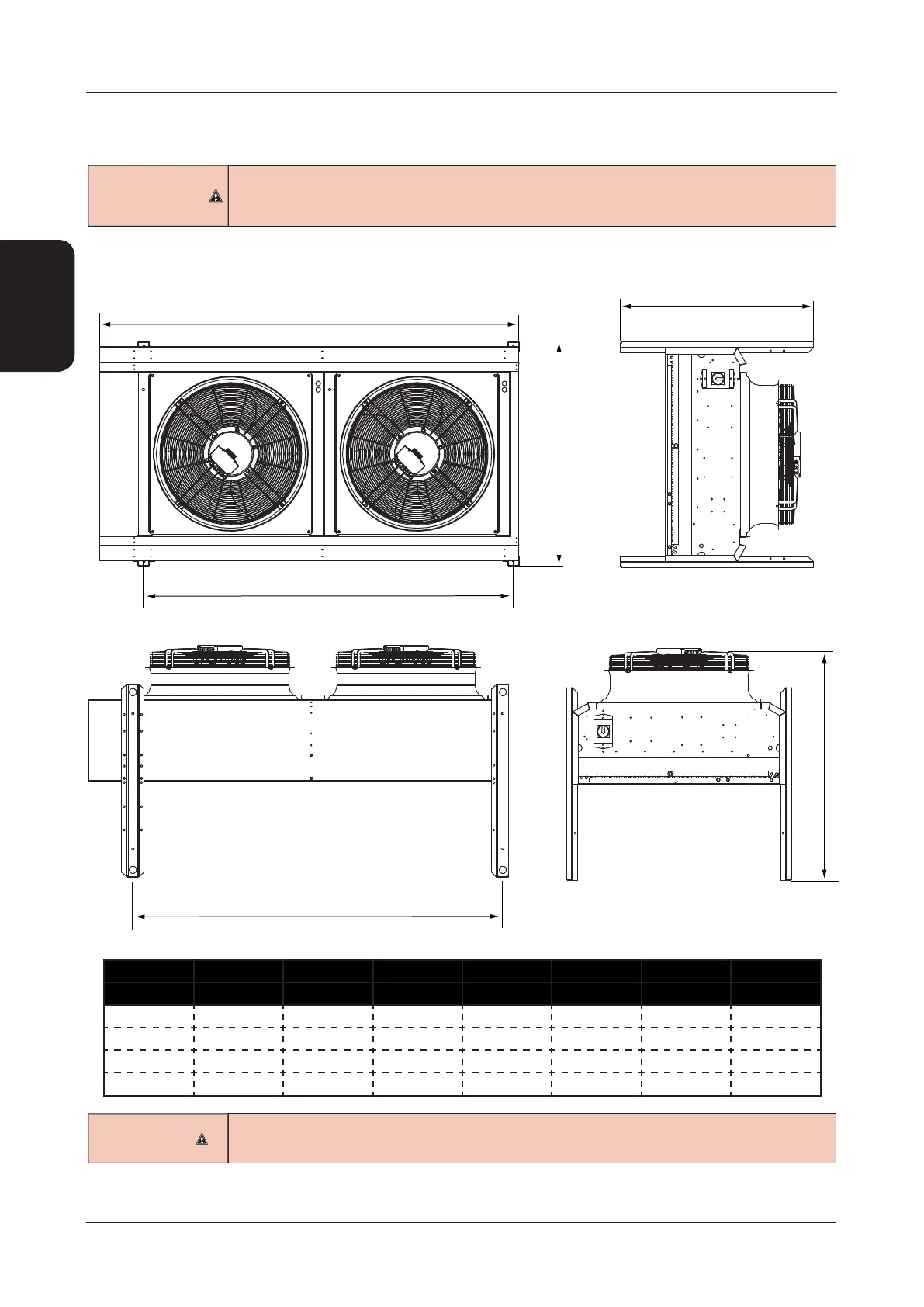

Standard Condenser 2 Fans
Horizontal
Vertical
A vertical air discharge unit is recommended for installation in windy locations or wherever a
horizontal airow would be obstructed.
CAUTION
A B C D E F
UNIT FAN TYPE mm mm mm mm mm mm
CR50 AC 2177 1167 1000 1916 1916 1126
CR60 EC 2177 1167 1000 1916 1916 1217
CR65 AC 2177 1167 1000 1916 1916 1126
CR75 EC 2177 1167 1000 1916 1916 1217
CR12 - CR165 50/60Hz CONDENSERS
8 Condenser Technical Manual 6666879 V2_02_2020
Installation
