F
C
E
E
B
A
D
D
Unit diagrams can be supplied on request.
The legs attached to the top of the horizontal unit are for lifting and stacking and may be removed
and stored safely if not required. Only 2 units may be stacked together.
IMPORTANT

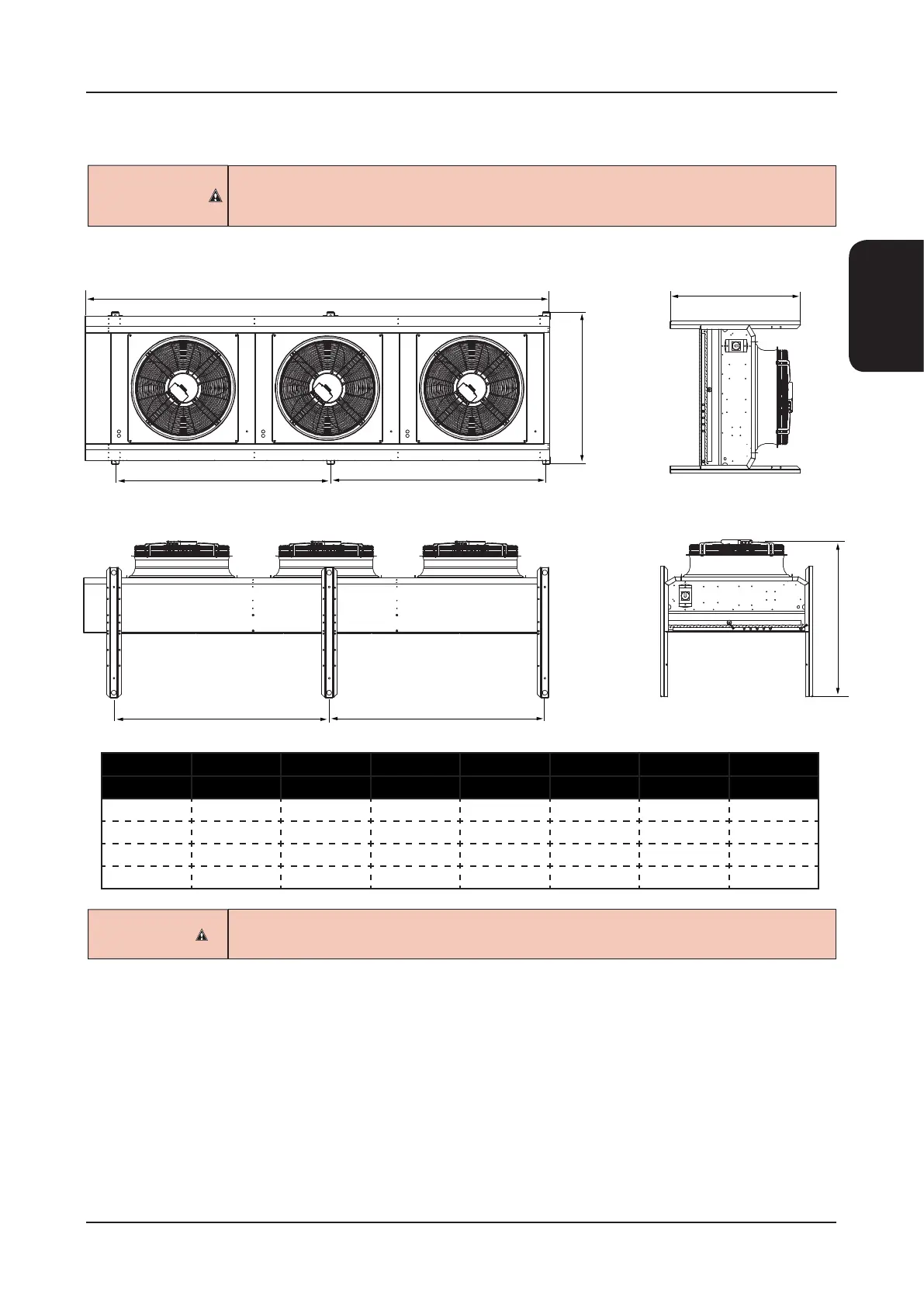

Installation Data
Dimensions
Standard Condenser 3 Fans
Horizontal
Vertical
A vertical air discharge unit is recommended for installation in windy locations or wherever a
horizontal airow would be obstructed.
CAUTION
A B C D E F
UNIT FAN TYPE mm mm mm mm mm mm
CR80 AC 3560 1167 1000 1650 1650 1126
CR95 EC 3560 1167 1000 1650 1650 1217
CR105 AC 3560 1167 1000 1650 1650 1126
CR130 EC 3560 1167 1000 1650 1650 1217
CR12 - CR165 50/60HzCONDENSERS
9
Condenser Technical Manual 6666879 V2_02_2020
Installation
