Unit diagrams can be supplied on request.
The legs attached to the top of the horizontal unit are for lifting and stacking and may be removed
and stored safely if not required. Only 2 units may be stacked together.
IMPORTANT
Installation Data

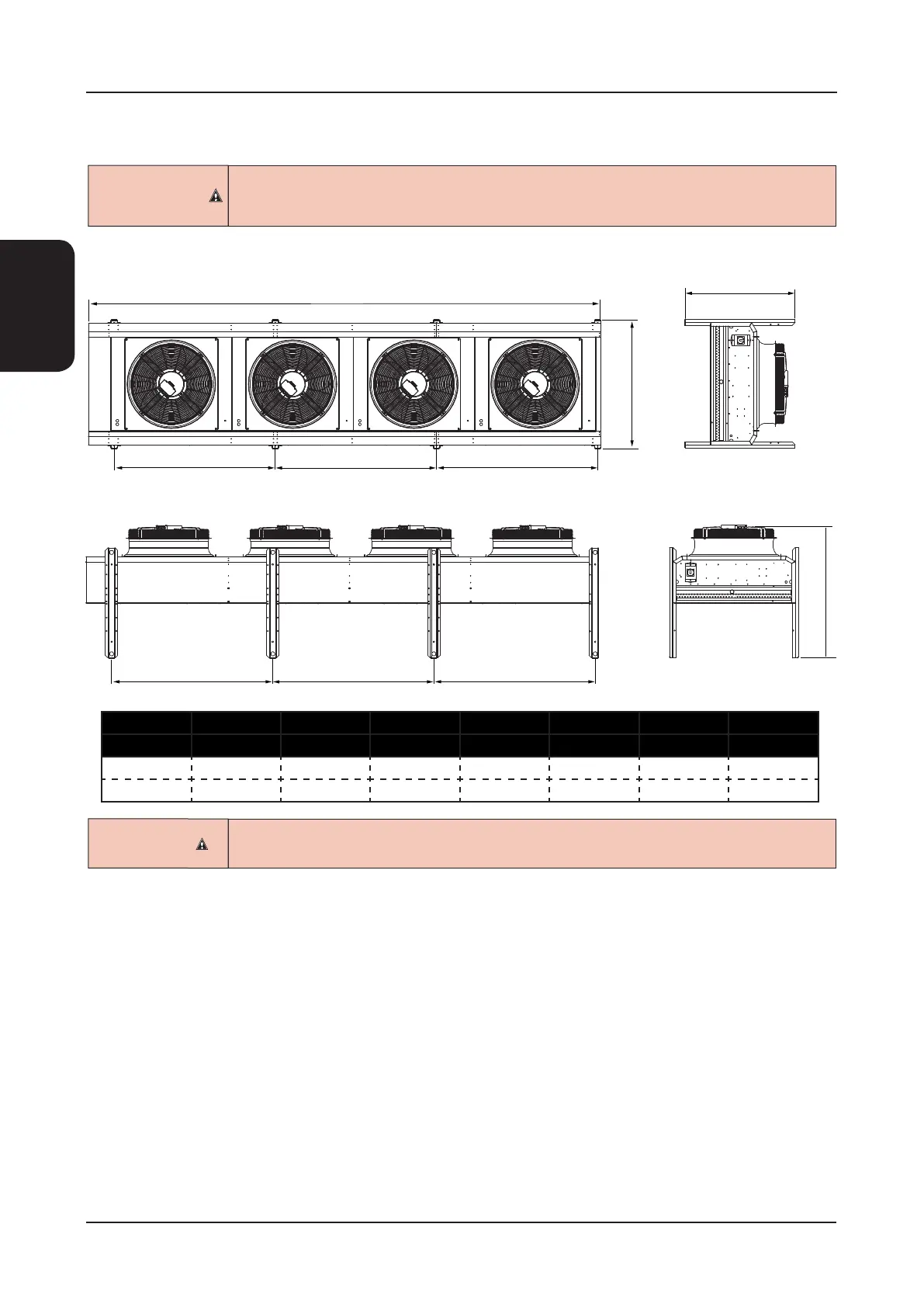

Dimensions
Standard Condenser 4 Fans
A
B
C
E
E
E
F
D
D
D
Horizontal
Vertical
A vertical air discharge unit is recommended for installation in windy locations or wherever a
horizontal airow would be obstructed.
CAUTION
A B C D E F
UNIT FAN TYPE mm mm mm mm mm mm
CR140 AC 4644 1167 1000 1460 1460 1126
CR165 EC 4644 1167 1000 1460 1460 1217
CR12 - CR165 50/60Hz CONDENSERS
