AIRLESSCO LP540 - Gear and Pump Assembly; Gearbox Assembly Servicing; Gearbox Sleeve Bearing Replacement

22
23

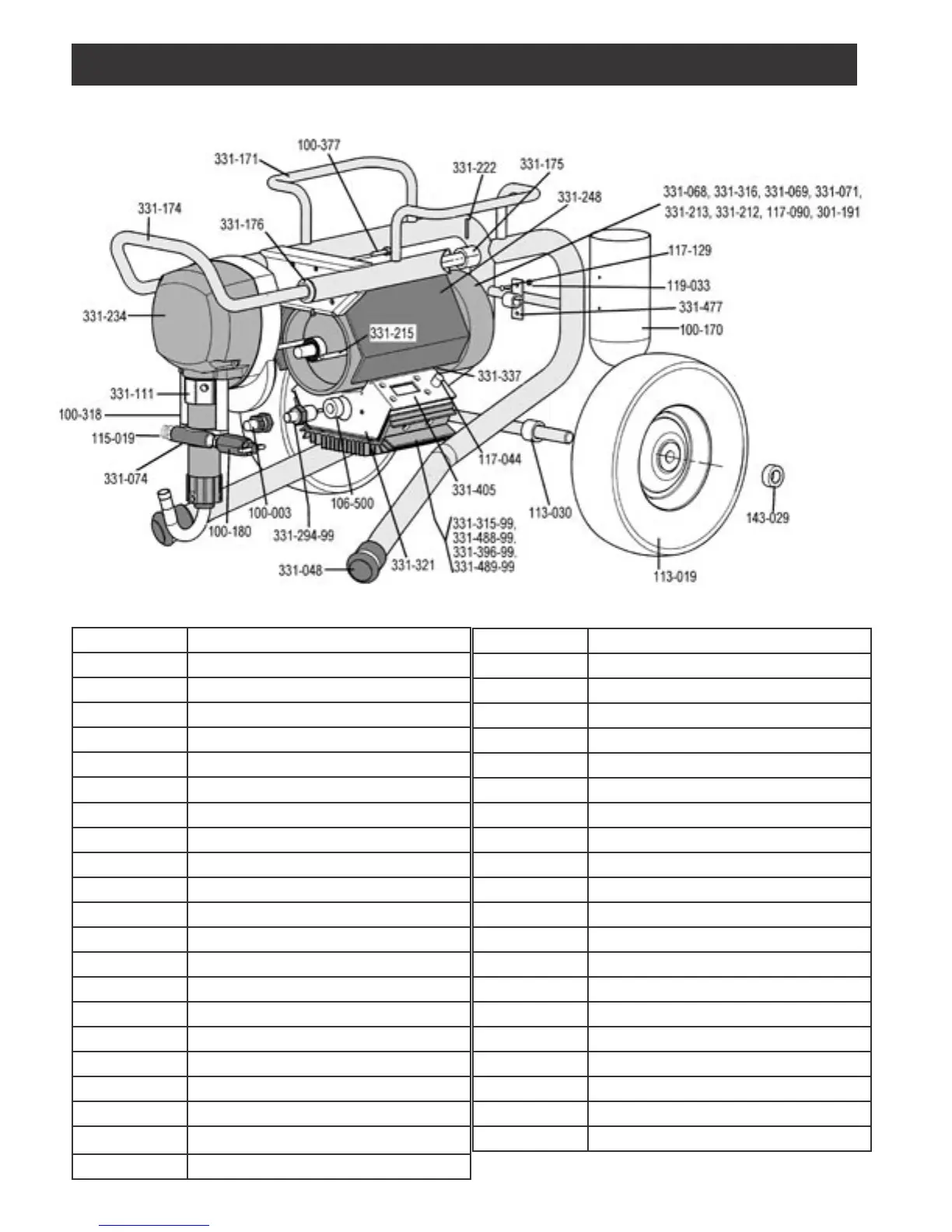

FIGURE 18
LO-BOY MODELS
Part Number Description
100-003 Swivel
100-170 Cup
100-180 Prime Valve
100-318 Screw (2)
100-377 Screw (4)
106-500 Sensor Seal
113-019 Wheel 10” (2)
113-030 Spacer (2)
115-019 Hose Connector (1/4” NPSXNPT)
117-044 Knob
117-090 Fan Cover Screws (3)
117-129 Screw (2)
119-033 Nut (2)
143-029 Collar (2)
301-191 Fan Retaining Clip
331-048 Rubber Boot (2)
331-068 .8 HP DC Motor 110V (5/6 Series)
331-069 .75 HP DC Motor 230V (5/6 Series)
331-071 .5 HP DC Motor 230V (4 Series)
331-074 Tube Spacer (2)
331-111 Shield
Part Number Description
331-171 Frame
331-174 Handle
331-175 Spacer (2)
331-176 Bushing (2)
331-212 Fan
331-213 Fan Cover
331-215 Bolt (5/6 Series)
331-222 Pin (2)
331-234 Cover
331-248 Motor Cover
331-294-99 Sensor
331-315-99 Pressure Ass’y 110V (5/6 Series)
331-316 .6 HP DC Motor 110V (4 Series)
331-321 Terminal Box
331-337 Rubber Edge (2)
331-396-99 Pressure Ass’y 230V (5/6 Series)
331-405 Blanking Plate, LCD Panel
331-477 Cup Support
331-488-99 Pressure Ass’y 110V (4 Series)
331-489-99 Pressure Ass’y 230V (4 Series)
