HI-BOY MODELS

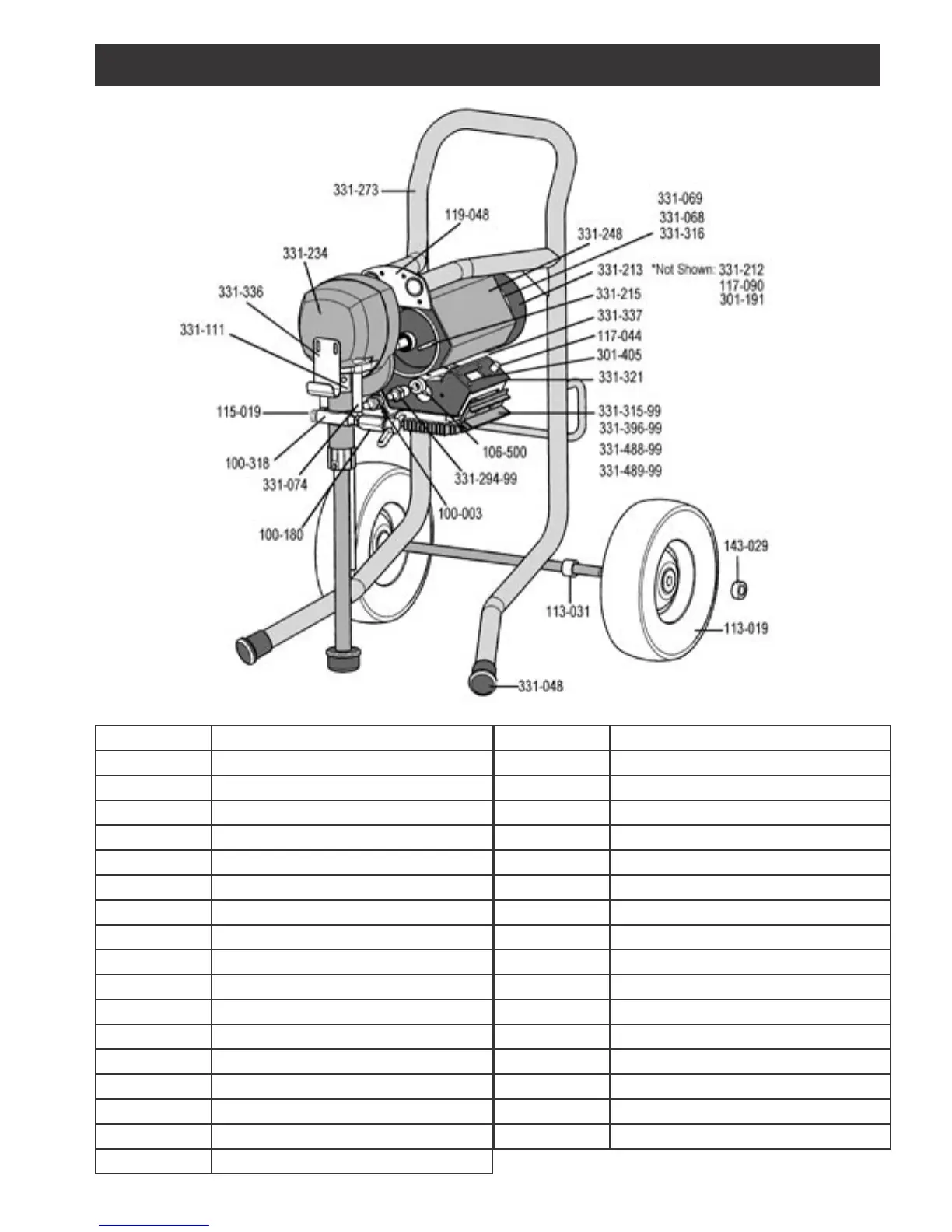

FIGURE 19
Part Number Description
100-003 Swivel
100-180 Prime Valve
100-318 Screw (2)
106-500 Sensor Seal
113-019 Wheel 10” (2)
113-031 Spacer (2)
117-044 Knob
117-090 Fan Cover Screw (3)
119-048 Screw (4)
143-029 Collar (2)
15-019 Hose Connector (1/4” NPSXNPT)
301-191 Fan Retaining Clip
301-405 Cover Plate for LCD Opening
331-048 Rubber Boot
331-068 .8 HP DC Motor 110V (5/6 Series)
331-069 .75 HP DC Motor 230V (5/6 Series)
331-074 Tube Spacer (2)
Part Number Description
331-111 Shield
331-212 Fan
331-213 Fan Cover
331-215 Bolt (5/6 Series)
331-234 Cover
331-248 Motor Cover
331-273 Frame
331-294-99 Sensor
331-315-99 Pressure Ass’y 110V (5/6 Series)
331-316 .6 HP DC Motor 110V (4 Series)
331-321 Terminal Box
331-336 Pail Hook
331-337 Rubber Edge
331-396-99 Pressure Ass’y 230V (5/6 Series)
331-488-99 Pressure Ass’y 110V (4 Series)
331-489-99 Pressure Ass’y 230V (4 Series)
