ELECTRICAL SYSTEM (5 & 6 Series)

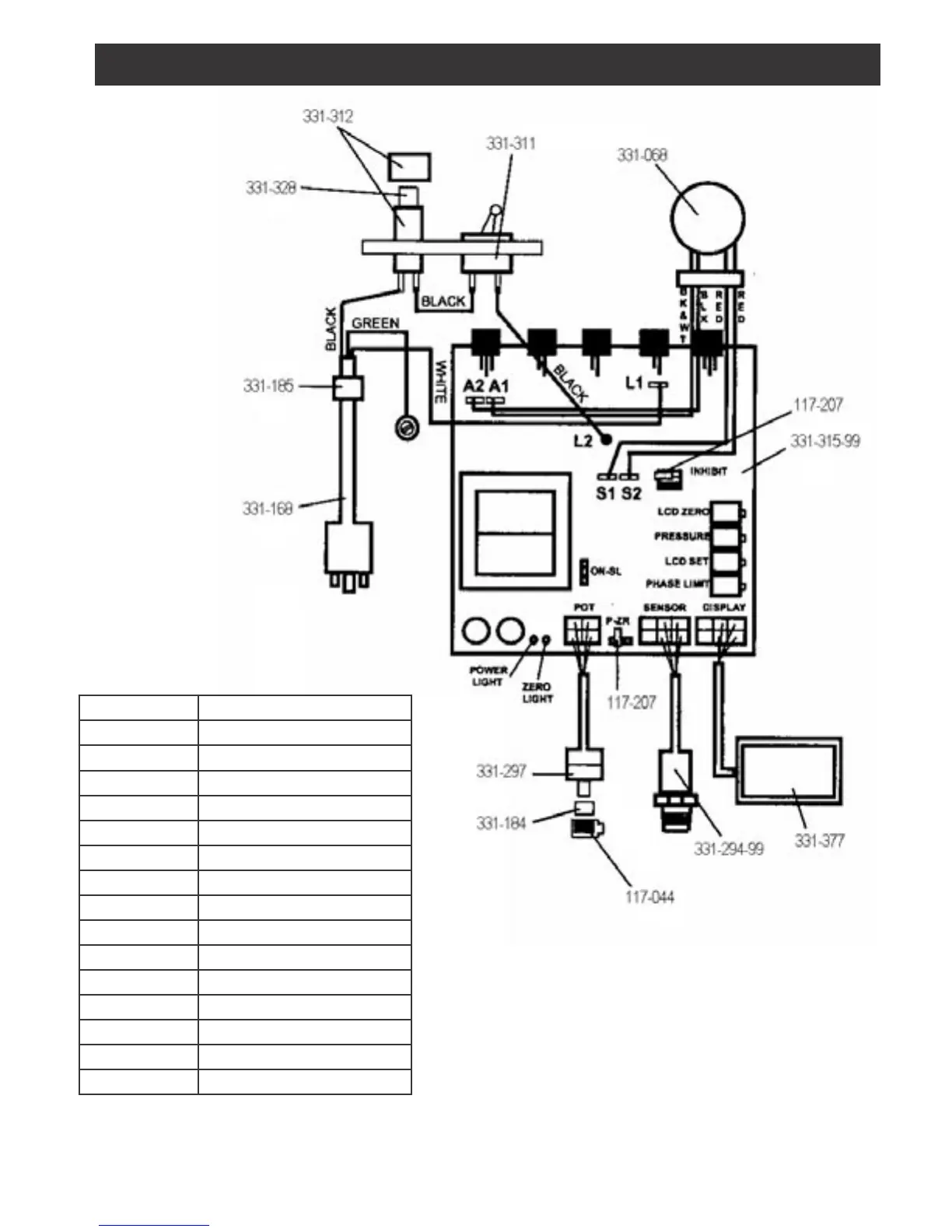

FIGURE 23
Part Number Description
117-044 Knob
117-207 Jumper
331-068 .8 HP DC Motor
331-168 Electrical Power Cord
331-184 Spacer
331-185 Strain Relief
331-294-99 Sensor
331-297 Potentiometer
331-311 Toggle Switch
331-312 Fuse Holder
331-315-99 Pressure Control Ass’y
331-328 Fuse 20A Slow Blow
331-377 LCD - Optional Display
* Not Shown:
* 331-304-99 LCD - Display Upgrade Kit
