AIRLESSCO LP540 - Figure 20; Part Number Description; Suction Assemblies

24
25

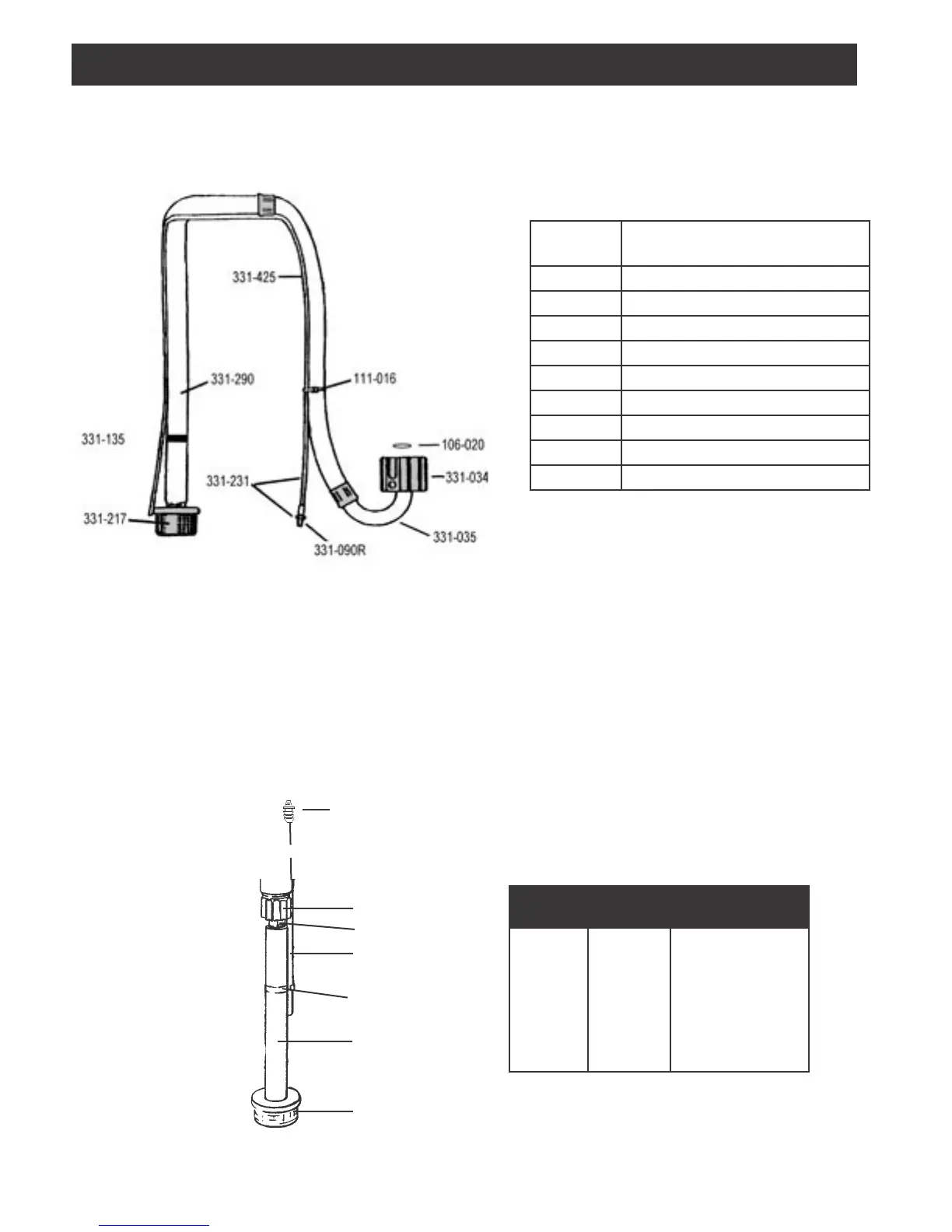

SUCTION ASSEMBLIES
FIGURE 20 - LoBoy & Carry
FIGURE 21 - HiBoy
1
2
3
4
5
6
7
1
2
3
4
5
6
PN 331-284 (Hi-Boy Chassis)
331-034
331-292
301-348
116-103
331-400
141-008
331-090R
Suction Nut
Suction Seat Ass'y
Bypass Hose
Spring Clip
Inlet Tube
Filter
Fitting
7
FIGURE 21 PARTS LIST
ITEM # PART # DESCRIPTION
Part
Number
Description
106-020 O-Ring Teon
111-016 Nylon Tie
331-034 Suction Nut
331-035 Suction Elbow
331-090R Fitting
331-135 Spring Clip
331-217 Inlet Strainer
331-231 Bypass Hose Ass’y
331-290 Suction Hose Ass’y (Inc. strainer)
