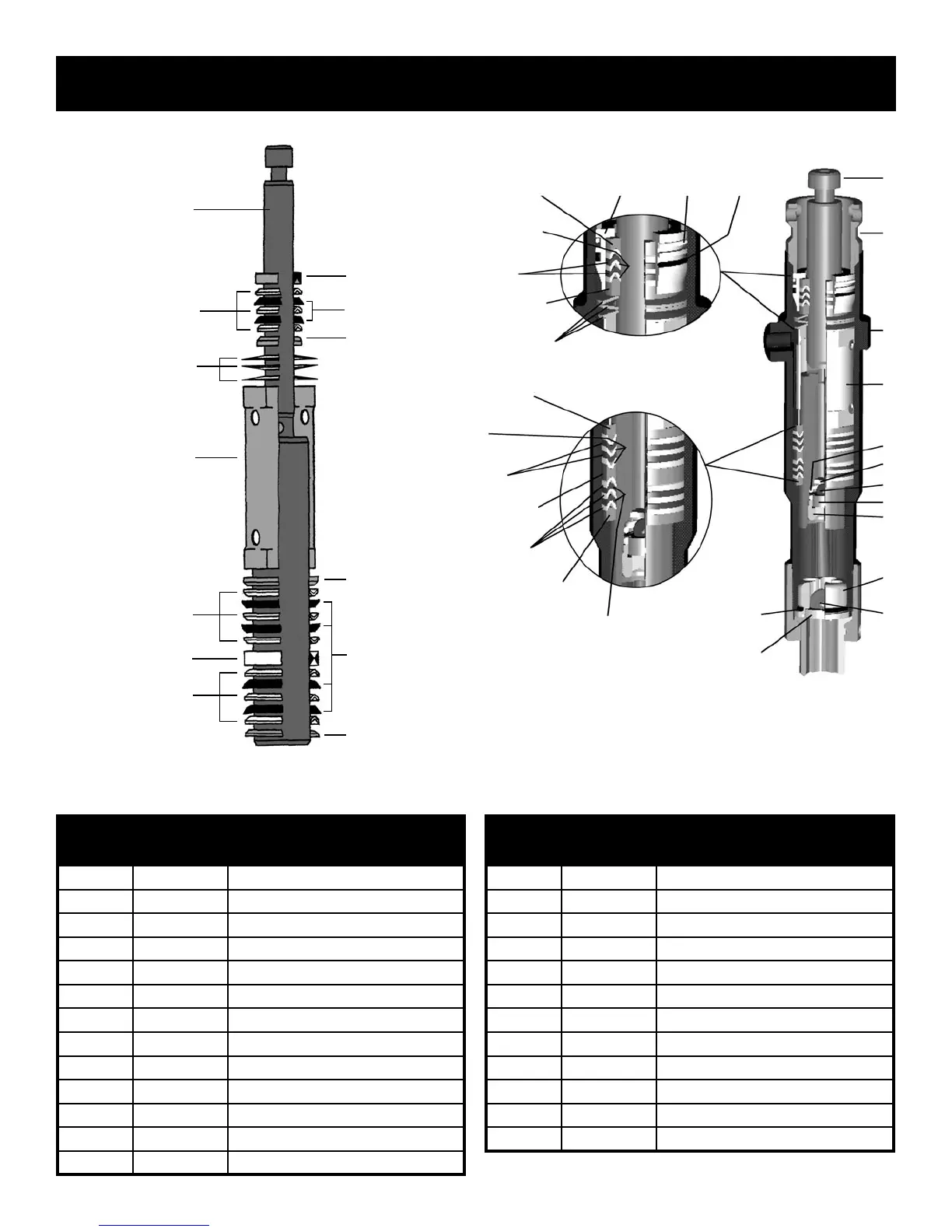

AIRLESSCO SL810 - PACKING REPLACEMENT PROCEDURES

18
19
FIG. 22
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
14
16
15
25
PACKING REPLACEMENT PROCEDURES
PARTS LIST FIGURE 22 & 23
Item No. Part No. Description
1 187-330-99 Piston Rod
2 187-046 Packing Nut
3 187-313 Fluid Body
4 187-315 Spacer
5 106-021 O-Ring
6 187-062 Ball Guide
7 115-022 Outlet Ball
8 187-061 Outlet Seat
9 187-051 Outlet Seat Support
10 187-016 Suction Retainer
11 187-020 Suction Ball
12 187-065 Suction Seat
13 106-014 O-Ring
PARTS LIST FIGURE 22 & 23
Item No. Part No. Description
14 187-059 Packing Leather
15 187-037 Male Gland
16 187-029 Packing Polyethylene
17 187-058 Female Adaptor
18 187-031 Belleville Springs
19 187-025 Male Gland
20 187-060 Packing Leather
21 187-030 Packing Polyethylene
22 187-026 Female Gland
23 187-047 Packing Holder
24 106-012 White O-Ring
25 106-013 Black O-Ring
FIG. 23
22
20
19
15
14
15
16
16
17
4
18
21
1
