AIRLESSCO SL810 - Suction Assembly 5 Gal; Suction Assembly 55 Gal

22
23

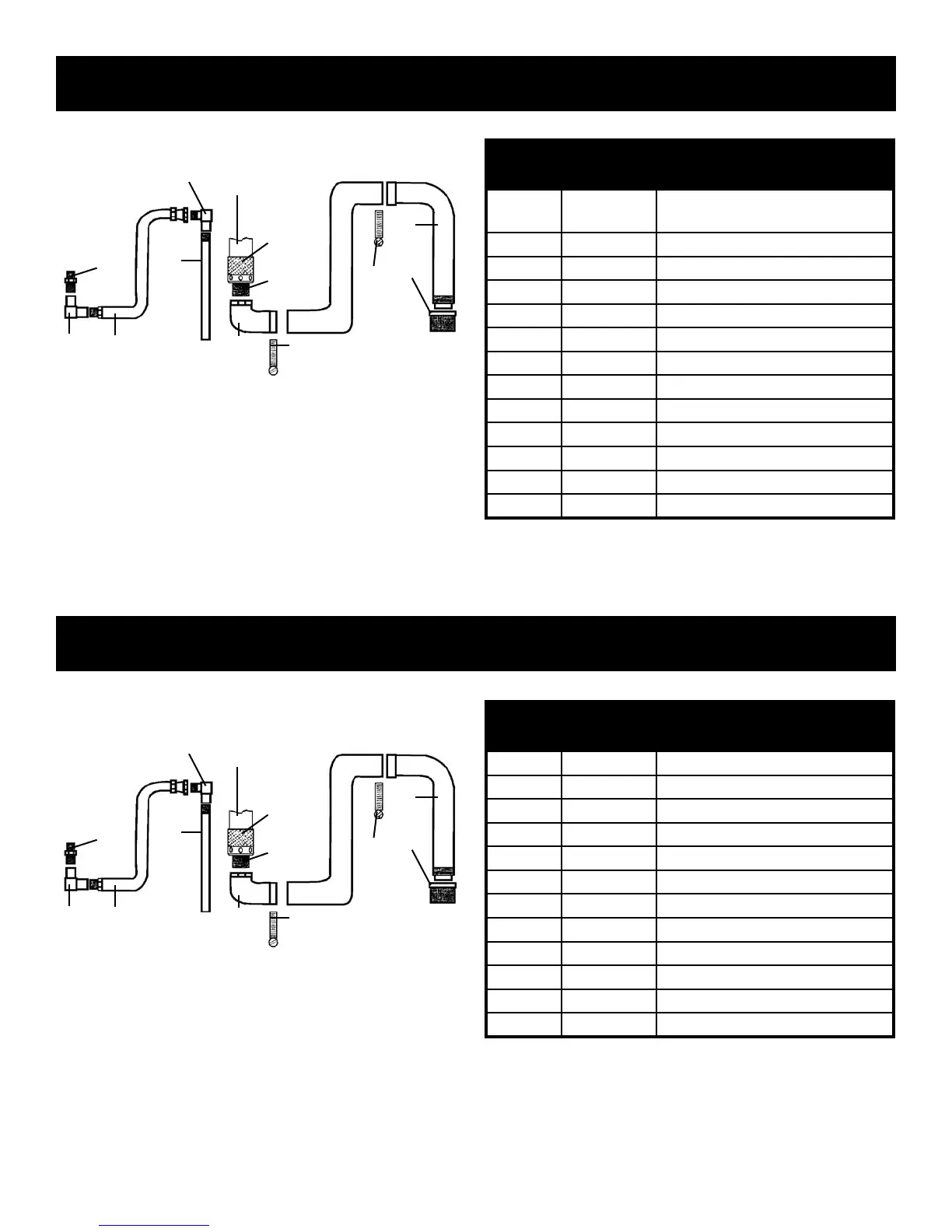

SUCTION ASSY - 5 GAL. - (301-090-99)
FIG. 28
FIG. 27
PARTS LIST FIGURE 27
Item No. Part No. Description
*
301-517-99 Suction Hose Assy (includes
items 1-5)
1 141-008 Inlet Strainer
2 301-514 Suction Tube
3 301-516 Hose Clamps (2)
4 301-513A Hose
5 100-165 Elbow
6 188-377 Return Pipe
7 100-128 Elbow
8 100-012 Whip
9 100-126 Elbow**
10 100-385 Reducer**
11 187-017 Fitting
12 187-018 Suction Nut
PARTS LIST FIGURE 28
Item No. Part No. Description
1 141-008 Inlet Strainer
2 301-545 Suction Tube
3 301-516 Hose Clamps (2)
4 301-544 Hose
5 100-165 Elbow
6 188-377 Return Pipe
7 100-128 Elbow
8 100-012 Whip
9 100-126 Elbow**
10 100-385 Reducer**
11 187-017 Fitting
12 187-018 Suction Nut
SUCTION ASSY - 55 GAL. - (301-543-99)
1
2
3
4
5
6
7
89
10
11
12
3
FLUID PUMP
1
2
3
4
5
6
7
89
10
11
12
3
FLUID PUMP
