AIRLESSCO SL810 - ELECTRICAL SYSTEM

24
25
PARTS LIST FIGURE 29
Item No. Part No. Description
1
331-168
301-101
Electrical Cord 110V
Electrical Cord 230V
2 331-185 Strain Relief
3 331-138 Screw
4 301-083 Toggle Switch
5
301-518
301-084A
301-084B
35A Circuit Breaker 110V
10A Circuit Breaker 230V
15A Circuit Breaker 230V
6 117-035 Rubber Boot
7
301-058A
301-106A
301-255A
1HPDC Motor 230V (810/910)
1.25HP Motor 110V
1.25HPDC Motor 230V (1100/1110E)
8
301-318-99
301-364-99
Pressure Control Assy 110V
Pressure Control Assy 230V
9 117-207 Jumper (2)
10 331-294-99 Sensor
11 331-297 Potentiometer
12 331-184 Spacer
13 117-044 Knob
14
331-377
301-397
LCD Display (PSI)
LCD Display (BAR)

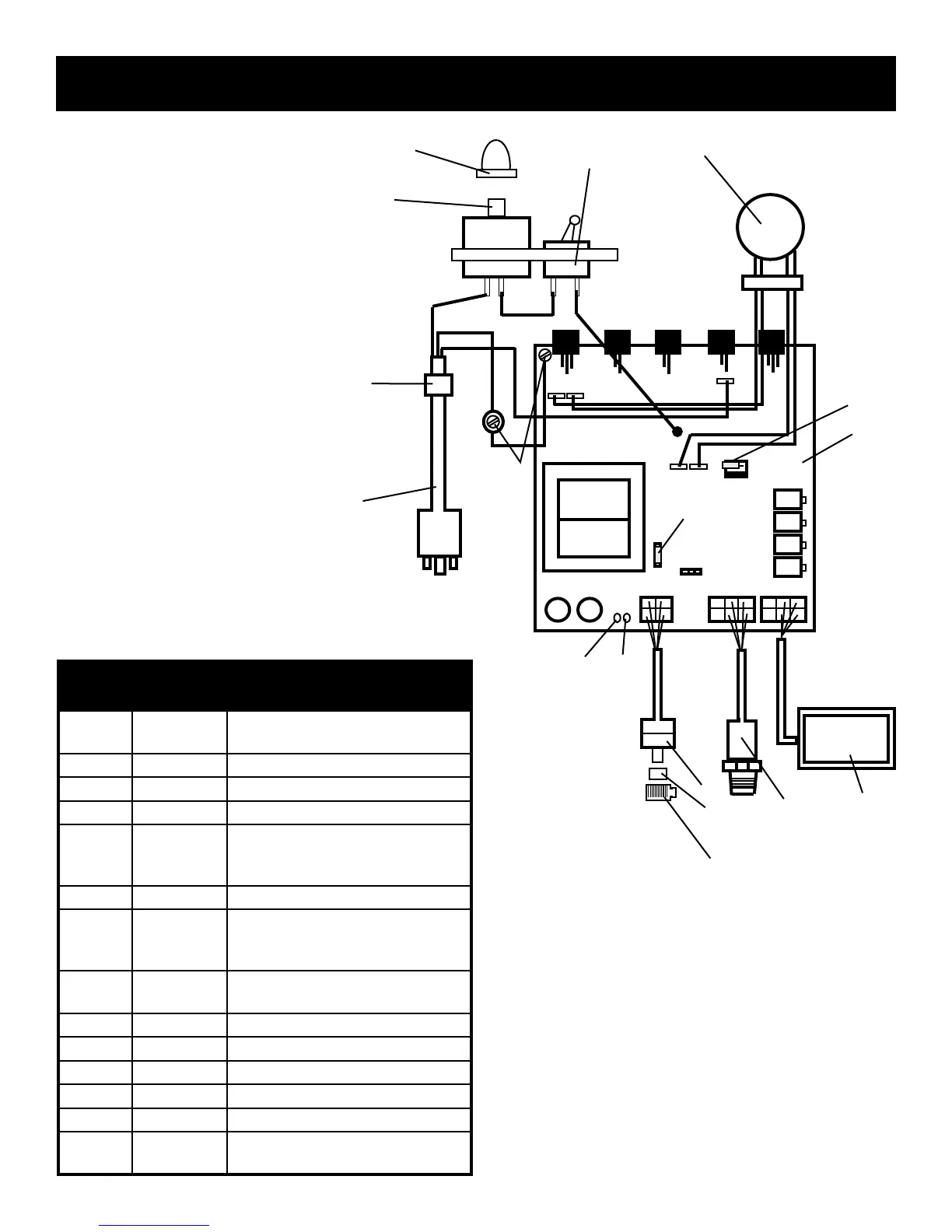

FIG. 29
ELECTRICAL SYSTEM
S1 S2
A2 A1
L1
L2
INHIBIT
SWITCH
P-ZR
ON-SL
DISPLAY
SENSOR POT
GREEN
BLACK
BLACK
R
E
D
R
E
D
BLACK/BROWN
B
L
K
LCD ZERO
PRESSURE
LCD SET
PHASE LIMIT
1
2
3
4
5
7
8
ZERO
YELLOW
LIGHT
9
10
11
12
13
14
B
K
&
W
T
9
POWER
RED
LIGHT
6
WHITE/BLUE
