4.4 MANIFOLD COMPONENTS

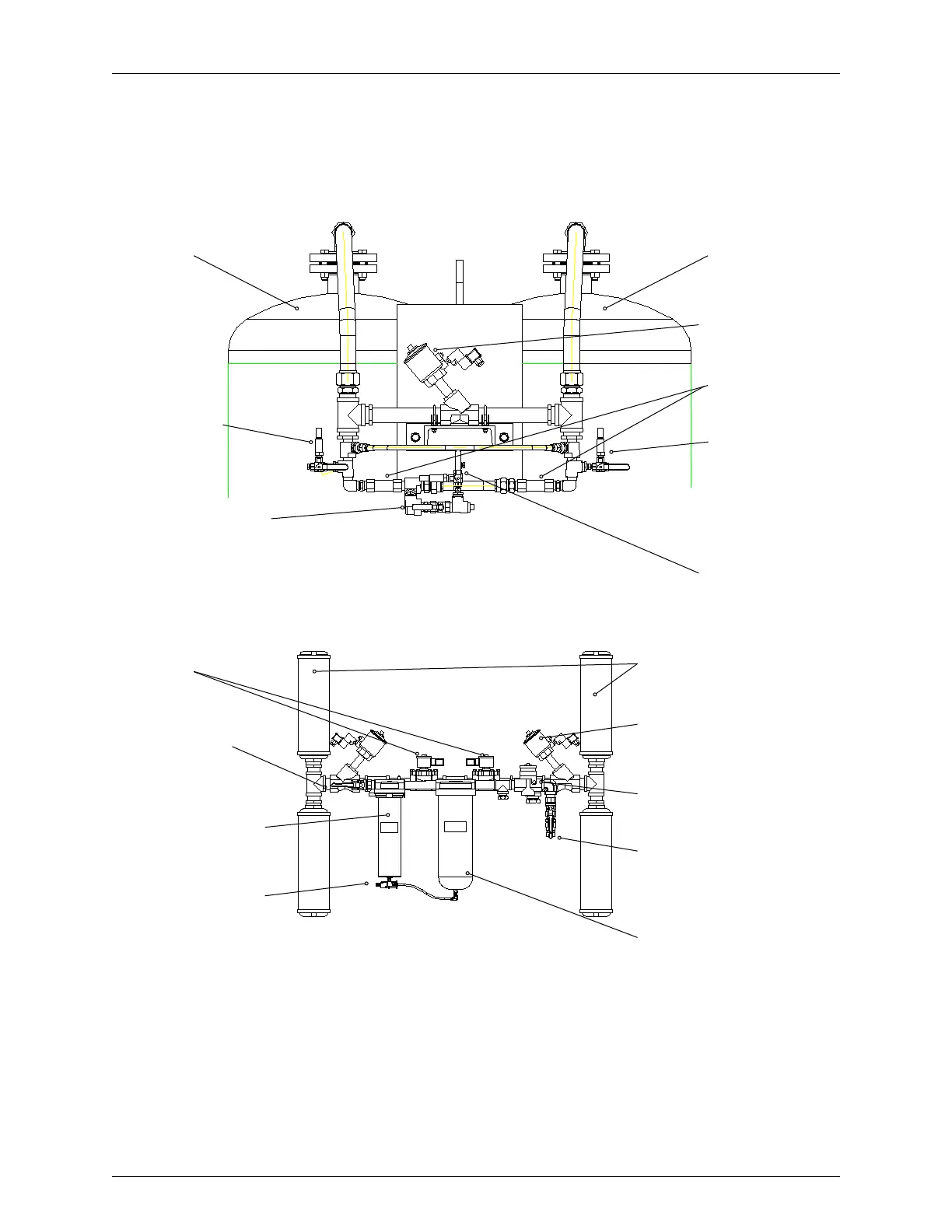

Figure 4.2 below illustrates the manifold components of the oxygen generator. The
location and the presence of components may vary between the various models of
the generator.
Bed A
Feed Valves Mufers
Particulate Filter
Feed Air Regulator
Coalescing Filter
Filter Drain Valve
Manual Air Inlet
Valve (V-2)
Manual Air Inlet
Valve (V-1)
Waste Valve
Bed B
Equalization
Valve
Check
Valves
Pressure
Transducer
PI-2
Pressure
Transducer
PI-3
Pressure
Transducer
PI-1
Manual Product
Valve (V-3)
Figure 4.2: Manifold Components — AS-L Model
