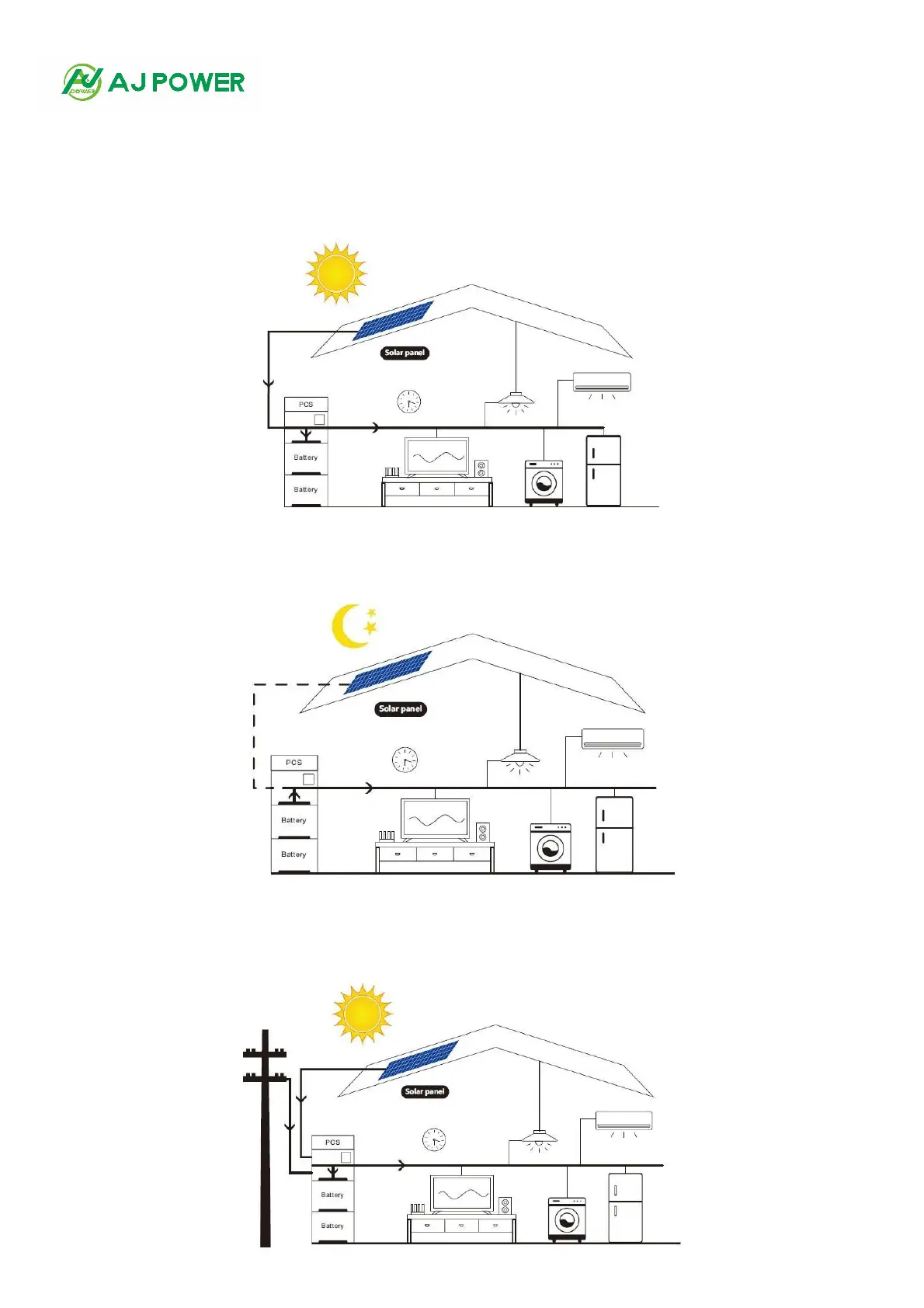

4.1.2 Application Scenarios with Only Photovoltaic but No Mains Power
During the day, the photovoltaic directly supplies power to the loads while charging the battery.
At night, the battery supplies power to the loads through the power module.
4.1.3 Complete Application Scenarios
During the day, the mains and photovoltaic simultaneously charge the battery and supply power to the loads.
