7 System Debugging
7.1 Inspections before Power-On
No.
Inspection items
Acceptance criteria
Validation
1
The energy storage is installed in
place
The installation is correct, secure and reliable.
□Yes □No
2
The installation environment
meets requirements
The installation space is reasonable and the environment
is clean and tidy without any construction remains.
□Yes □No
3
The energy storage power cord is
correctly connected
The positive and negative terminals are connected
correctly without any missing.
□Yes □No
4
The energy storage signal line is
correctly connected
The signal line is connected reliably
□Yes □No
5
The grounding is reliable
The grounding wire is correctly and reliably connected.
□Yes □No
6
The switch of the energy storage
battery module is off
All switches connected to the energy storage are in the
"OFF" state.
□Yes □No
7
All air switches of the power
module are off
All air switches of the power module are in the "OFF"
state.
□Yes □No

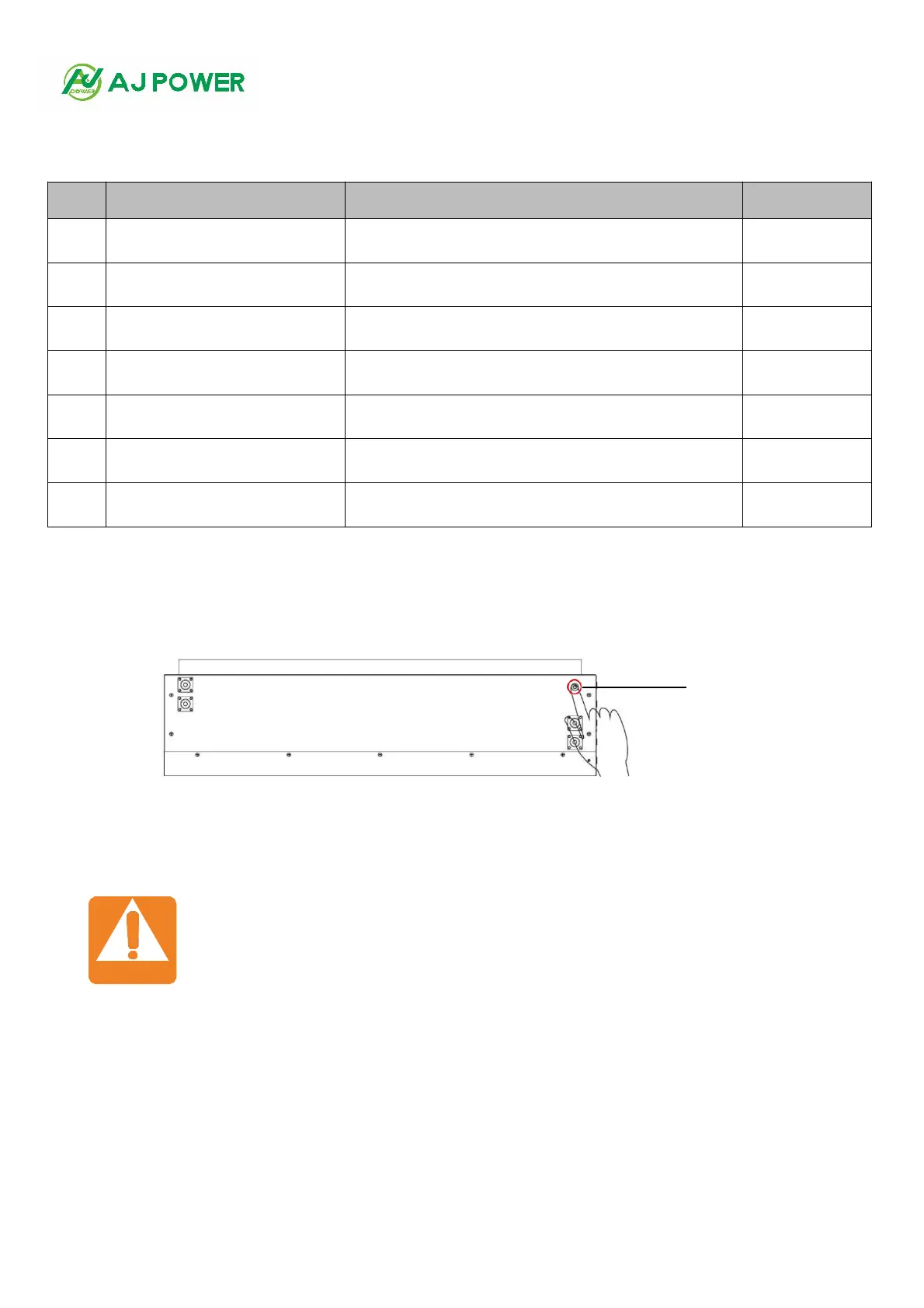

7.2 Power-On of Energy Storage Battery Module
After power-on check and confirmation, first turn on the switch of the energy storage battery module. If there are
multiple modules, please turn on the power switch one by one according to the address sequence.
ON/OFF
8 System Maintenance
8.1 System Power-Off
● After the system is powered off, the case still has residual power and heat, which may cause
electric shocks or burns. Therefore, protective gloves should be worn before operating the energy
storage 5 minutes after the system is powered off. Maintenance operations on energy storage
should be performed only after ensuring that all indicator lights of the energy storage are off.
● When the energy storage system is running, the system cannot be powered off completely
when only turning off the switch of the power unit. At this time, no maintenance operation can
be performed on the energy storage. The switch of energy storage must be turned off before
Power-off operation steps of the system:
Step 1 Turn off the switch between the power unit and AC output.
Step 2 Turn off the switch between the power unit and AC input.
Step 3 Turn off the switch between the power unit and the PV string.
Step 4 Turn off the switch between the power unit and the energy storage battery unit.
CAUTION
