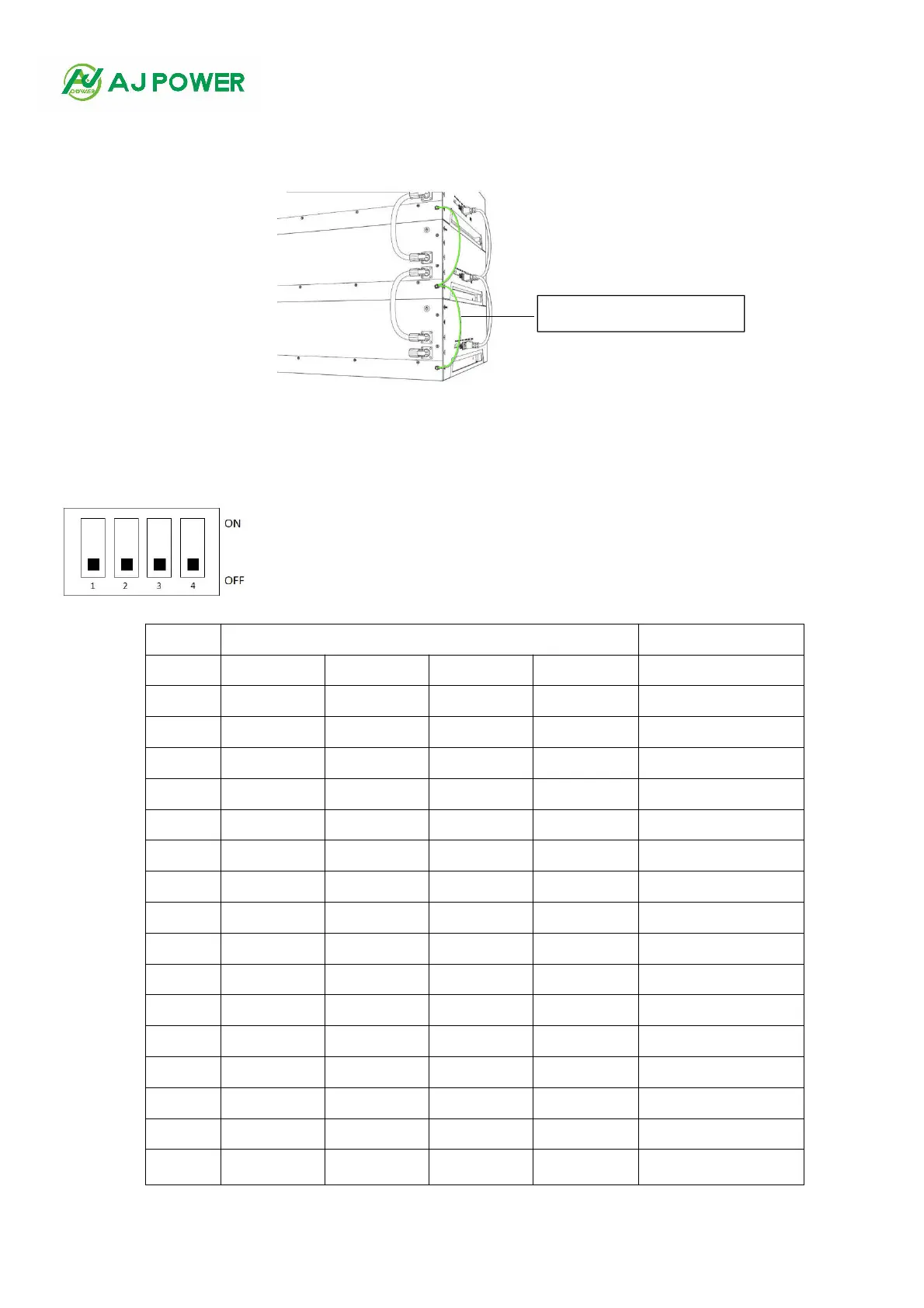

6.2.3 Connecting Grounding Wire
Each energy storage battery module shall be connected with the grounding wire provided with the product together.
6.2.4 Energy Storage Battery Module Address Setting
If multiple energy storage battery modules are used in parallel, the address of the energy storage battery module needs
to be set. The address is set to 1~4, and the address of each module cannot be repeated.
Address
Dial switch position
Explanation
#1
#2
#3
#4
0
OFF
OFF
OFF
OFF
Set to Pack0
1
ON
OFF
OFF
OFF
Set to Pack1 (host)
2
OFF
ON
OFF
OFF
Set to Pack2
3
ON
ON
OFF
OFF
Set to Pack3
4
OFF
OFF
ON
OFF
Set to Pack4
5
ON
OFF
ON
OFF
Set to Pack5
6
OFF
ON
ON
OFF
Set to Pack6
7
ON
ON
ON
OFF
Set to Pack7
8
OFF
OFF
OFF
ON
Set to Pack8
9
ON
OFF
OFF
ON
Set to Pack9
10
OFF
ON
OFF
ON
Set to Pack10
11
ON
ON
OFF
ON
Set to Pack11
12
OFF
OFF
ON
ON
Set to Pack12
13
ON
OFF
ON
ON
Set to Pack13
14
OFF
ON
ON
ON
Set to Pack14
15
ON
ON
ON
ON
Set to Pack15
Connect The Signal Cable
