6.2
Internal Electrical Connection of Energy Storage

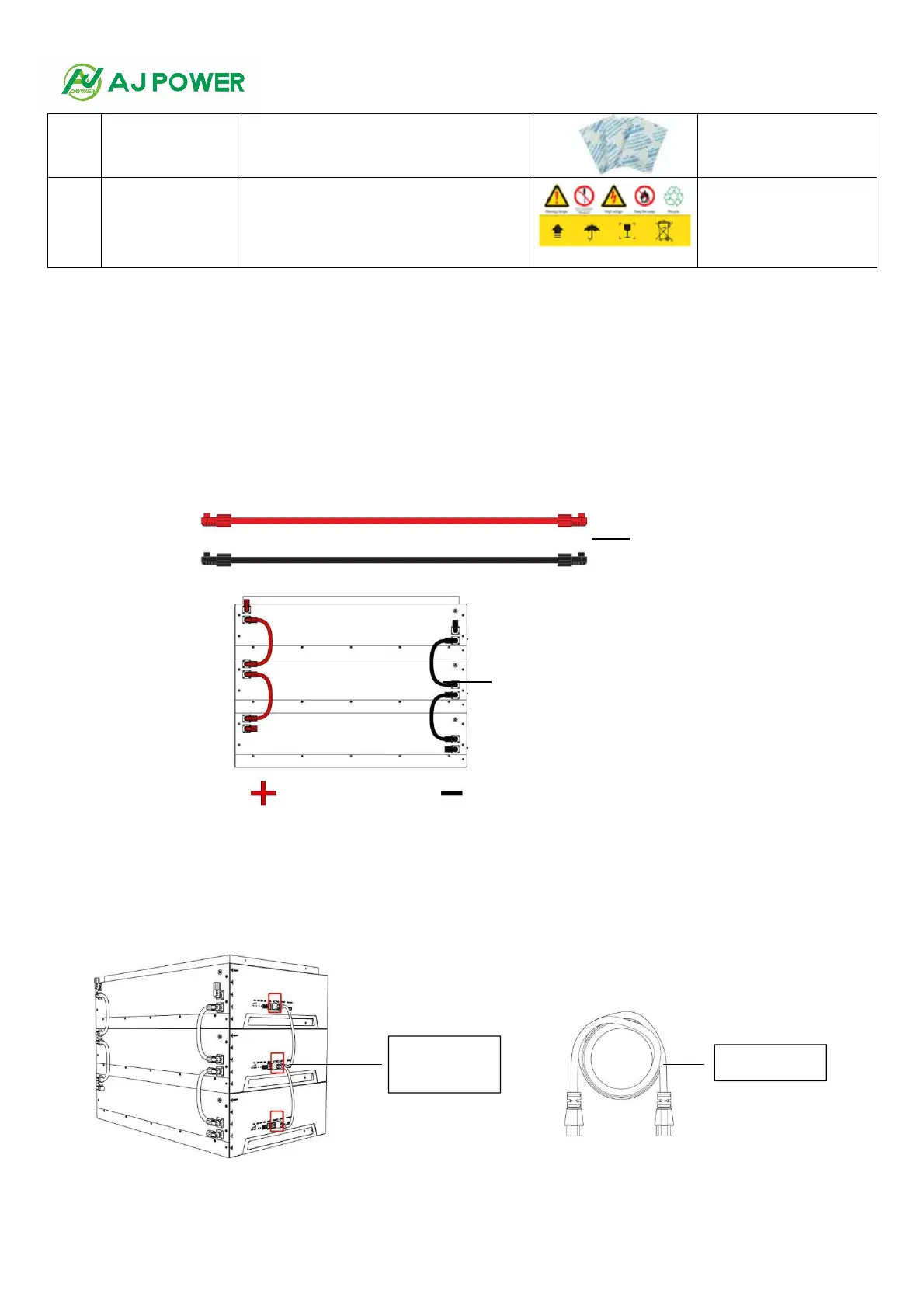

6.2.1 Connecting Power Cord
Before connecting the energy storage battery module, ensure that the energy storage battery is not working and the
indicator lights on the battery are OFF. The power cord delivered with the product together should be used to connect the
positive and negative terminals of other batteries or power modules. It shall be noticed that the red cable should be
connected to the red terminal (positive battery terminal) and the black cable to the black terminal (negative battery terminal).
Power Cable
Connect The Power Cable
6.2.2 Connecting Signal Line
The signal line delivered with the product together shall be used to connect each energy storage battery module.
