6 Electrical Connection
Before electrical connection, please ensure that the switches of the energy storage and power
module and all switches connected to the energy storage are in the "OFF" state, and the power
module is in the OFF state. Otherwise, the high voltage of the device may cause electric shock.
● The device damage caused by incorrect wiring is not covered in warranty scope of the device.
● The operations related to electrical connections must be carried out by professionalelectrical
technicians.
● When carrying out electrical connections, the operator must wear personal protective articles.

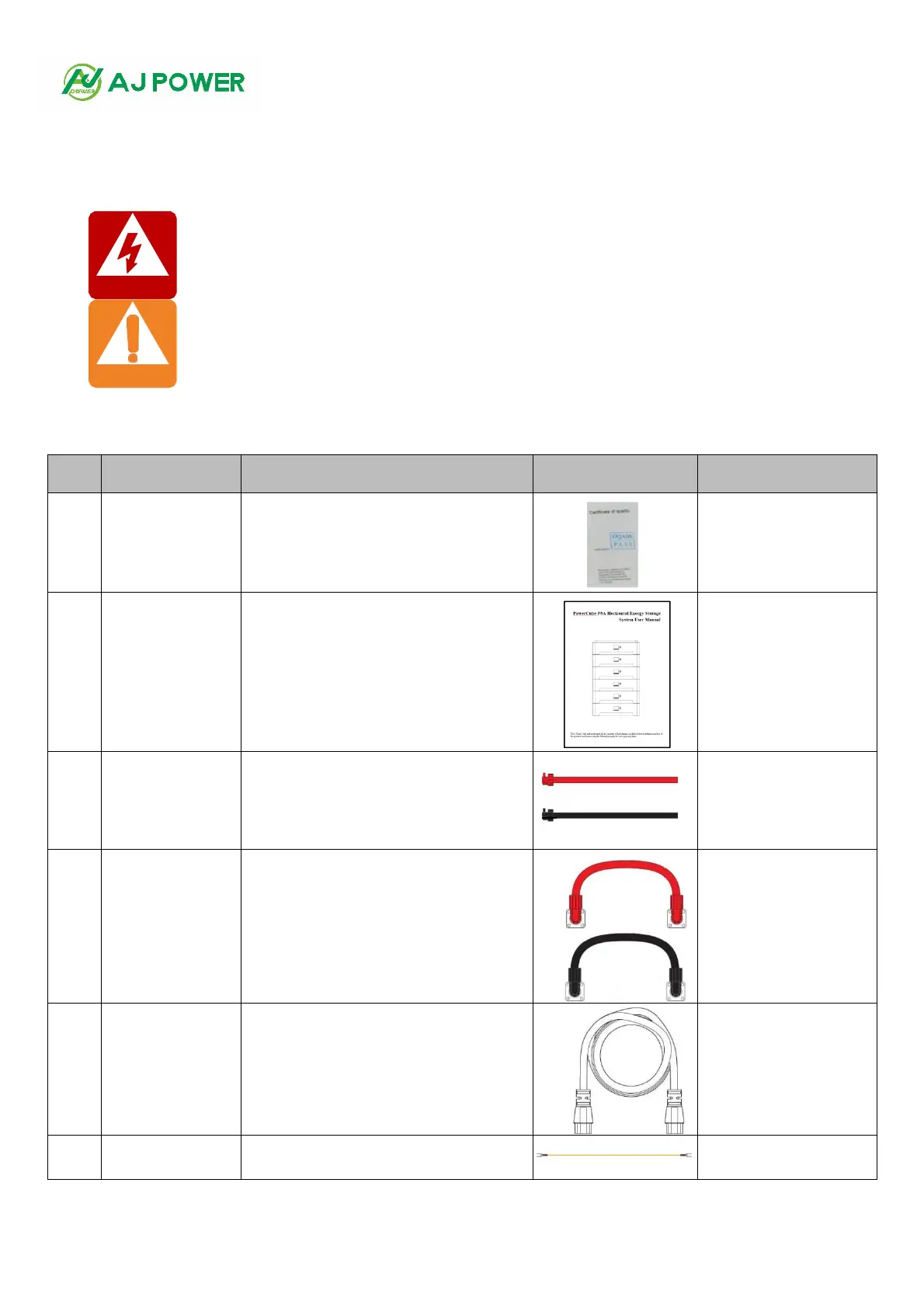

6.1 List of product accessories
No.
Cables
Description
Recommended
specifications
Source
1
Certificate of
approval
The Product Quality Act clearly
stipulates that all products must be
inspected and labeled as qualified before
leaving the factory
Provide with the product
together
2
User Manual
Instructions and precautions for use
Provide with the product
together
3
Positive and
negative
outgoing lines
Connecting line between battery and
inverter,length is 1.5m
Provide with the product
together
4
Parallel
connection cable
of energy storage
Power cable between the storage battery
modules,length is 30cm
Provide with the product
together
5
Signal line of
energy storage
Two types singal cable between the
storage battery modules,quantity of
cable depends on battery, length is
1.5m&30cm
Provide with the product
together
6
Ground wire
Ground cable between the storage battery
modules,length is 1.5m
Provide with the product
together
DANGER!
CAUTION
