AP-Q41/C
3.

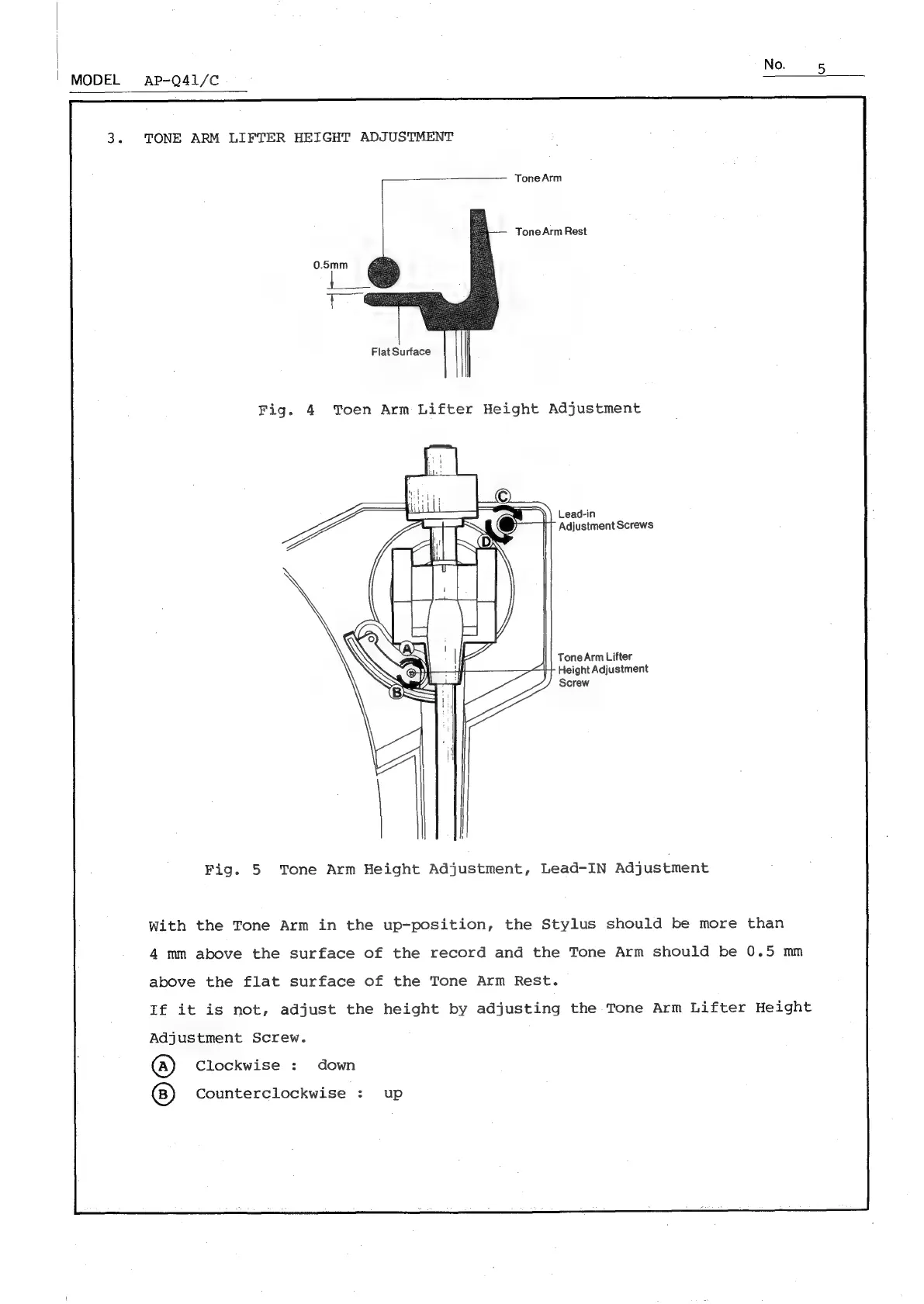

TONE ARM LIFTER HEIGHT ADJUSTMENT
Tone Arm
Tone Arm Rest
Flat Surface
Fig. 4 Toen Arm Lifter Height Adjustment
Lead-in
Adjustment Screws
ToneArm Lifter
Height Adjustment
Screw
Fig. 5 Tone Arm Height Adjustment, Lead-IN Adjustment
With
the
Tone
Arm
in
the
up-position,
the
Stylus
should
be
more
than
4
mm
above
the
surface
of
the
record
and
the
Tone
Arm
should
be
0.5
mm
above
the
flat surface
of
the
Tone Arm
Rest.
If
it
is
not,
adjust
the
height
by
adjusting
the
Tone
Arm
Lifter
Height
Adjustment
Screw.
(a) Clockwise : down
Counterclockwise : up
