SPX+ Introduction Manual - updated until firmware 4997
- 22 -
Expansion Units
If you have an expansion unit connected and sensors on the expansion board, they will be also listed
in the System Name Information window as shown below. If you have a BEB unit, please refer to that
separate manual titled SPX+ BEB Units. BEB units are NOT supported on the SP2+, only on the
SPX+ units. E-sensor8 & E-opto16 expansion units are supported on the SP2+ and SPX+.

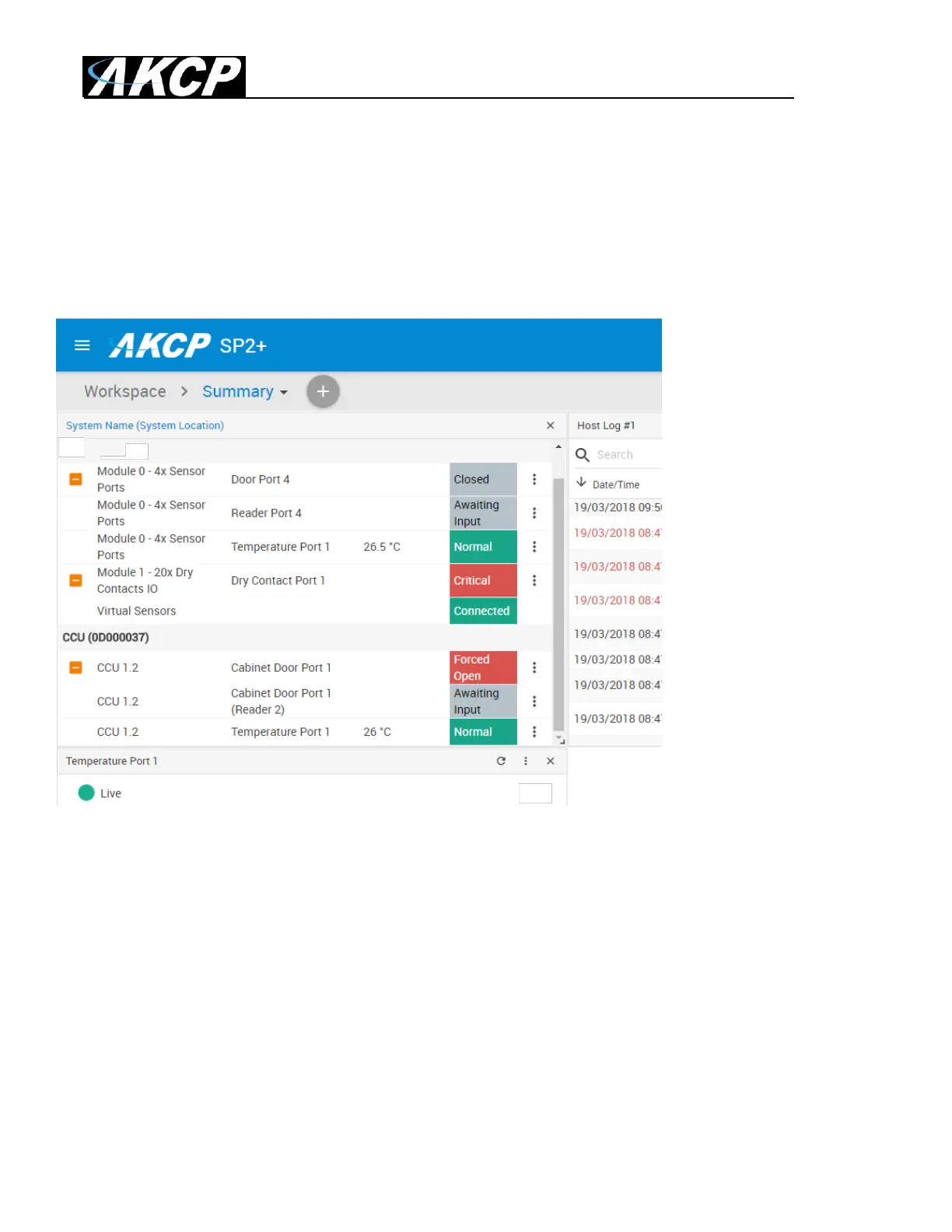

In the picture above we have a CCU (Cabinet Control Unit) connected as an expansion board, with
an additional Temperature Sensor connected to one of its ports.
The base unit (listed as System Name) can be changed by clicking on the link also has a
Temperature Sensor connected to Port 1.
