SPX+ Introduction Manual - updated until firmware 4997
- 73 -

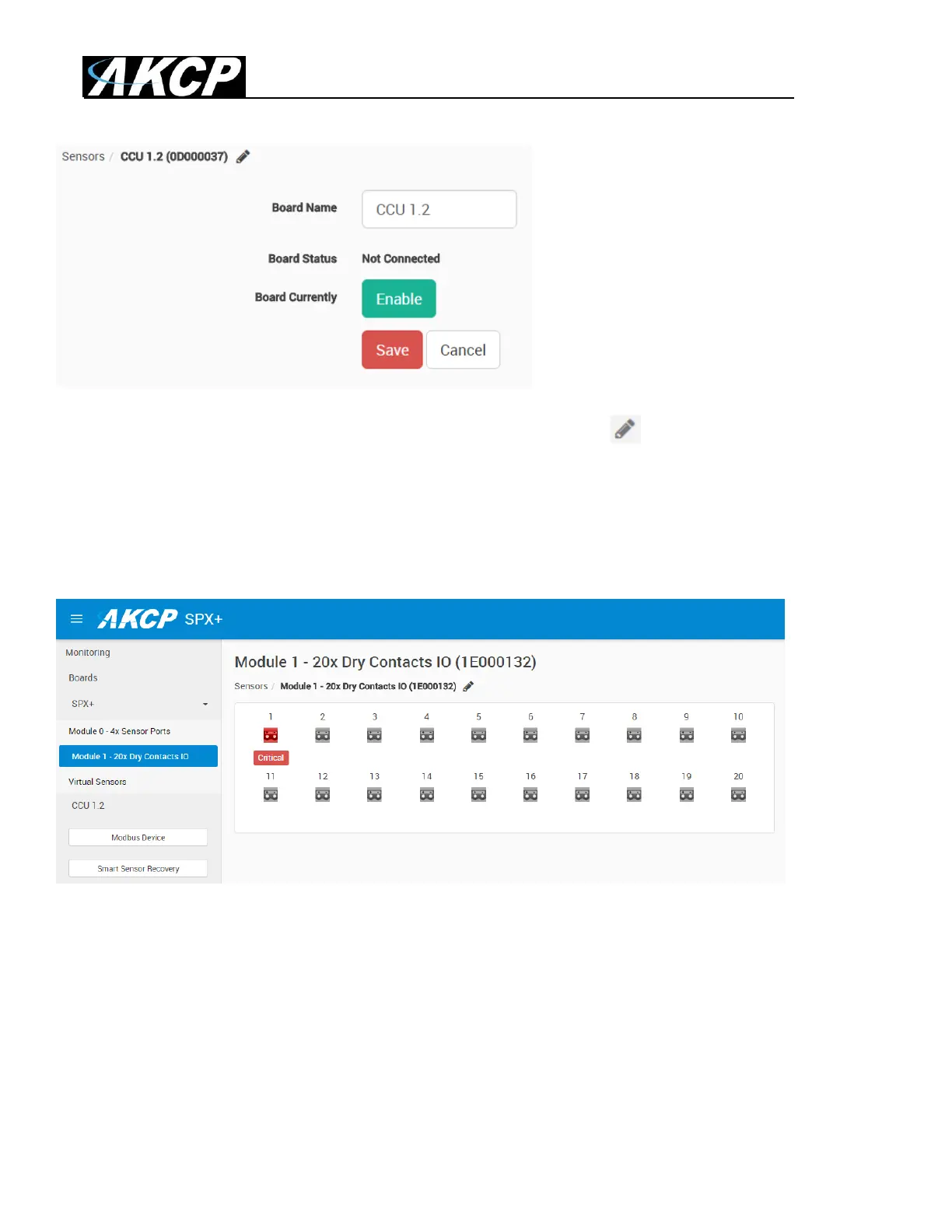

You could modify a connected board by clicking on the pencil icon:
From here you can rename any board, and disable a disconnected expansion board.
The SPX+ units can have extra Dry Contact boards attached. We’ll describe more about the Dry
Contacts below in another section of this manual; their management is similar to the relay sensor
types.
Please note the maximum supported cable length to use with Thermal Map Sensors:
Maximum extension cable length from the SP+ sensor port to the TMS using CAT5 = 28 Feet
Maximum extension cable length from the SP+ sensor port to the TMS using CAT5e & CAT6 = 60
Feet
Important note: If you're using analog pins on the sensor ports (with manually on-lined DCV sensors,
and pin 7 of the RJ45 connector) make sure that the voltage doesn't exceed 3 Volts. Otherwise you
can damage the unit!
