Replacing the feed roller tires

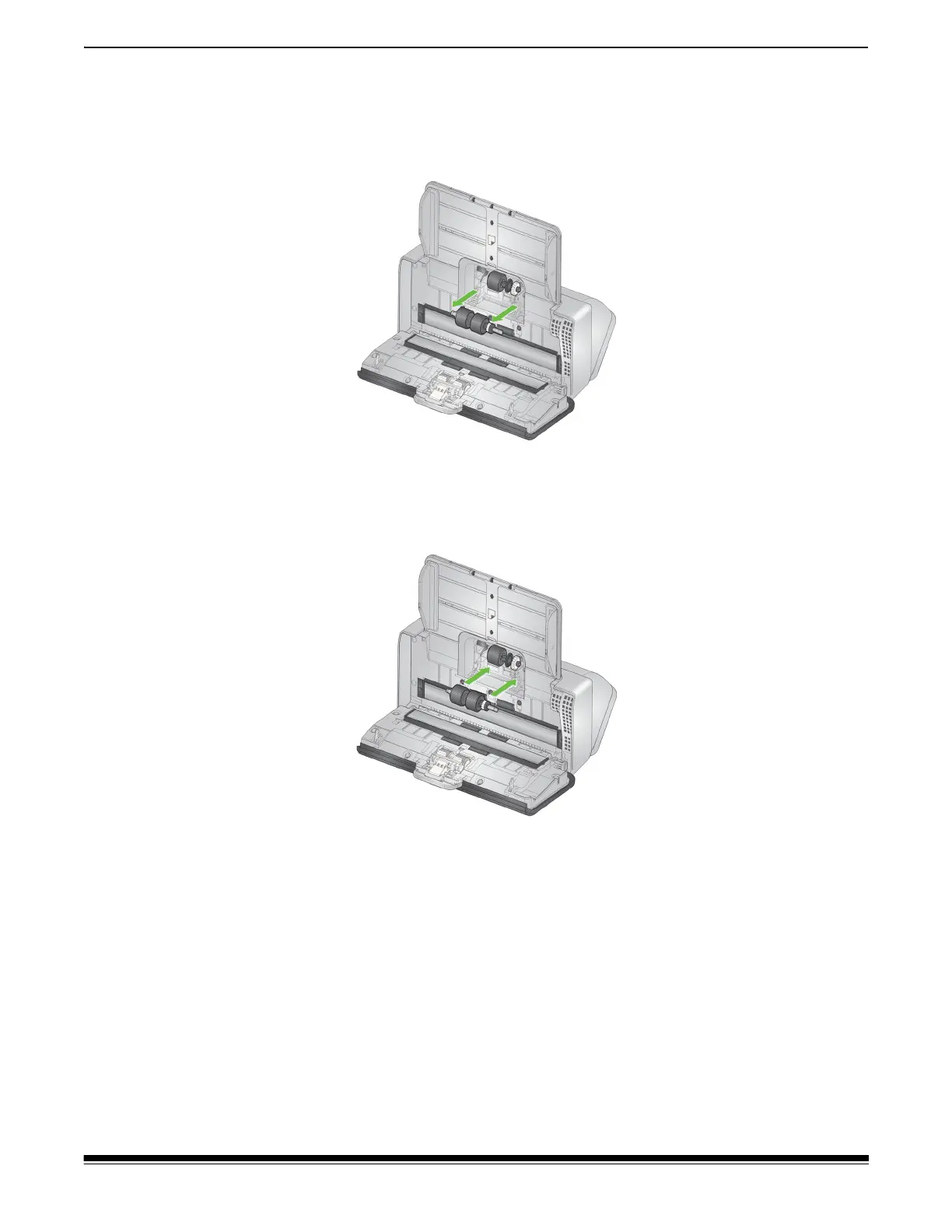

1. Rotate the feed roller so the pin is aligned with the open slot. The
roller rotates in only one direction. Use the white gear at the end to
rotate the roller. When the pin is aligned properly, lift the roller out of
position.
2. Remove the feed roller and replace the tires.
3. Reinstall the new feed roller: align the pins with the open slots and
fit the roller into position. Be sure the gears are aligned and the
roller drops into place.
