Chassis and Power Supplies Mounting the Switch
OmniSwitch 6570M Hardware Users Guide December 2022 page 3-11
5 Once the screws at the bottom of each bracket are secure, install the remaining two rack mount screws.
Be sure that all screws are securely tightened.

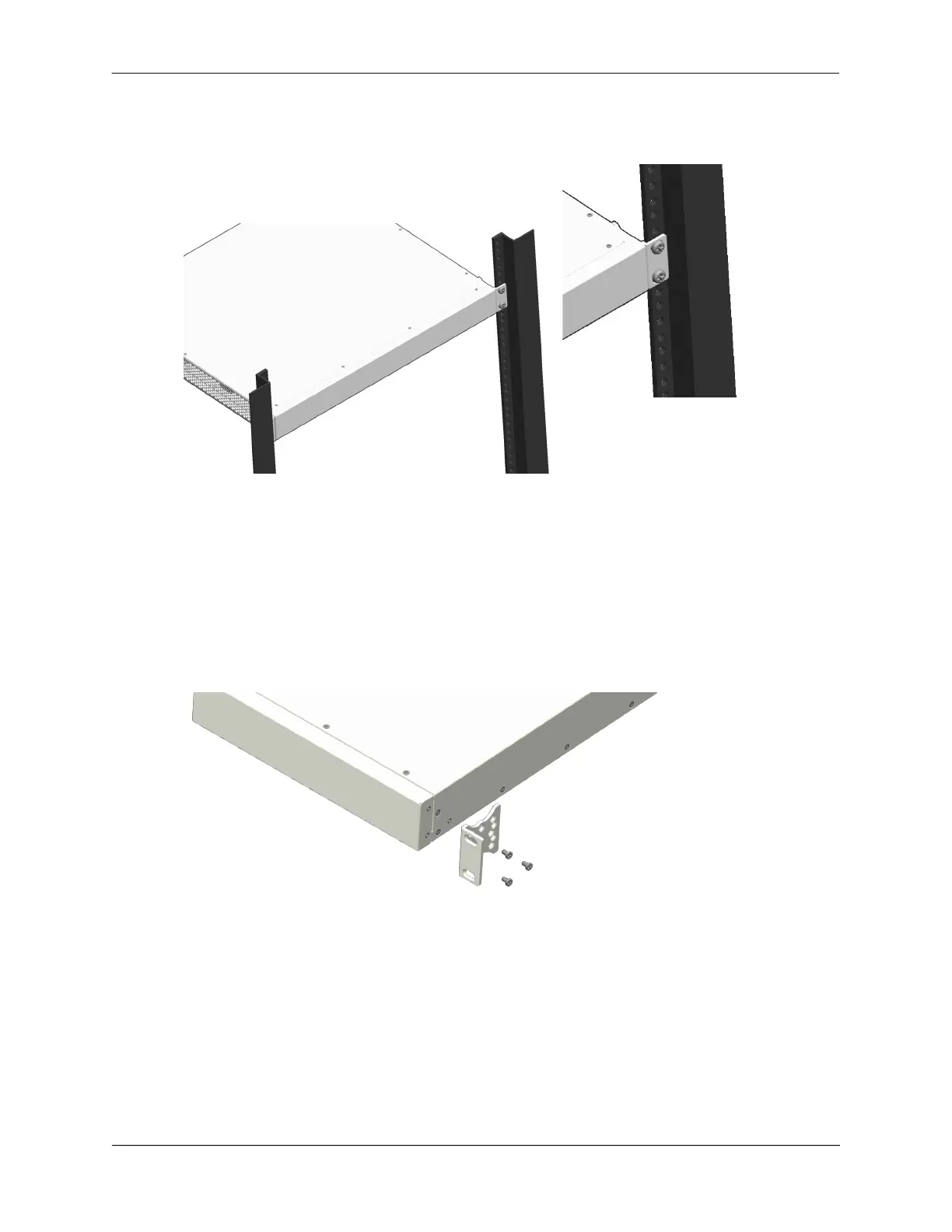

Rack Mounting Steps (One Half-width Chassis - OS6570M-RM-19-L Kit)
A single chassis can also be mounted into a standard 19-inch rack using L-brackets, as shown in the figure
below.
1 Attach rack mount brackets to both sides of the front of the chassis.The long and short bracket can be
mounted on either side of the chassis.
Attach Rack Mount Brackets
