Chassis and Power Supplies Power Supplies
OmniSwitch 6570M Hardware Users Guide December 2022 page 3-25
Installing Power Supply Trays
Note. The same power supply tray is used for both AC and DC power supplies. Use the supplied cable ties
to secure the power supply cables.
1 Attach the power supply tray to the chassis using the provided screws (4).
2 Mount the power supply to the tray and secure with the power supply bracket using the provided
screws (2).
3 Attach power supply tray cover with screws (2).
4 Properly secure all cables using the supplied cable ties.

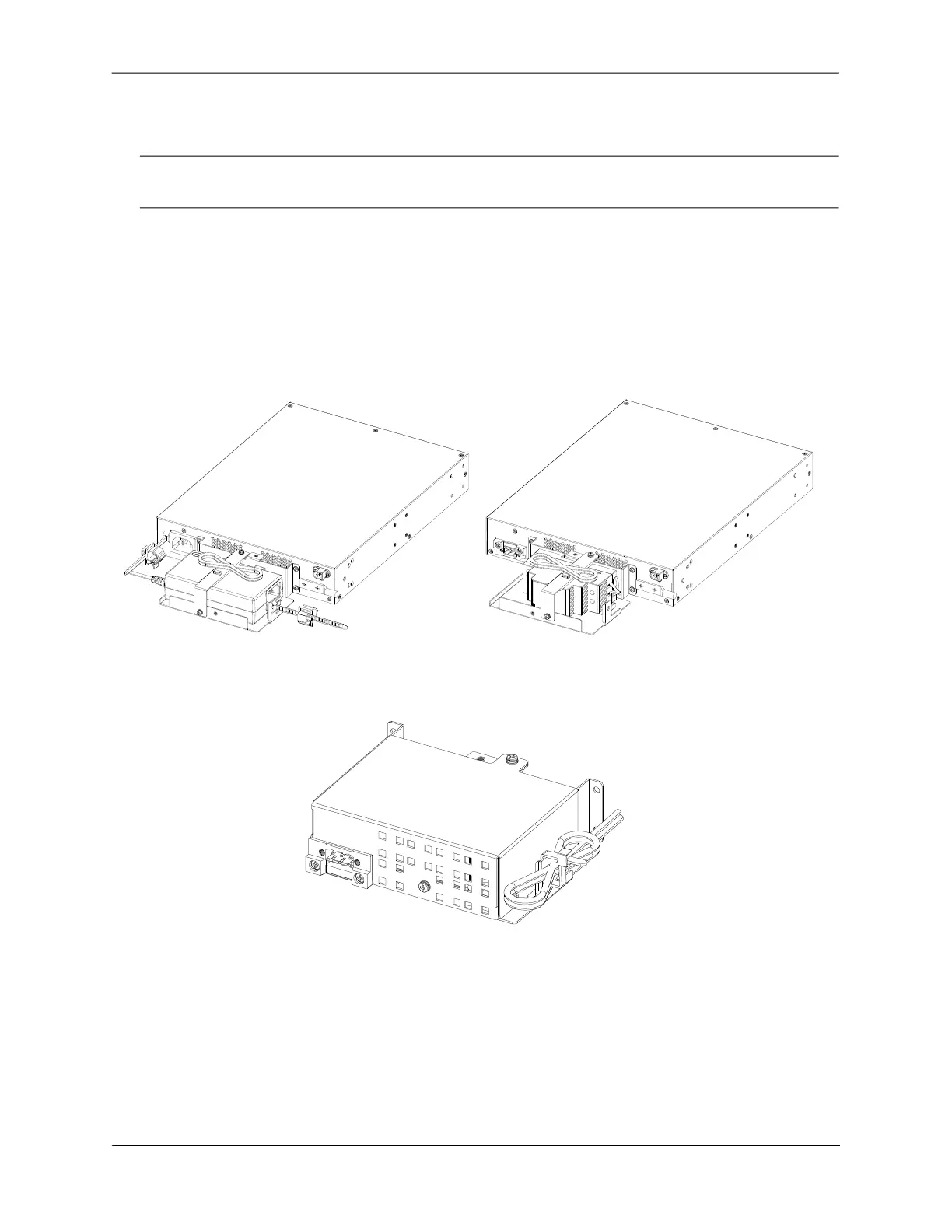

Mounted Power Supplies and Trays
AC Power Supply
DC Power Supply
Power Supply With Cover
