OmniSwitch 6450 Chassis and Hardware Components OmniSwitch 6450-P24
OmniSwitch 6450 Hardware Users Guide September 2015 page 3-17

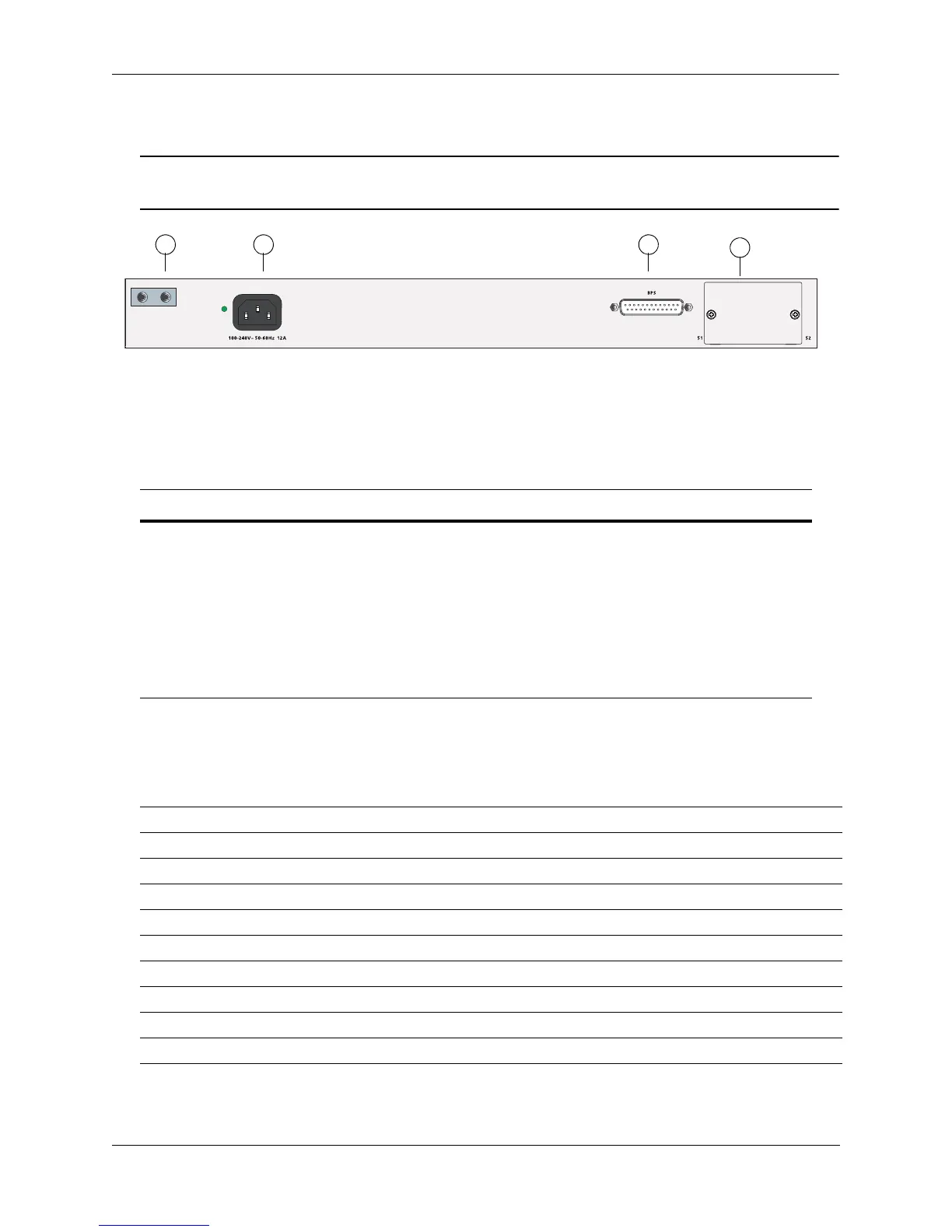

OmniSwitch 6450-P24 Rear Panel
Note. The figure shows a pre-production version of the chassis without product, safety, and compliance
information labels. All production versions of the chassis have these labels.
OmniSwitch 6450-P24 Rear Panel
OmniSwitch 6450-P24 Internal AC Power Supply
Item Description
A
Grounding Block
Type LCD8-10A-L grounding lug
B
Power Supply Connector
Internal AC power supply.
C
External Backup or PoE Power Supply Connector
D
Expansion Module Slot
P/S Component Description
Model Internal AC Power Supply
Provides System/PoE Power For OmniSwitch 6450-P24
Input Voltage Range 100-240 VAC
Rated Frequency 50 to 60 Hz
Maximum System Power 120 W
Maximum PoE Power 410 W
Maximum Output Power 530 W
Output Voltage 12.0 VDC / 54.5 VDC
Output Current 10.0 A / 7.6 A
A
D
B C
