MicrowaveradiorelaylinkZENITH80 
 39/52 1.2


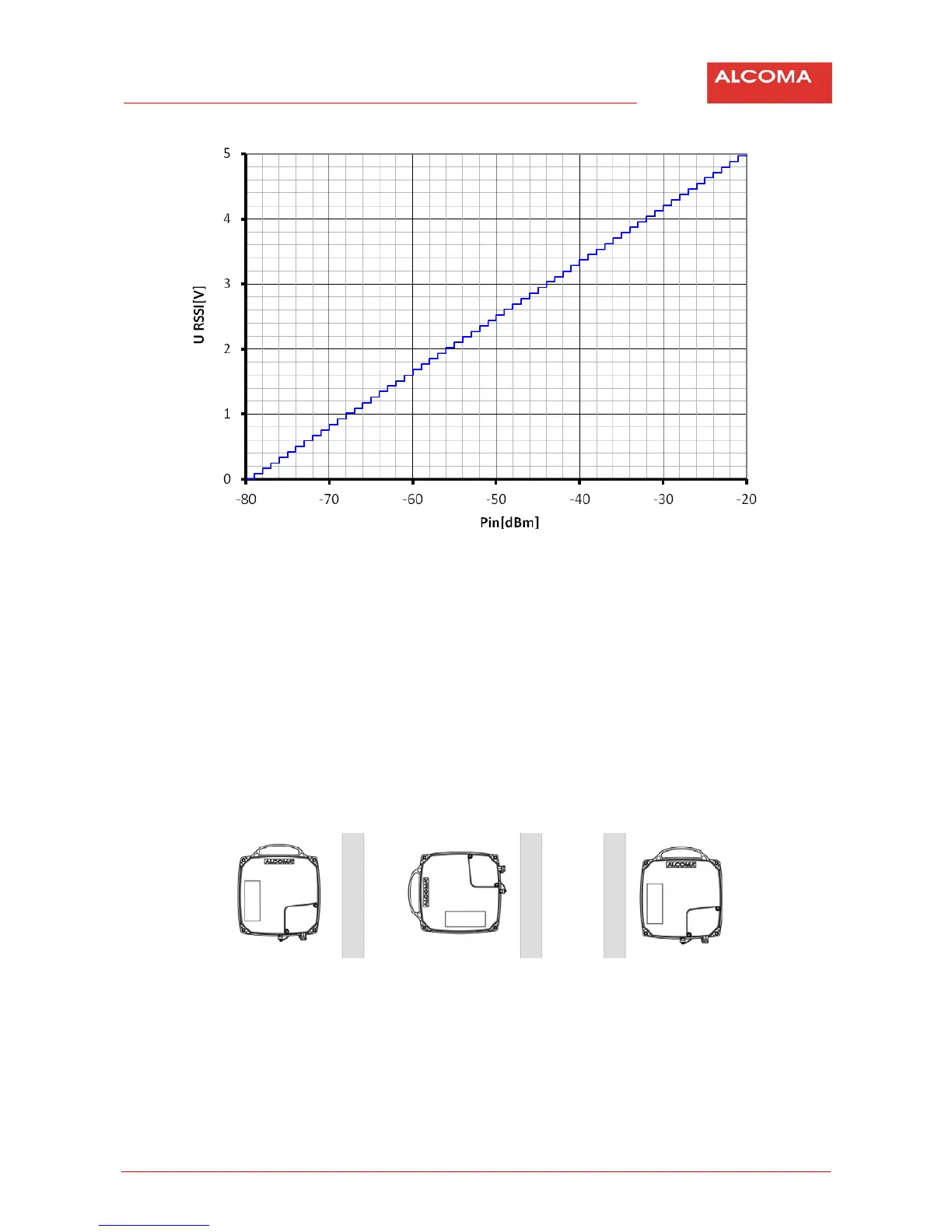

Figure26 TheRSSIcalibrationgraph
Changeofpolarization
PolarizationischangedbyrotationofODUby90°.
• Loosen4latchesattachingODUtotheantenna.
• RotateODUby90°totheleftortotheright.Grommetofinterconnectcablemustpointdownfor
horizontalpolarizationanttothesideforverticalpolarization–seefigure27.

• AttachODUtotheantennaby4latches.
• RighthandorlefthandODUinstallationcanbedeterminedaccordingtotheODUpositiontothe
supportingpipewhilelookingtotheparabolafromthefrontside.


Figure27 SettingofpolarizationforZENITH80

Horizontalpolarization
RighthandODUinstallation
Verticalpolarization
RighthandODUinstallation
Horizontalpolarization
LefthandODUinstallation
