Residential HRV/ERV
24

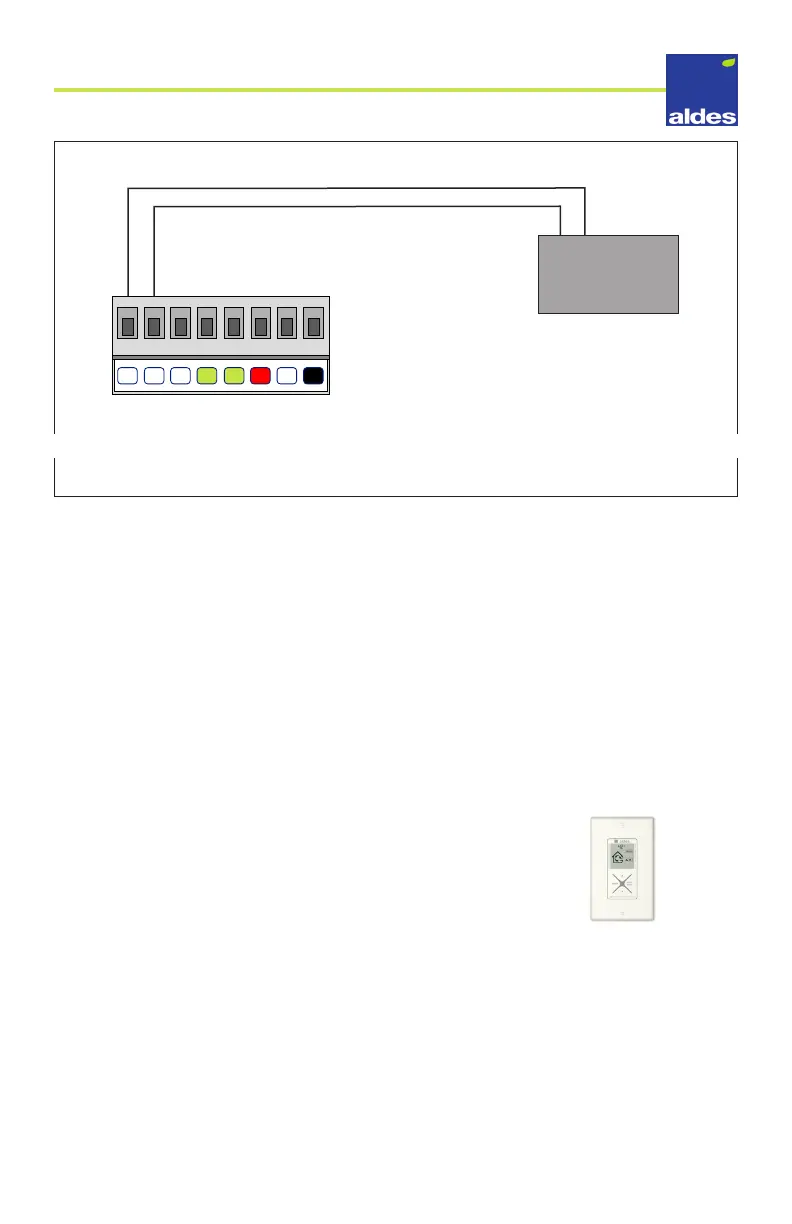

Interlocking with Air-Handler/Furnace Blower
Wiring to the Power Source
Once all the ducts are installed and the wires for the controllers are connected, the HRV/ERV
may be connected to a standard 120V power outlet with ground. Unit comes with 3’ cord.
Receptacle must be used. DO NOT USE AN EXTENSION CORD.
If further wiring is required, have a licensed electrician make all electrical connections. It is
recommended that a separate 15 amp/120 volt circuit be used.
Installing the Digital Multifunction Control (P/N 611242-FC)
The Digital Multifunction Controller is an advanced wall control that offers the user many
different ways of operating the HRV/ERV, including an Automatic mode that uses a high-
accuracy, fast response humidity sensor to remove excess humidity from the home.
The Digital Multifunction Control (P/N 611242-FC) can be
used with any type of Aldes Residential HRV/ERV. The con-
troller should be installed in the place where excess humidity
is most likely to be detected, for example near a bathroom,
kitchen or in the basement. Ensure good air circulation around
the controller. Do not place it behind a door, for example.
Please refer to the controller’s documentation for detailed
mounting and operating instructions. Note that the Automatic dehumidistat mode is
intended to be used when the outdoor air has less moisture content than the indoor air. Turn
off the Automatic mode when outdoor air is hot and humid.
CAUTION: Turn o power to avoid risk of malfunction.
To connect the Digital Multifunction Control to the HRV/ERV, please refer to the following
diagram:
TERMINAL BLOCK
8
7 6
2
1
345
HVAC AHU
START
COM
NC
GRN
GRN
RED
BLK
NO
WHT
Multifunction Control
(P/N 611242-FC)
To Next Page
