aldes H/E95 - Airstream Connection Adjustments

Residential HRV/ERV
34
1. To Adjust SUPPLY (FAN IN) air stream: Connect the tubes like the diagram below shows,
then turn the FAN IN potentiometer to the desired level.
2. Adjust the EXHAUST (FAN OUT) air stream: Connect the tubes like the diagram below
shows, then turn the FAN OUT potentiometer to the desired level.

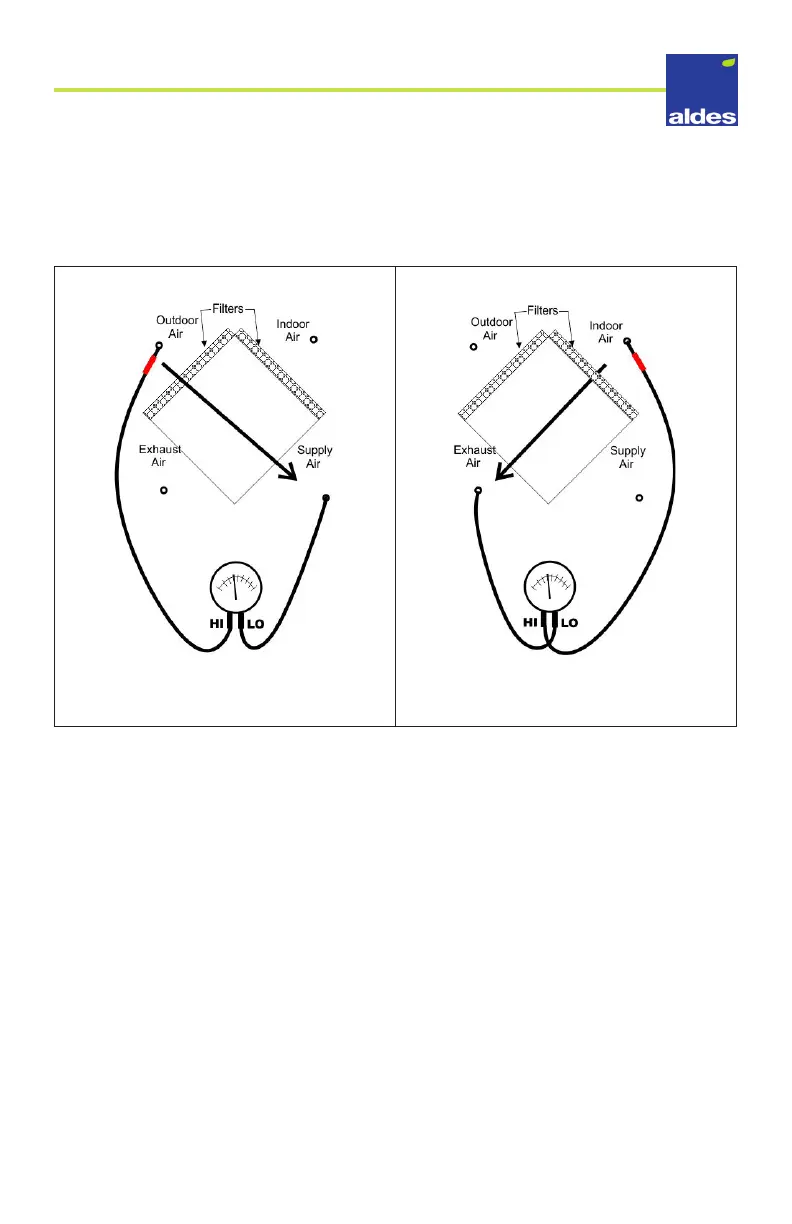

Supply Airstream Connections Exhaust Airstream Connections
3. Repeat the airow measurement and adjustment until the desired supply and exhaust
airows are obtained.
4. Remove all tubing and replace the plugs in the door ports.
