Assembly
WARNING!
Risk of injury!
Incorrectly assembling the table saw can result in serious injury.
− Before start-up, assemble the table saw properly and completely,
including all covers and safety devices.
− Do not in any case insert the mains plug in the socket until you have
completed assembly.

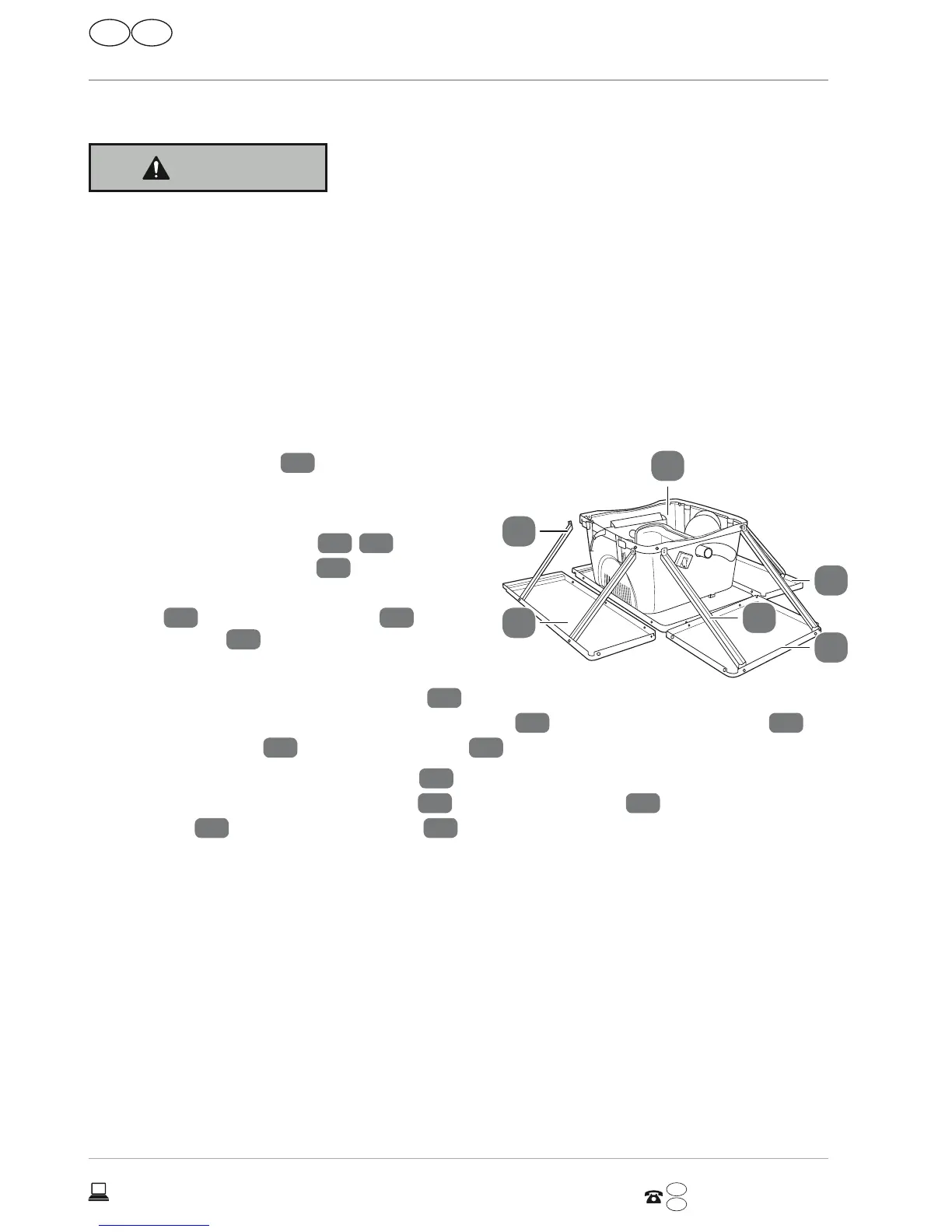

Mounting the table extensions
1. Turn the saw table
1
over and place it on
the floor.
2. Loosely attach the two
table width extensions
4
/
5
and the
table length extension
6
onto the saw
table using two M6×16mm hexagon bolts
each
17
, two spring washers
18
and two
flat washers
19
. Use the corresponding
threaded drill holes on the saw table for this.
8
7
6
5
4
1
3. Attach the four short table supports
8
loosely onto the two table width
extensions using one M6×12mm hexagon bolt
16
each, one spring washer
18
,
two flat washers
19
and a hexagon nut
20
.
4. Attach the two long table supports
7
loosely onto the table length extension
using one M6×12mm hexagon bolt
16
, one spring washer
18
, two flat
washers
19
and one hexagon nut
20
.
5. Align the table width extensions and the table length extension so that they are
level with the saw table and tighten all existing connections.
