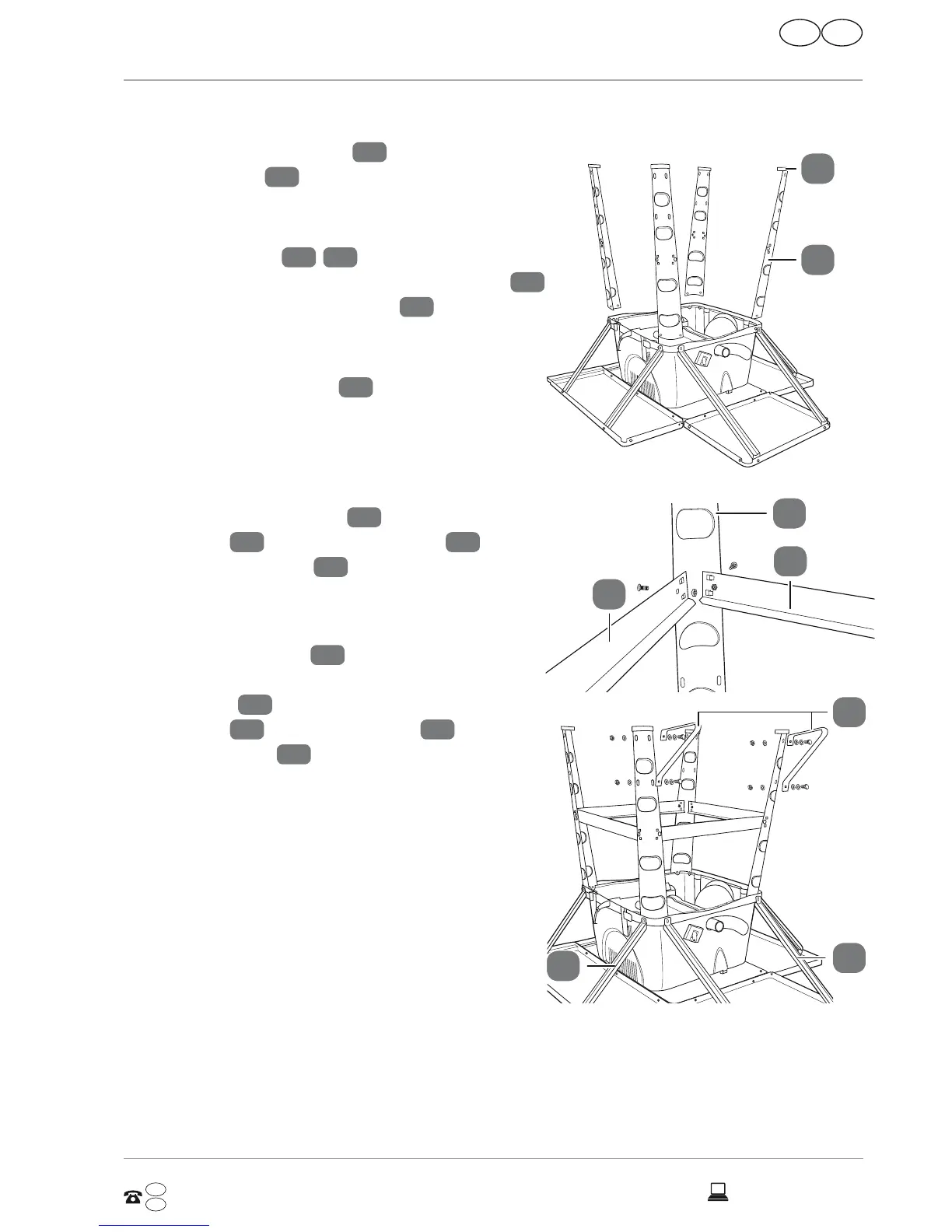

Mounting the support legs
1. Attach one rubber foot
14
to each of the
support legs
13
.
2. Attach the four support legs
and the free ends of the six
table supports
7
/
8
loosely onto the saw
table using two M6×16mm hexagon bolts
17
each and two large washers
21
. Use the cor-
responding threaded drill holes on the saw
table for this.
3. Attach a centre brace
9
between the two
support legs by inserting the retaining lugs
on the ends of the centre brace through the
fixing holes on the support legs and clamp-
ing them in place.
4. Use two carriage bolts
15
, two flat
washers
19
, two spring washers
18
and
two hexagon nuts
20
to secure each of the
centre braces on the support legs.
13
14
5. Now tighten all existing connections.
6. Mount a tip guard
12
on each of the two
back support legs using two M6×12mm hexa-
gon bolts
16
each, two spring
washers
18
, four flat washers
19
and two
hexagon nuts
20
.
7. Carefully turn the saw table over and set it
upright with its support legs on the ground.
9
9
13
12
7
8
