PODD – Installation, Operation and Maintenance Manual
A l e n c o n S y s t e m s L L C - P a g e | 17
7.2.3 Mounting Procedure
To install the PODD in the field:
1. With the Unistrut© support structure already in place, hang the PODD mounting bracket
on the top channel.

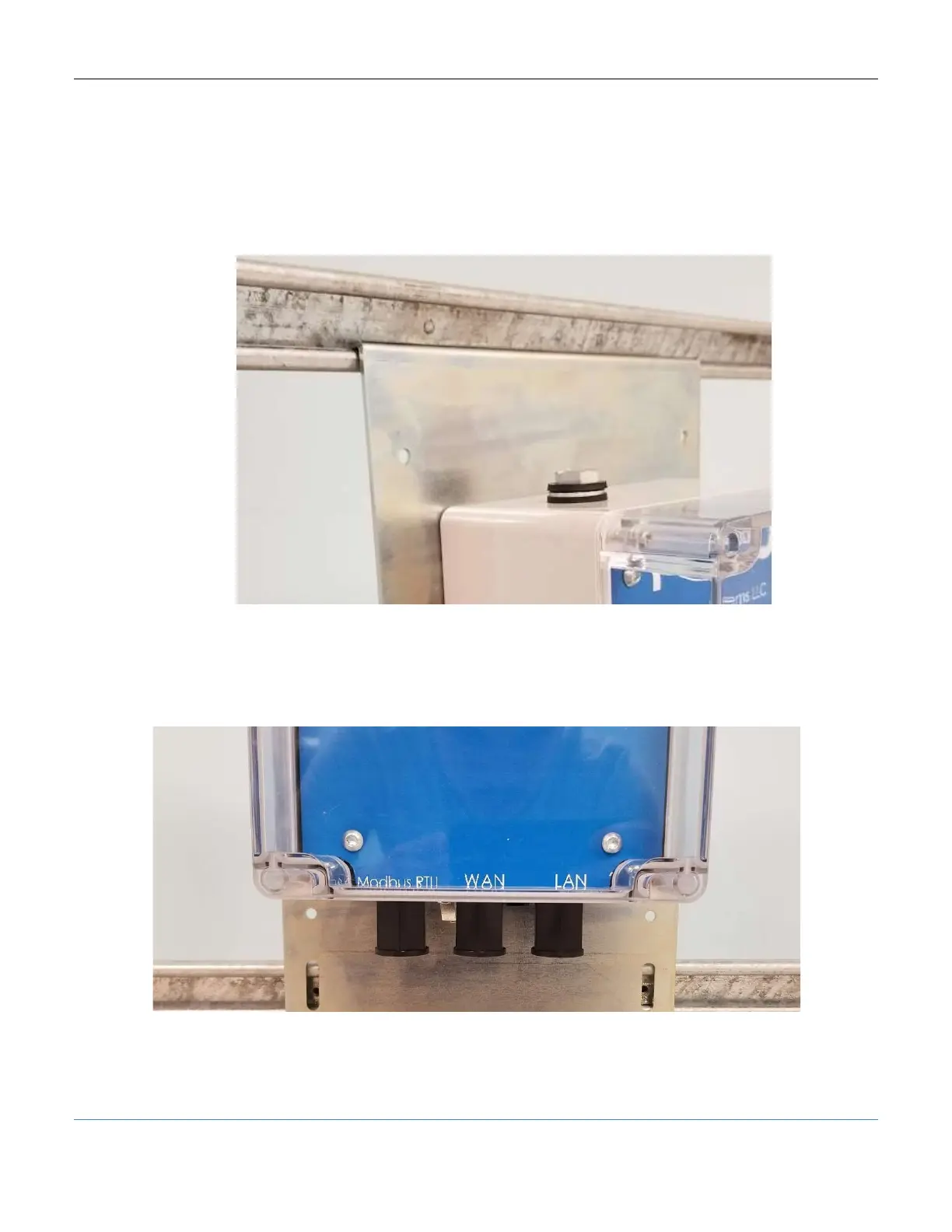

Figure 11: Hook shaped PODD mounting bracket on Unistrut© support
2. Next, align the bottom mounting holes on the PODD bracket with the bottom channel
and struct channel nuts.
Figure 12: Struct channel nuts alignment with PODD mounting bracket
