Alesis Vortex Wireless 2 Service Manual

Spare Parts List
36

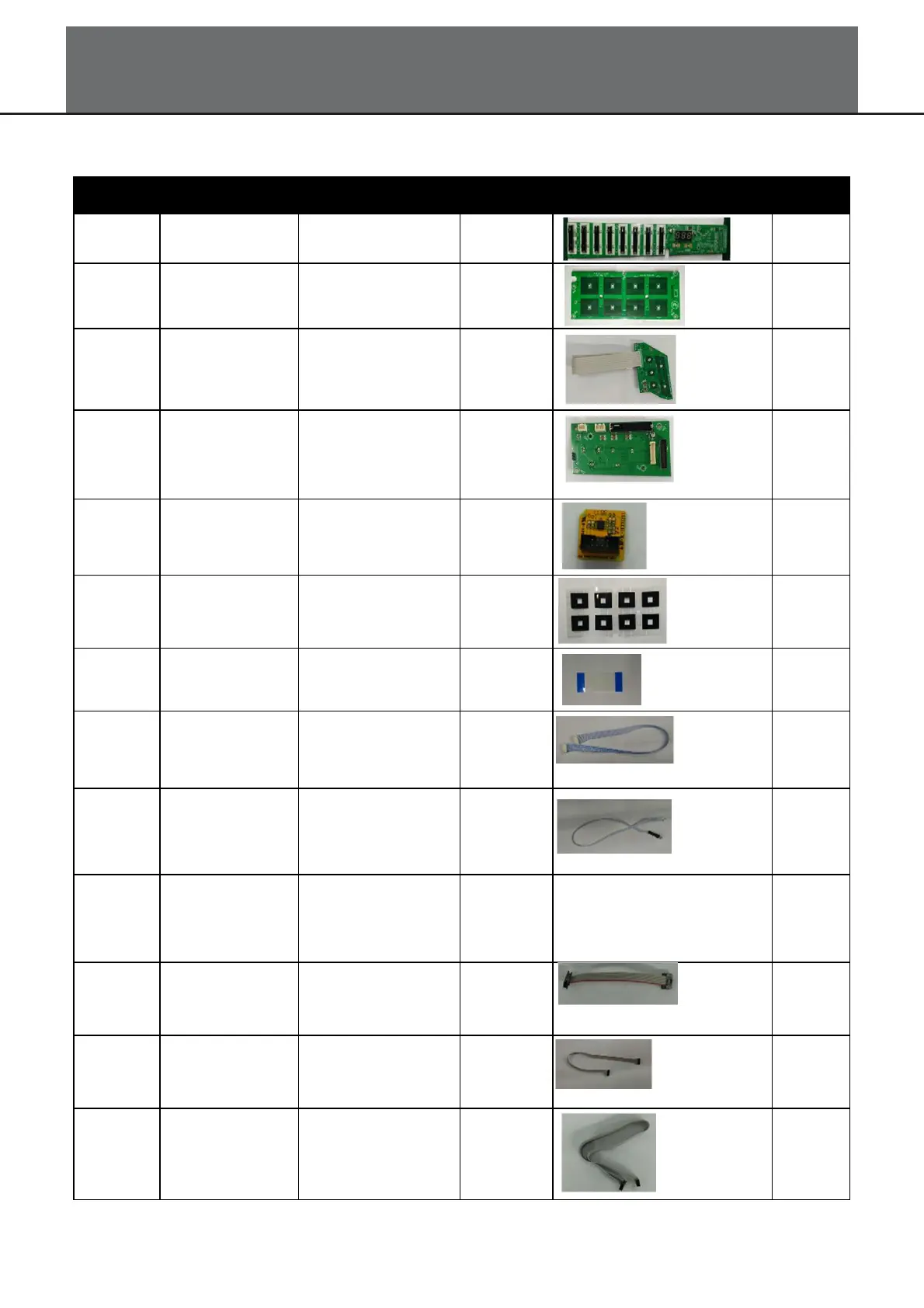

Parts Number Parts Name Parts Specification Quantity Picture/Number in Exploded Diagram Price(USD)
1010114840 Main Board ASSY LQVL 1 set
1019903220 Pad Board ASSY LQVL 1 set
101990326 Left Button Board ASSY LQVL 1 set
1019903240
Right Button Board
（ASSY）
LQVL 1 set
1019903140
Accelerometer Board
ASSY
LQVL 1 set
621030064 Film Switch
9091-0121-K MK46_FSR_Film
Sensor_V02_160108
1pcs
628060211 FFC Cable
18PIN L=50mm PH1.0mm two
side with 5mm stiffening plate
conductor with 3mm
1pcs
628072056
Blue and White Flat Cable
with Cathode Plug in both
sides
L=450mm UL2468 24AWG
Both sides with 8pin/2.54 anti-
drop cathode plug Cathode
plug in different sides
1pcs
628072057
Blue and White Flat Cable
with Cathode Plug
L=360mm UL2468 24AWG
One side with 2PIN/2.0 anti-
drop cathode plug Another
side with 4pin*2.54 Contact
Pin
1pcs
628072058
Color Flat Cable with
Cathode Plug
UL1007 26AWG One side with
2pin/2.54 anti-drop cathode
plug L=80mm for Red
L=300mm for Black Another
side strip and tin
1pcs
6280720610
Computer Flat Cable with
Cathode Plug
L=100mm UL2651 28AWG
Both sides with 2*4PIN/2.0
cathode plug Cathode plug in
different sides
1pcs
6280720620
Computer Flat Cable with
Cathode Plug
L=300mm UL2651 28AWG
Both sides with 2*4PIN/2.0
cathode plug Cathode plug in
different sides
1pcs
6280720630
Computer flat Cable with
Cathode Plug in both
sides
L=380mm UL2651 28AWG
Both sides with 2*10PIN/2.0
cathode plug Cathode plug in
different sides
1pcs
PCB Parts

Alesis Vortex Wireless 2 Specifications

General

Product color	Black, White
Volume control	Touch
Knobs color	Black
Control type	Buttons, Sensor
Number of pads	8
Backlight color	Multicolor
Backlight buttons	Yes
MIDI-keyboard number of keys	37 keys
Interface	USB
Bundled software	Hybrid 3, Loom 2, Vacuum Pro & Xpand! 2 from AIR Music Tech, TimewARP 2600 from Way Out Ware & Ableton Live Lite
Battery type	AA
Number of batteries supported	4
Minimum RAM	4000 MB
Minimum processor	Dual Core 2GHz, Intel Core i5/i7
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.8 Mountain Lion
Windows operating systems supported	Windows 7
