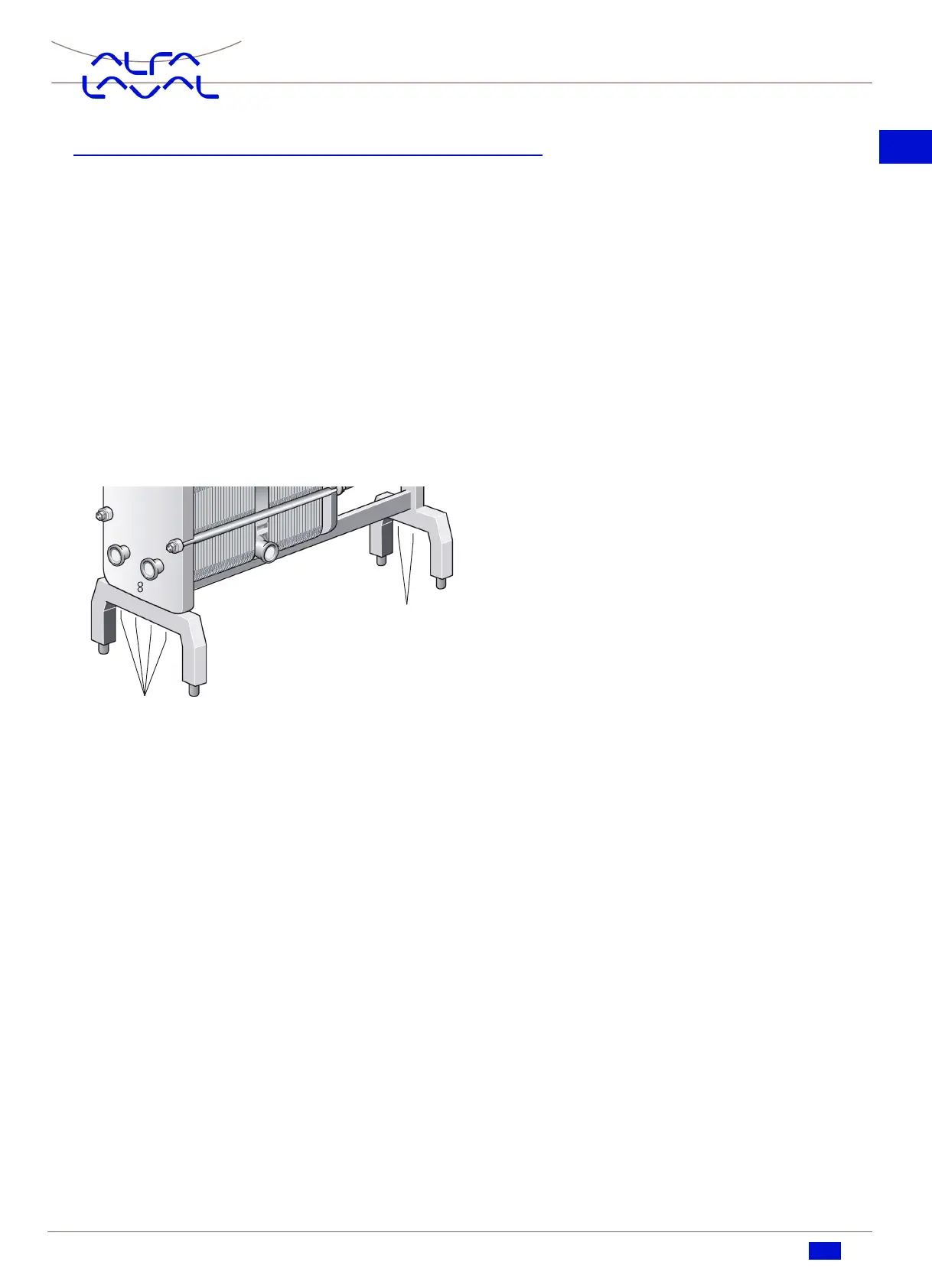

Mount of stands
Some models of PHE are delivered without the
stands mounted. Follow the instruction below.
1
At delivery cover plates are attached on the
frame plate and supporting column at the
same positions where the stands shall be
mounted.
2
Remove the screws, washers and nuts and
remove the cover plates.
3
Use the same screws, washers and nuts to
assemble the stands on the PHE according
to picture.
Four screws, and washers
Two screws, nuts and four washers
