Function
The Plate Heat Exchanger (PHE) consists of a pack
of corrugated metal plates with port holes for input
and output for the two separate fluids. The heat
transfer between the two fluids will take place
through the plates.
The plate pack is assembled between a frame plate
and a pressure plate and compressed by tightening
bolts. The plates are fitted with a gasket which seals
the channel and directs the fluids into alternate chan-
nels. The plate corrugation promotes fluid turbulence
and supports the plates against differential pressure.

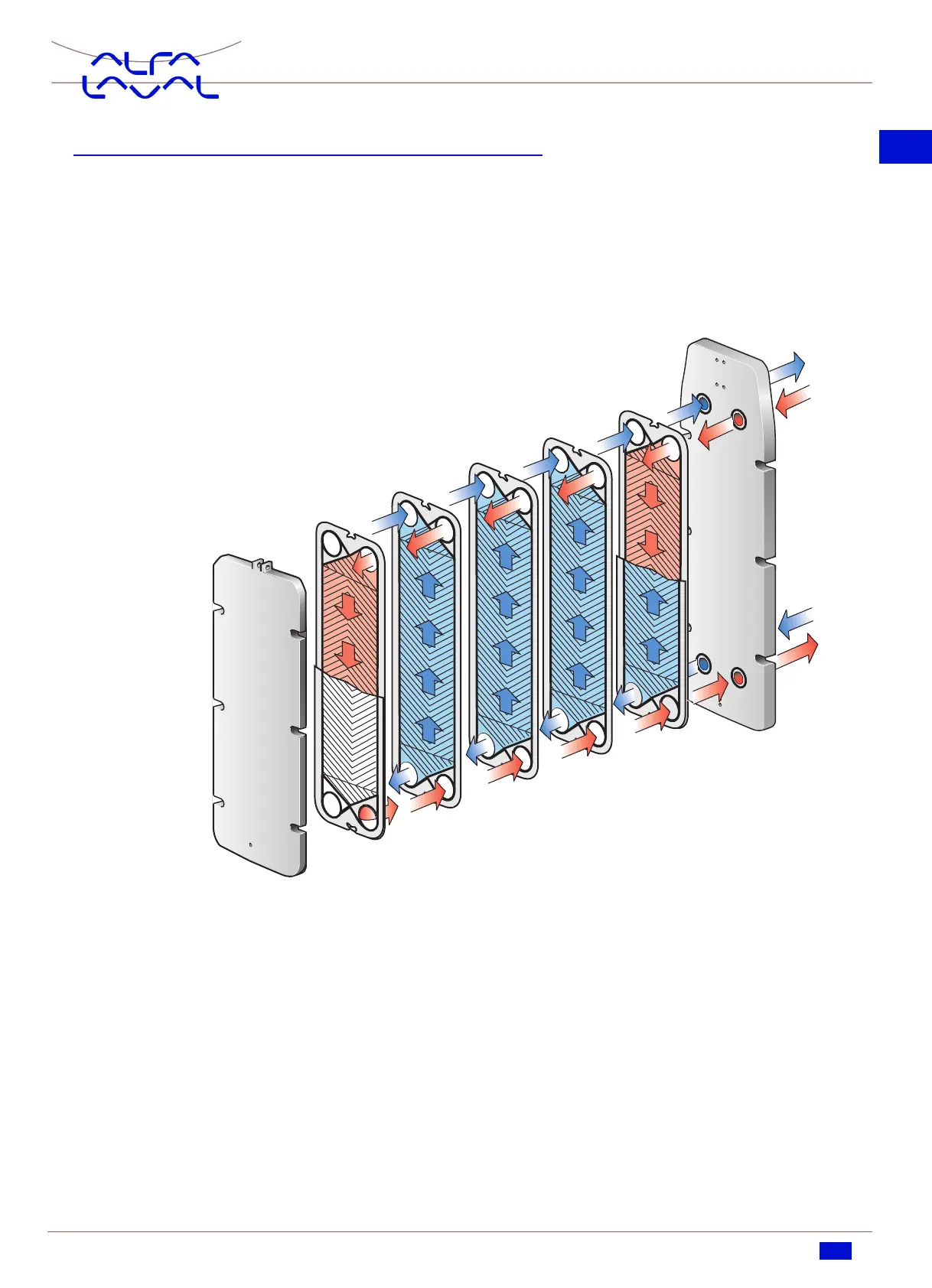

Principle of plate pack arrangement
Frame plate
Pressure plate
Gaskets facing the pressure plate
