25
Drawing/Parts list

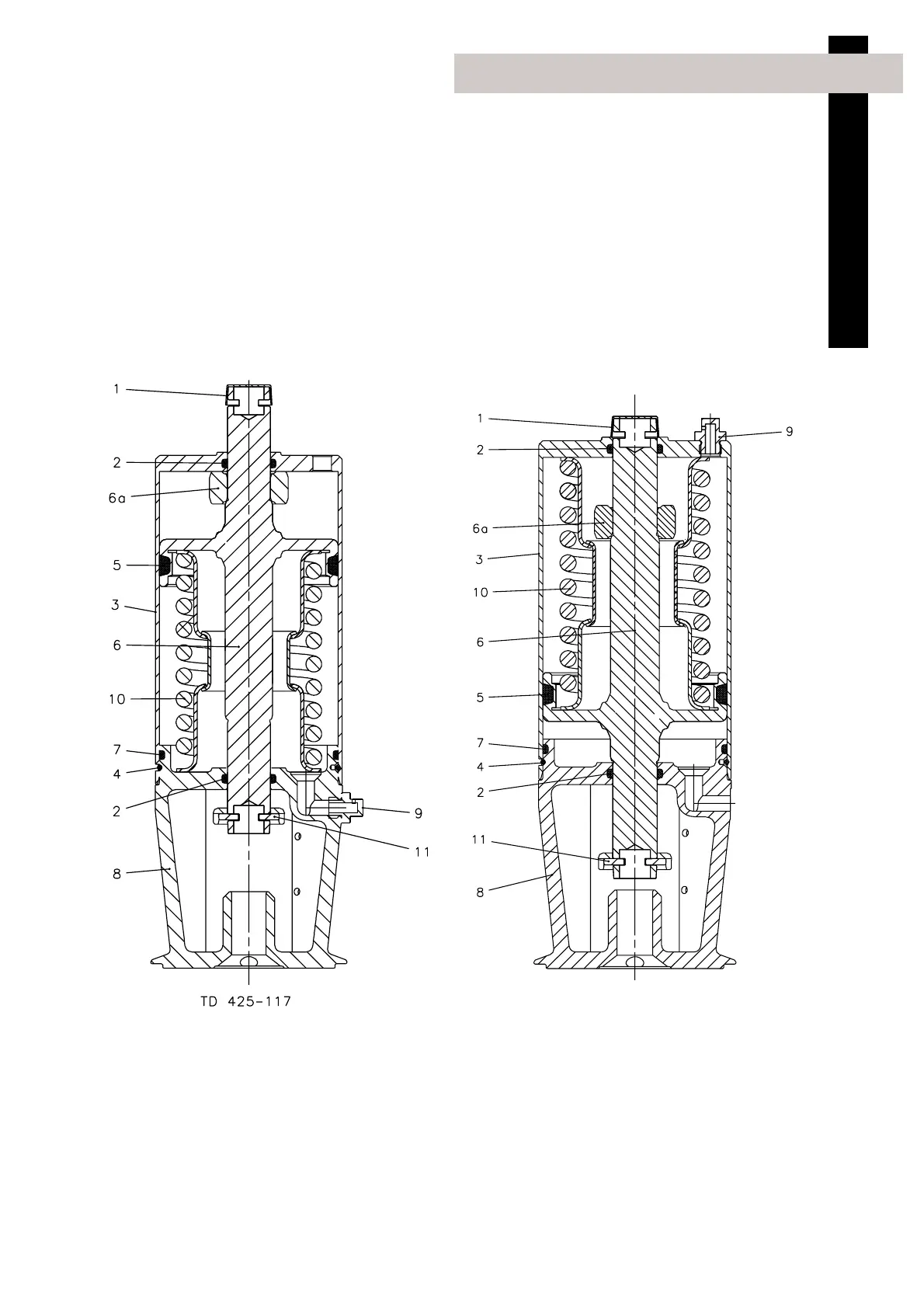

The drawing below shows an SRC actuator for 25mm
stop valve.
The items refer to the parts list on the opposite part of the
page.
SRC Stop valve 25 mm NO
SRC Stop valve 25 mm NC
Warning: When changing from NC to NO please
note that the actuator is spring-loaded. For safety,
place a "Spring-loaded" warning label (ordered
from Technical Support at Alfa Laval) on the valve.
