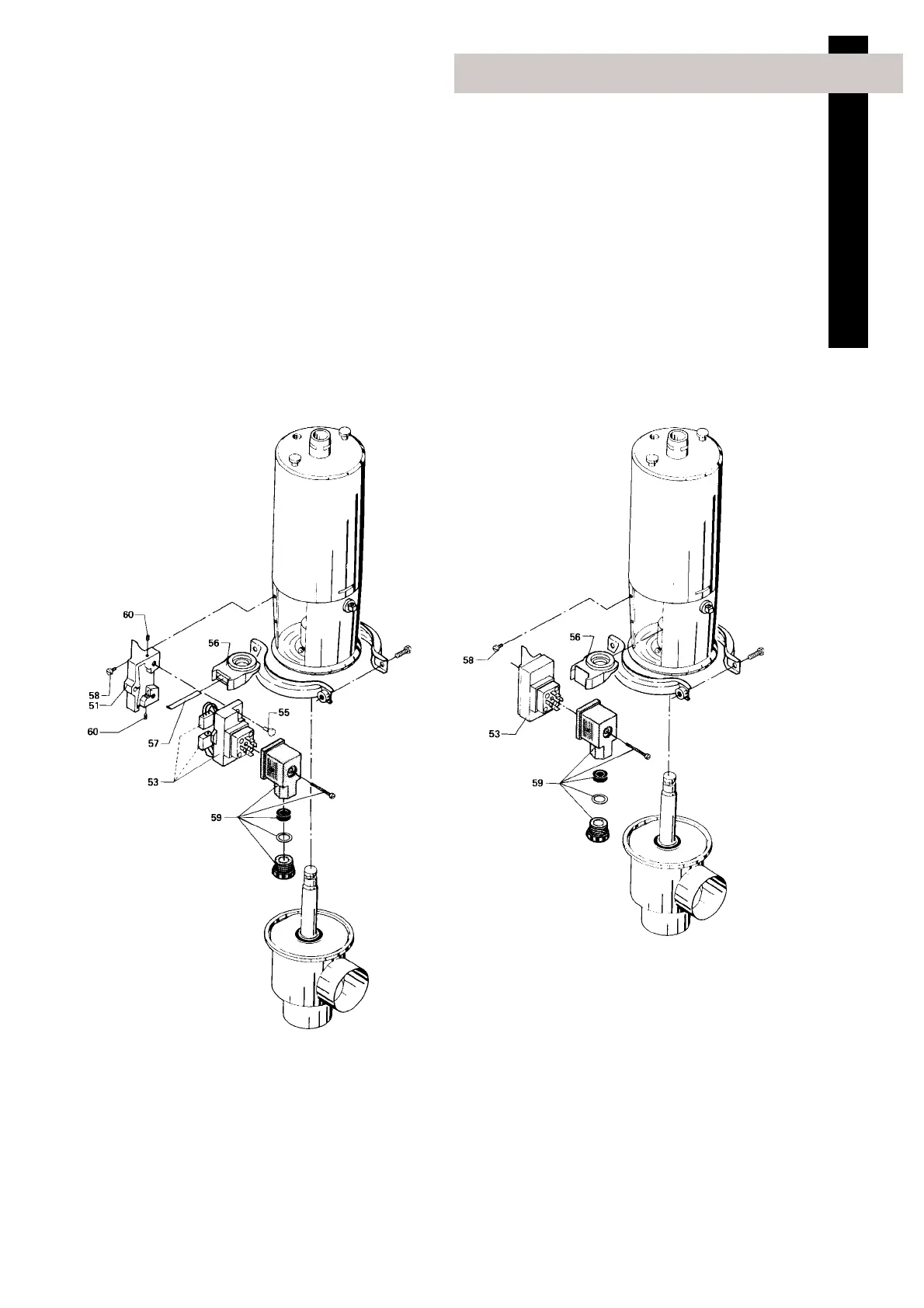

Exploded drawing
Drawing/Parts list
This page shows exploded drawings of the indication
unit with micro switch or with inductive proximity switch.
The indication unit is an optional extra.
The drawings include all items of the valve.
They are identical with the items in the Spare Parts List.
Micro switch unit
Proximity switch unit (¨)
