3.6 Seat lift sensor installation
This section is relevant for V70 variants where feedback for the upper seat lift function in a double
seat valve application is required. The parts referred to in this section are available as a seat lift
sensor kit. Y
ou will need an adjustable spanner or flat wrenches in the following sizes for this
installation: 12, 14, 15 and 17 mm.

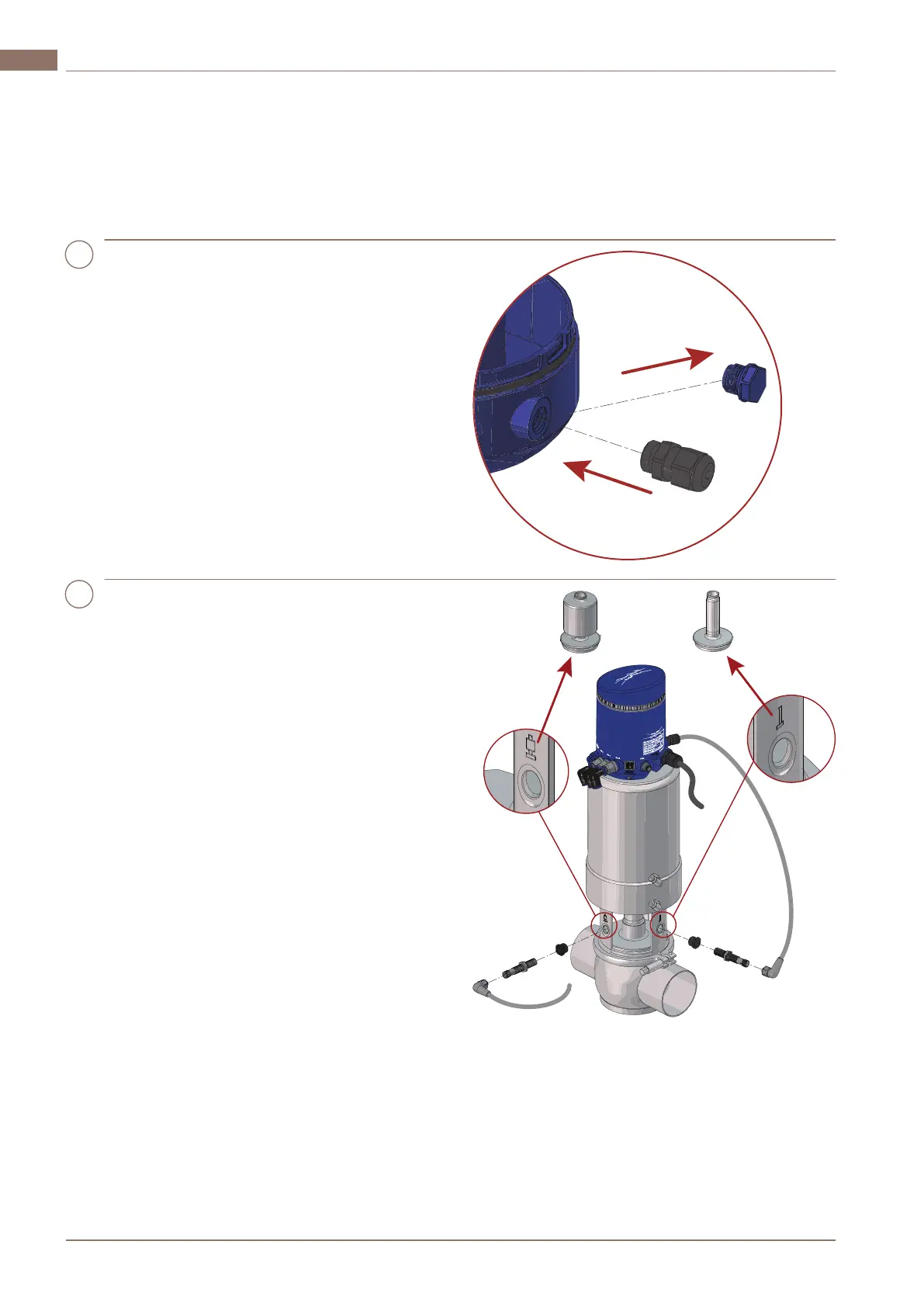

1
Remove the blue plug in the ThinkTop
housing with a 14 mm flat wrench.
Fasten the seat lift sensor cable gland to the
ThinkTop housing with at 15 mm flat wrench
(1.5 Nm).
Fit the sensor cable in the cable gland.
Connect the wires to the seat lift sensor
terminal according to the colour codes noted
next to the terminals.
Fasten the cable gland nut with at 15 mm flat
wrench (1.5 Nm).
2
Fit the black bushing in the relevant hole in
the valve yoke.
(The icons on the yoke refer to the shape of
the valve plug.)
(The bushing will be fastened together with
the sensor nut in step 7)
200000549-1-EN-GB16
3 InstallationEN
