5.4 Tips and Tricks
Aligning feedbacks by rearranging solenoid valve plugs
For example, if you are setting up a ThinkT
op with 2 solenoid valves on a double seat valve with only
the lower seat lift function installed.
Due to the 2 SV ThinkTop comes with SV1 (main) and SV2 (USL) you will find that after you have
done the setup that the actual lower seat position of the valve is keyed to the feedback labelled USL
and the related blue colour.
The lower seat position can be aligned to the feedback labelled LSP by moving the solenoid valve 2
plug from header 2 to header 3, and then run Auto Setup.

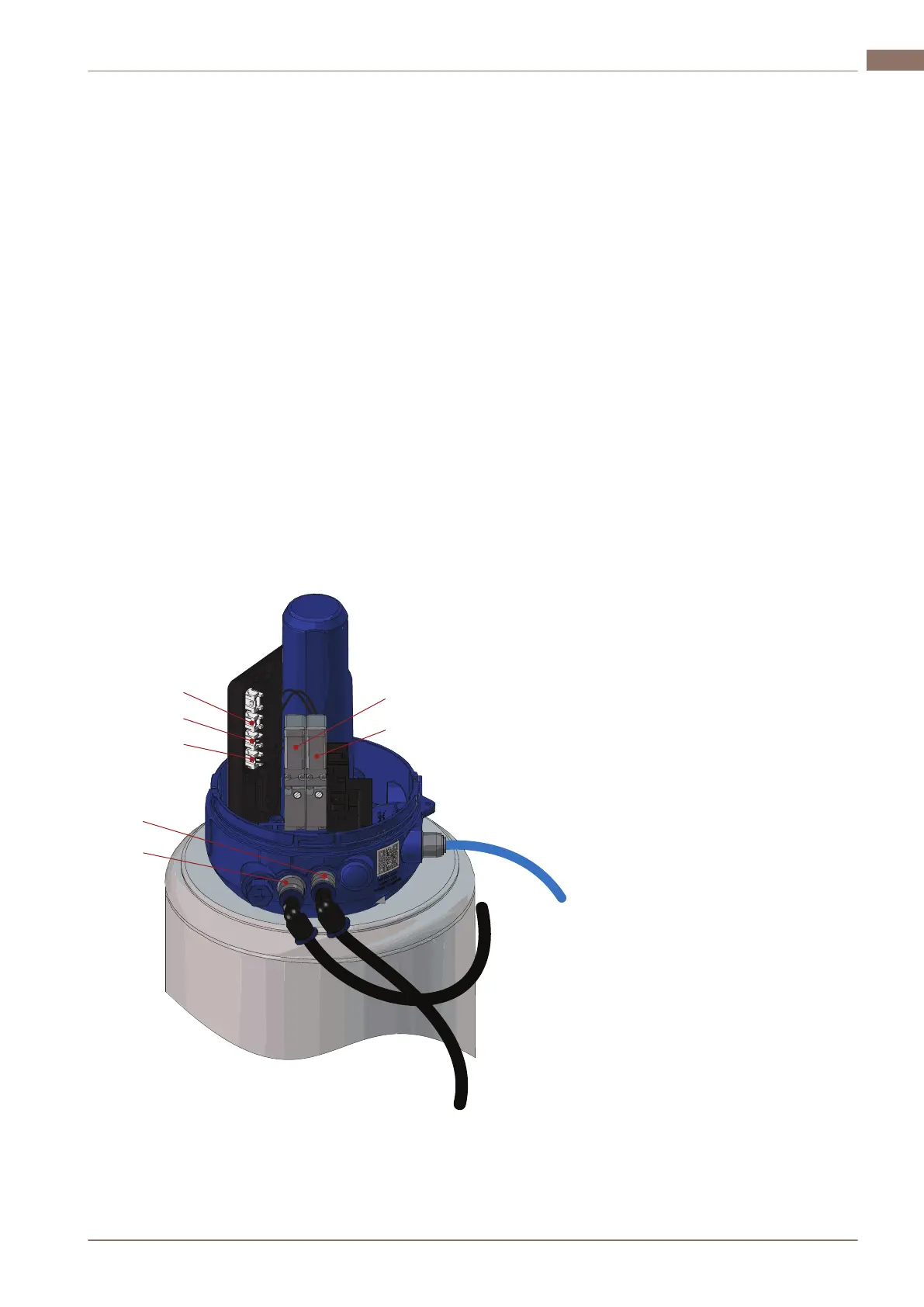

Additionally, if you want the air hoses to also be parallel in this application then rearrange the solenoid
valve plugs like this:
• SV1 plug to SV3 header (H3)
• SV2 plug to SV1 header (H1)
• Arrange the 2 air hoses parallel (Main valve will be connected to air Out2)
• Then run Auto Setup
Instruction video can be found on the ThinkTop product page.
2066-0081
H3
H1
H2
Out1
Out2
SV2
SV1
200000549-1-EN-GB 29
Troubleshooting 5 EN
